Bell 206L-1 User Manual

Document Number
121-044-00
Page
8 of 15
Rev. 0
Bell 206L/407 Cargo Hook Kit
Rotorcraft Flight
Manual Supplement
FAA Approved
2. NORMAL PROCEDURES continued

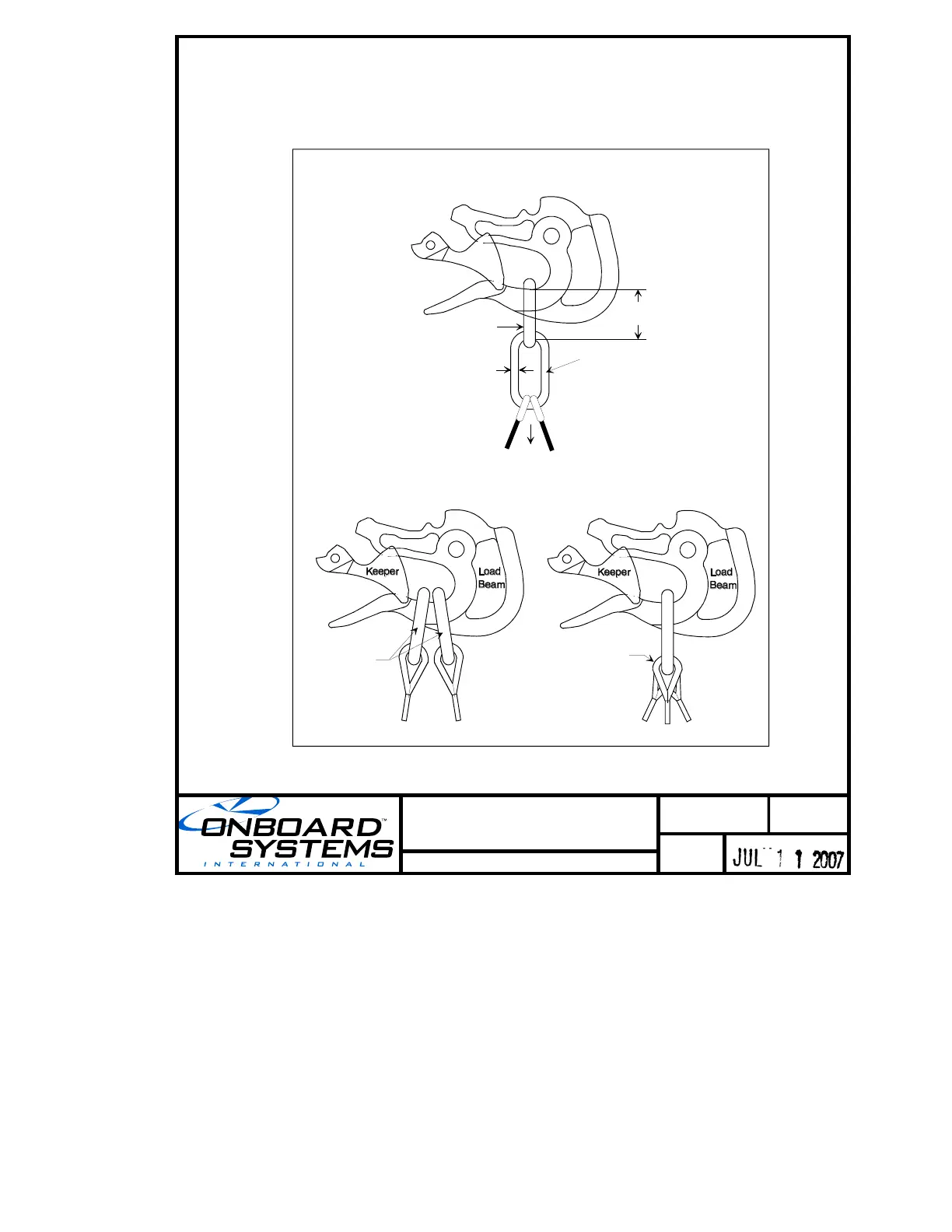

Figure 1
Secondary Ring or Shackle
5/8" Max. cross section
Load
Primary Ring
Incorrect Rigging
Incorrect Rigging
Correct Rigging
Multiple Rings
on Load Beam
Multiple Rings
on Primary Ring
1.50"
Primary Ring I.D.
1.87"
