Bell SKIPPER Series - Steps 3-6: Lower Bracket Mounting

ITEM # 19
6mm Nylock
Nut
ITEM # 20
6mm Split
Lock Washer

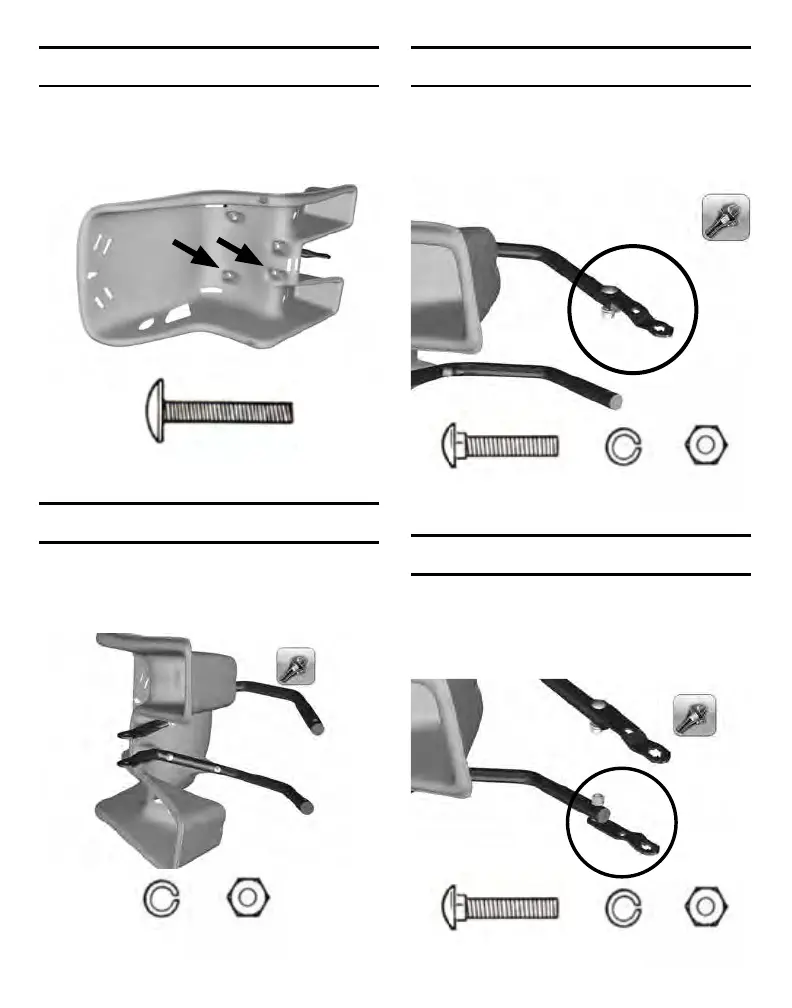

Insert (2) 6mm by 35mm round head square neck
bolts into the right (2) holes in the bottom of the seat.
While holding the bolts rmly in place, fasten the
right seat supports to the bottom of the plastic
seat using (2) 6mm split lock washers and (2) 6mm
Nylock nuts.
Attach the long lower bracket to the bottom of the
seat support using an 8mm by 30mm round head
square neck bolt, an 8mm split lock washer and an
8mm Nylock nut. Be sure that the bolt head faces
outward and the lock washer is in place.
Attach the long lower bracket to the bottom of the
seat support using an 8mm by 30mm round head
square neck bolt, an 8mm split lock washer and an
8mm Nylock nut. Be sure that the bolt head faces
outward and the lock washer is in place
STEP 3
STEP 4
STEP 5
STEP 6
ITEM #18
6mm x 35mm
ITEM #21
8mm x 30mm Round
Hd. Sq. Neck Bolt
ITEM #21 8mm x 30mm
Round Hd. Sq. Neck Bolt
ITEM #23
8mm Nylock
Nut
ITEM #23
8mm Nylock
Nut
ITEM # 24
8mm Split Lock
Washer
ITEM # 24
8mm Split Lock
Washer
