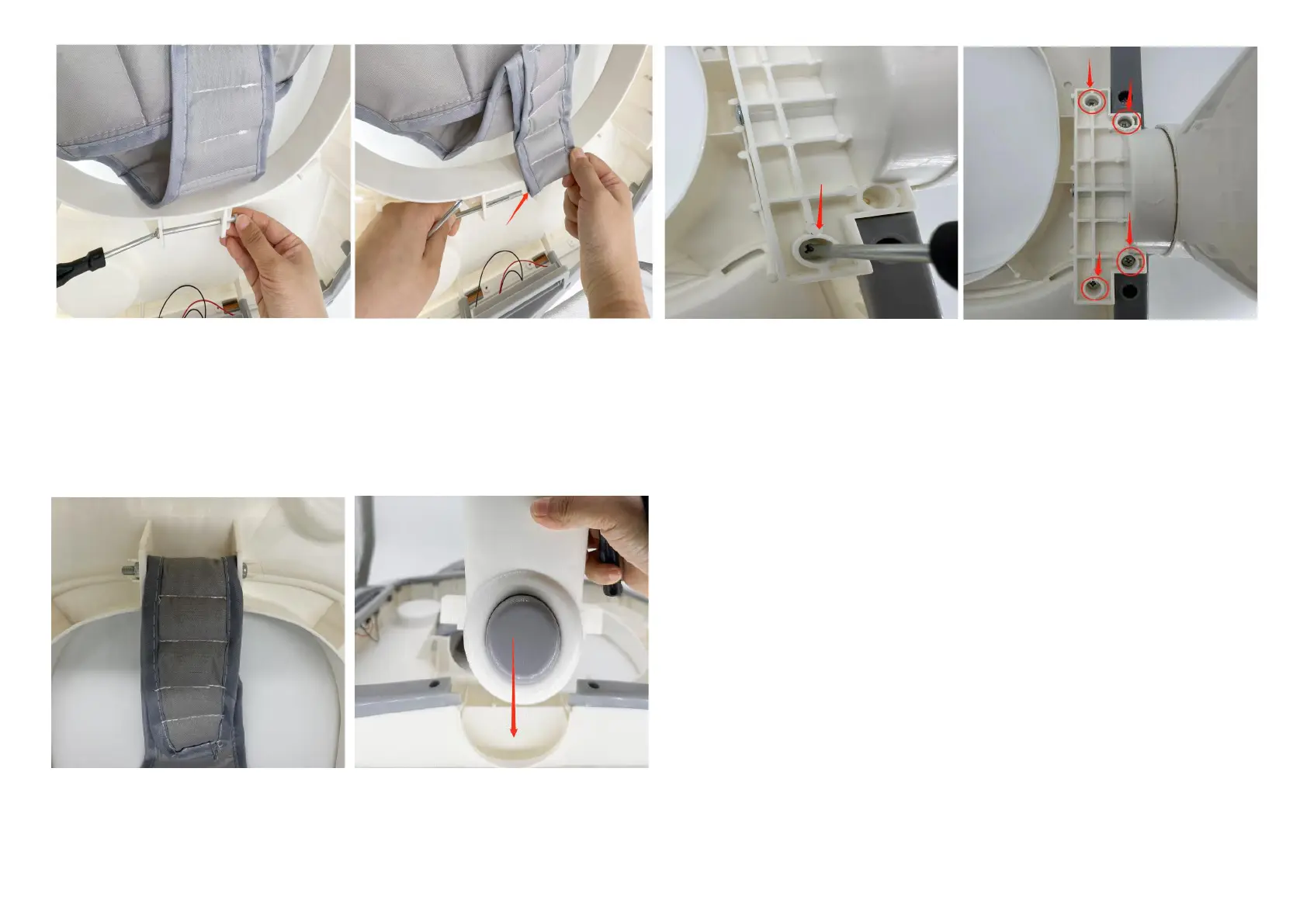

7. Unscrew the long bolt under the
top tray.
8. Insert the strap at the front of
the pad into the screw slot, then
push the bolt through the hole in
the strap. (Note: there are 5 holes
in the padded straps, so this can
be adjusted based on the child’s
needs).
9. Screw the bolt back in and
tighten to hold the strap in
place at the preferred length.
10. Keeping the back of the top
tray facing up, align the legs with
the semi-circular slots on either
side of the top tray, and insert.
11.Place screws in each of the
four holes on the inner side of
each leg and affix using a
screwdriver.
12. Ensure all attached
components are firmly secured.
2. Base Assembly Instructions:
Parts required:
3. Musical play tray; 4. Walker base; 5. Flywheel; 7.
Step brakes (x 2); 8. Universal wheels (x 4); 9. Bumper; 10. Screws (x
8); and 11. Screwdriver
