16
Bellfires
English
Instructions for use and installation instructions
2.5.4 Operation (Hand control)
In an emergency it is possible to operate the appliance manually. To do so, the ignition
(piezo) cable must first be removed and transferred carefully to the piezo connector on
the gas control block.
Motor-Knob
(in maximum position)
Microswitch
Operating Knob
(in Position for
Manual Ignition)
Metallic Core for Manual Ignition
(recessed switch)
Connection Piezo Igniter
(only for MANual control)
Piezo button
(only for MANual control)
ON/OFF Switch
8 Wire
Receiver Jack

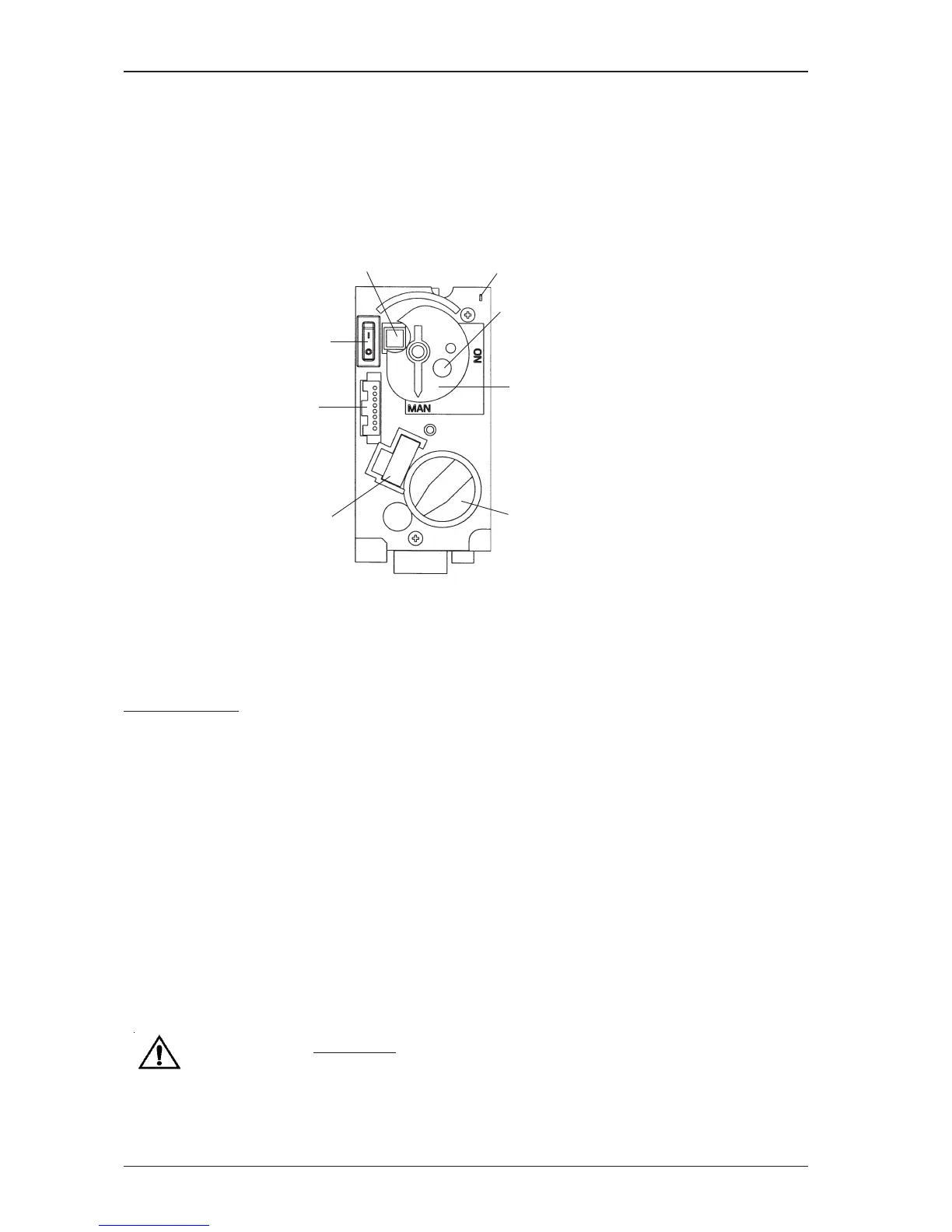

Figure 5: Gas regulating block; Operating Knob in MAN-position
Igniting the fire
l Open the gas supply valve in the gas pipe to the fire.
l Switch the “O I” switch on the gas regulating block to the “I” position.
l Turn the motor-knob on the gas regulating block as far as it will go in a clockwise
direction. The switch will audibly ‘click’.
l Turn the operating knob on the gas control block to the MAN position. A recessed
switch within the knob will become visible.
l Press the recessed switch. Use a pen or similar instrument to do this.
Gas will now flow to the pilot light.
l While holding down the recessed switch, press the (square) piezo button several
times (the piezo button is alongside the “O I” switch) to ignite the pilot light.
Check whether the pilot light has been lit through the glass.
l Once the pilot light is lit, the recessed switch must be kept down for a further ten
seconds, after which it can be released.
Important: If the pilot flame goes out, then wait for
at least 5 minutes before repeating the
above procedure.
