Appliance: Distance X Distance Y
(min.-max.) (min.-max.)
All appliances,
0 - 0,6 m 0,5 - 1,0 m -
except…
0 - 3,0 m 1,0 - 3,0 m -
... Derby
Derby II
0 - 0,6 m 1,0 - 2,0 m -
Jersey
0 - 3,6 m 2,0 - 3,0 m -
Horizon Bell Medium
... Horizon Bell Small (tunnel) /
0 - 3,0 m 1,5 - 3,0 m -
Large (tunnel) / XL
... Vertical Bell Small
0 - 0,6 m 0,5 - 1,0 m -
0 - 3,0 m 1,0 - 3,0 m -
... Vertical Bell Tunnel
0 - 1,6 m 0,0 - 1,0 m -
0 - 3,0 m 1,0 - 3,0 m -
1
4
23
10, 11, 12, 13
23
X
Y
28
Wall
Termination
Position
Item descriptions:
see 3.4.2
RIGID CONCENTRIC FLUE Ø100 mm - Ø150 mm SYSTEM CONNECTION
POSSIBILITIES
0,16 m

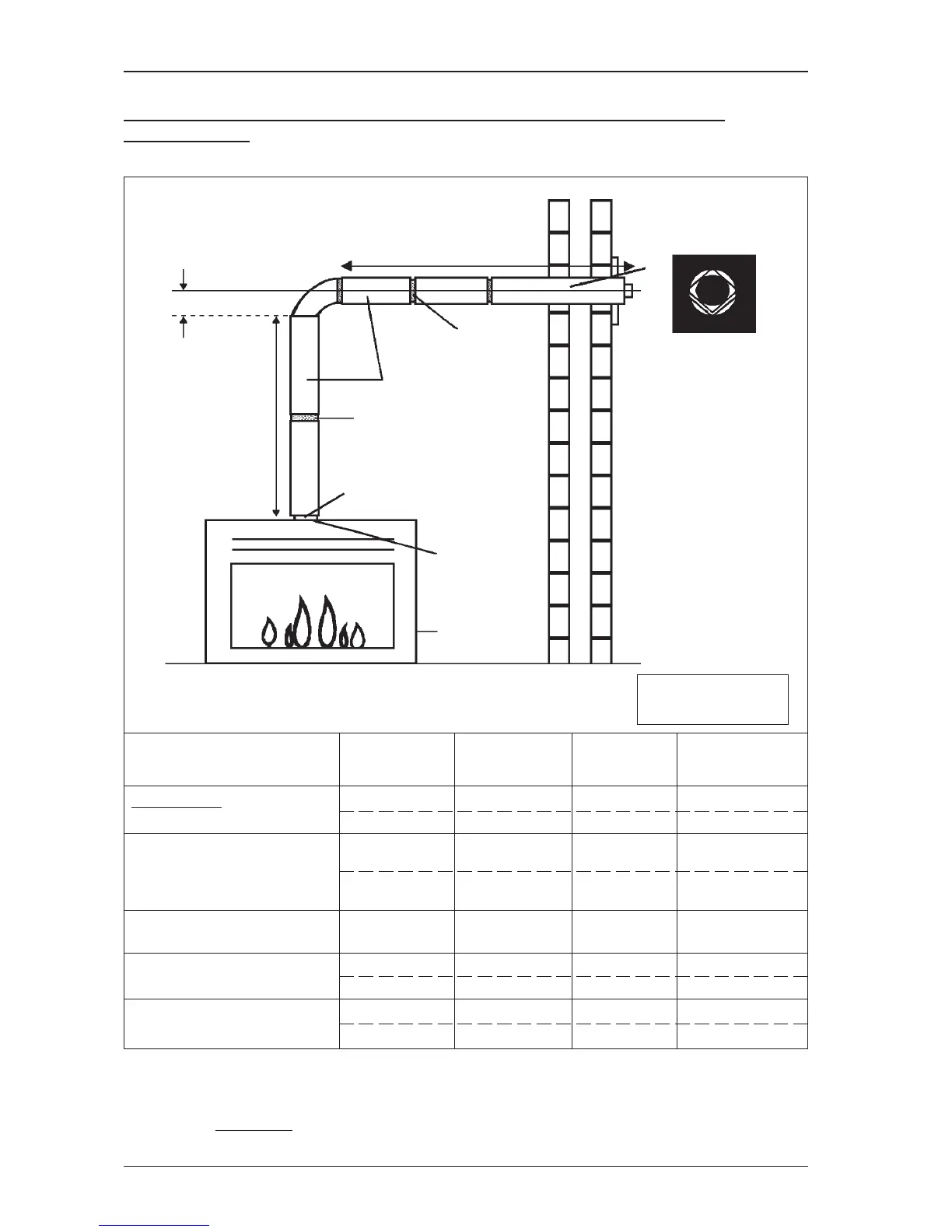

Figure 9: Horizontal wall termination
ALL SIZES INCLUDE THE LENGTH OF THE ROOF OR WALL TERMINATION
Assemble
restriction plate
