INSTALLATION INSTRUCTIONS - DUAL FUEL
PRODUCTS WITH CAST IRON LID
(WHERE FITTED)
A 55mm clearance is required from the
back of the hotplate to the rear wall, to
allow the lid to be opened fully. To ensure
thisclearanceismaintained,theinll
piece(supplied)shouldbettedusingthe
instructions below.

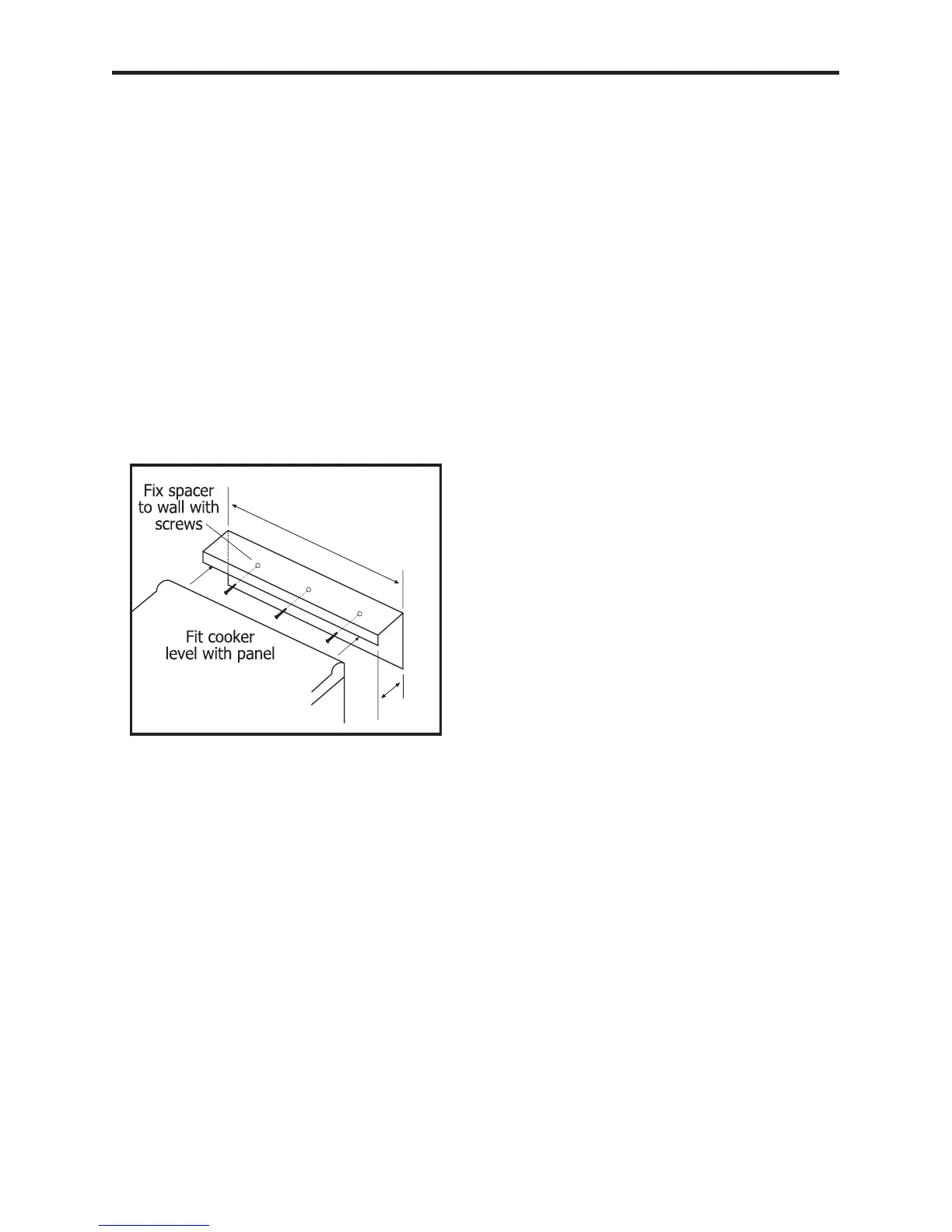

Fixtheinllpiecetothewall-usingsuit-
ablescrewsandwallxings(notsupplied)
- and ensure it is level with the hotplate
as shown.
Note:The55mmclearancedimension
should not be reduced.
550mm
55mm
