Belling IDW450MK2 - Dishwasher Installation Steps

5
4
6
2
RUBBER
SCREW
COVER
7
SCREW
CONEGEAR
5B
1
5A

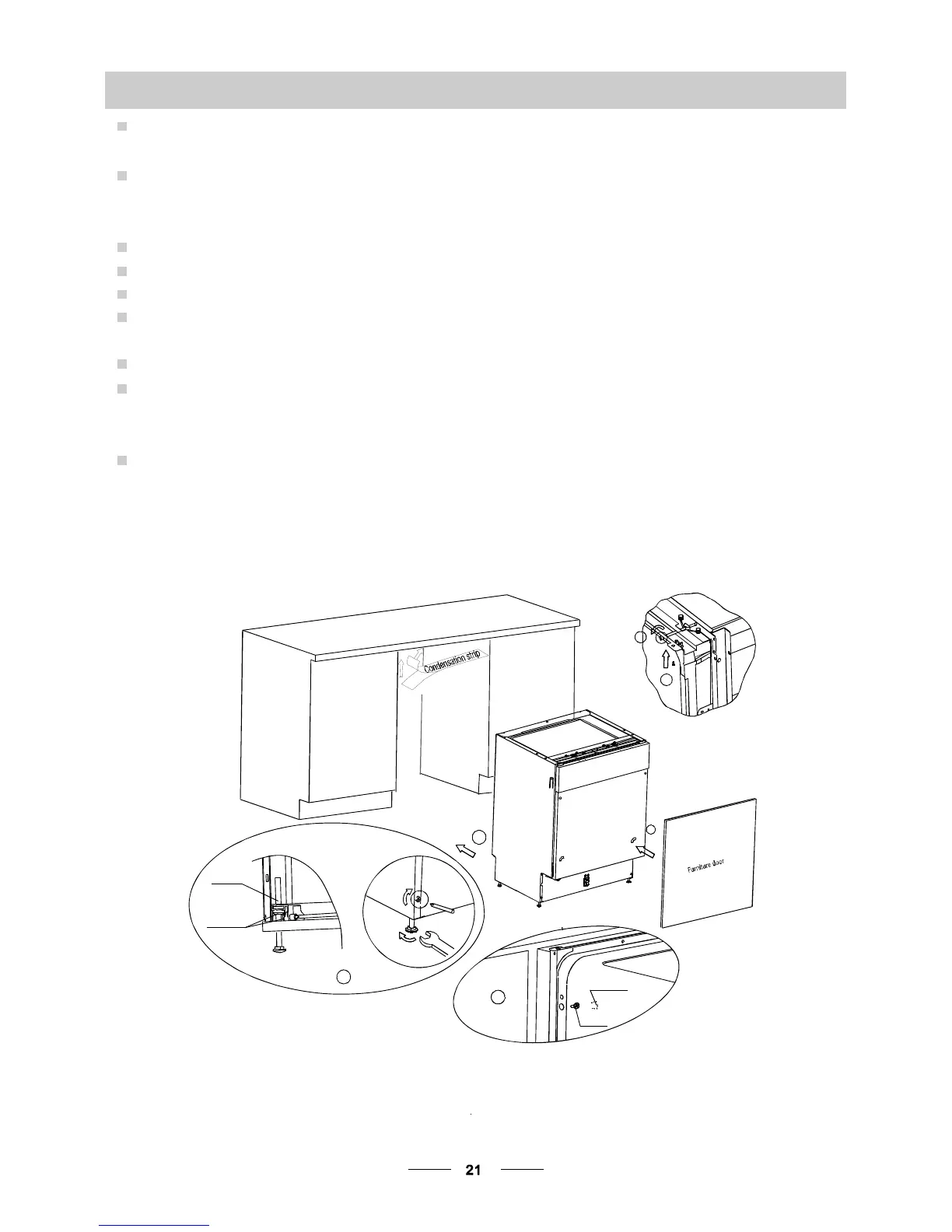

【】Figure 7
Dishwasher installation steps
●
1
2
.
3.
4.
5.
6
7
8
Install the furniture door to the outer door of the dishwasher using the bracket s prov ided. Refer
to the template for positioning of the brackets.
Adjust the tension of the door springs by using anAllen key tu rning in a clockwise motion to
tighten the left and right door springs. Failure to do this could cause damage to your dishwash er
(Illustration 2)
Connect the inlet hose to the cold water supply
Connect the drain hose. Refer todiagram (Figure 6)
Connect the power cord
Affix the condensation strip under the work surface of cabinet. Please ensure the condensation
strip is flushwith edge of work surface.
Place the dishwasher into position.
Level the dishwasher. The rear feet can be adjusted from the front of the dishwasher by turning
the screws on the left and right hand side of the cabinet (Illustration 5A). To adjust the front feet,
use a w rench and tu rn the front feet u ntil the dishwasher is level (Illustration 5B).
9 The dishwasher must be secured in place. There are two ways to do this:
A. Normal work surface-secure to the work surface by using two woodscrews ensuring the
dishwasher weight is not being hit by the surface (Illustration 6 ).
B. M arble or granite work top -secure the br acket to the side panel of the dishwasher and secure
the dishwasher to the furniture housing. Put the rubber cap over the screw (Illustration 7).
