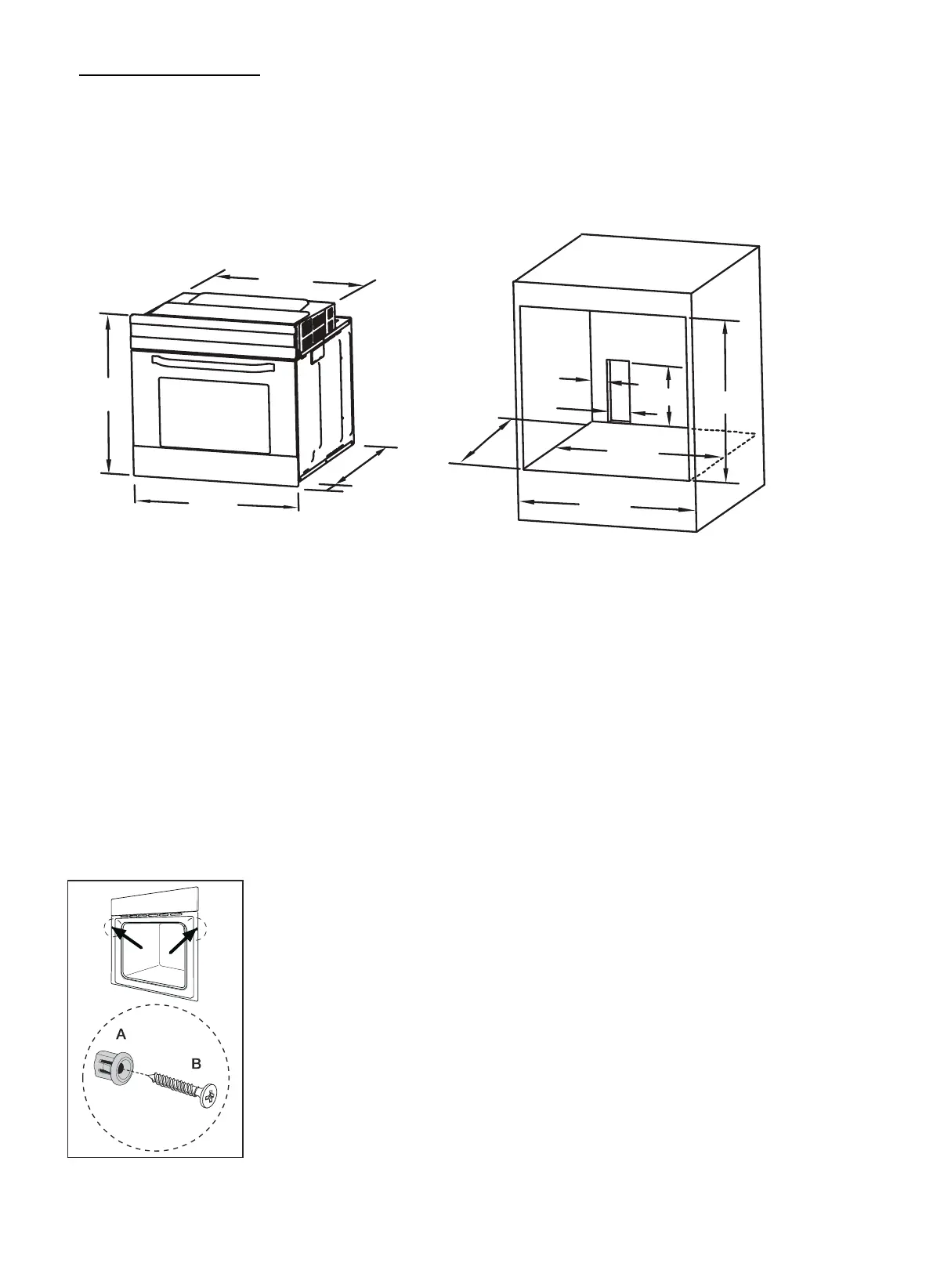

Cut-out dimensions
Secure the oven to cabinet
Fit oven into the cabinet recess.
Open the oven door.
Secure the oven to the kitchen cabinet with two distance holders "A" which fit the holes in the oven frame
and fit the two wood screws "B".
NOTE: The number of a accessories included depends on the particular appliance purchased.
Remark:
1.Only plus deviations are admissible for all dimension.
2.The cabinet is not include the power switch or socket.
GSM Sales Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust OR 0508123108 NZ www.belliniappliances.com.au
Model: BOM609CX FINELINE:5103646 Aus Only 60Cm Electric Oven INCLUDED IN BUILDERS PACKS
Hard Wired Appliances :
When making the mains supply conductor connections to the terminal block within the terminal box , please
ensure that minimum clearances are being maintained between individual conductors and conductors/
connectors to the adjacent metal surfaces of the terminal box itself , where possible add heat shrink sleeves to
any bare conductor end/connectors prior to securing.
555
20
595
595
560
570
min.
560
606
600
80
250
100
