1150-003
INVERTER MULTI-PROCESS WELDER KIT
18

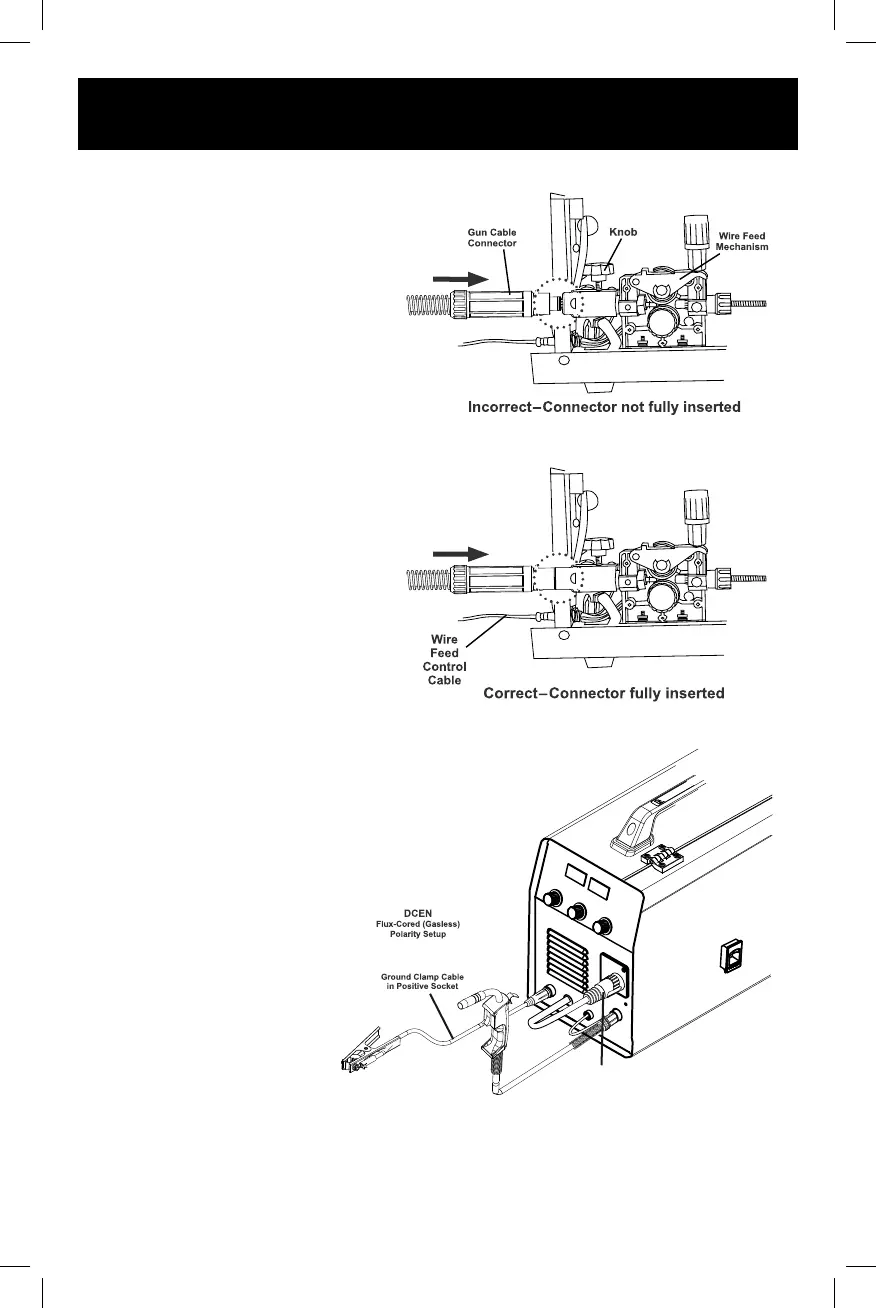

13. Loosen the Knob on the Wire
Feed mechanism, then insert
the Gun Cable Connector
through the hole on the Welder
front and into the socket on the
Wire Feed.
14. Ensure that the Gun Cable
Connector is fully inserted into
the socket on the Wire Feed
mechanism as shown, then
tighten the Knob securely. If
Connector is not fully inserted,
the gas connection will leak,
preventing shielding gas from
reaching the welding arc.
NOTICE: To prevent damage,
do not overtighten the Knob.
15. Insert the Wire Feed Control
Cable into the socket on the
welder front, then tighten the
lock ring on the Cable plug.
Note that the plug on the
Cable fits into the Socket in
one specific orientation only.
16. DCEN direct current
Electrode negative Wire
Setup for Flux-cored
(gasless) welding:
Plug Ground Clamp Cable
into Positive (+) Socket.
Plug polarity switch cable
into Negative (–) Socket.
Twist cables clockwise all
the way to lock in place.
polarity
