Benchmark 1150-003 - Feed Roller and Wire Setup

17

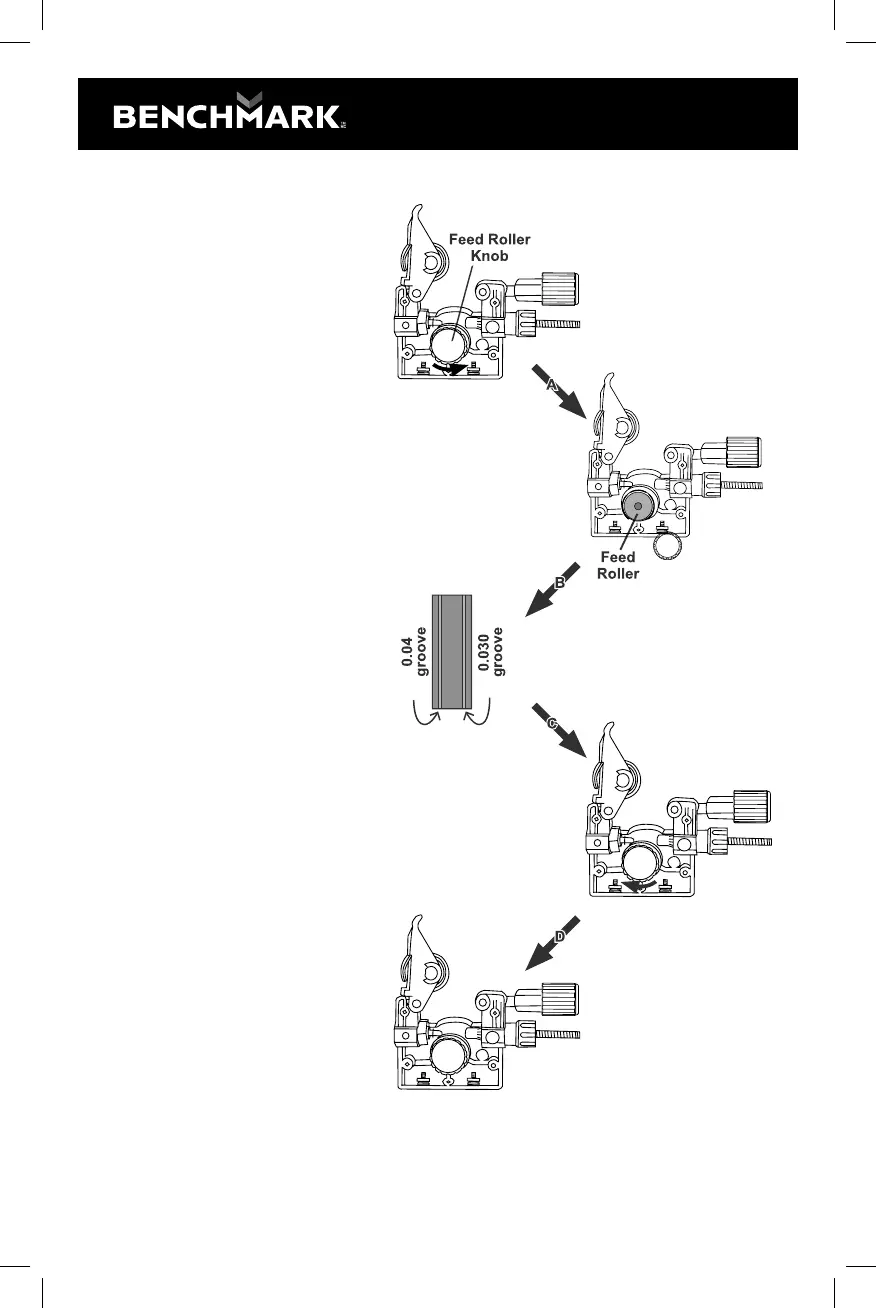

12. Feed Roller instructions:
Check that the Feed Roller
is correct for the type of wire
being used (solid core or flux-
cored) and that it is turned to
properly match the wire size
marked on the Wire Spool:
a. Unscrew the Feed Roller Knob
counterclockwise.
b. Remove the Feed Roller Knob
to expose the Feed Roller.
c. Flip or replace the Feed Roller
as needed and confirm that it
is the correct Roller for the type
of wire being used and that the
number showing is the same
as the wire diameter on the
Spool.
d. Screw the Feed Roller Knob
back into place to secure the
Feed Roller.
