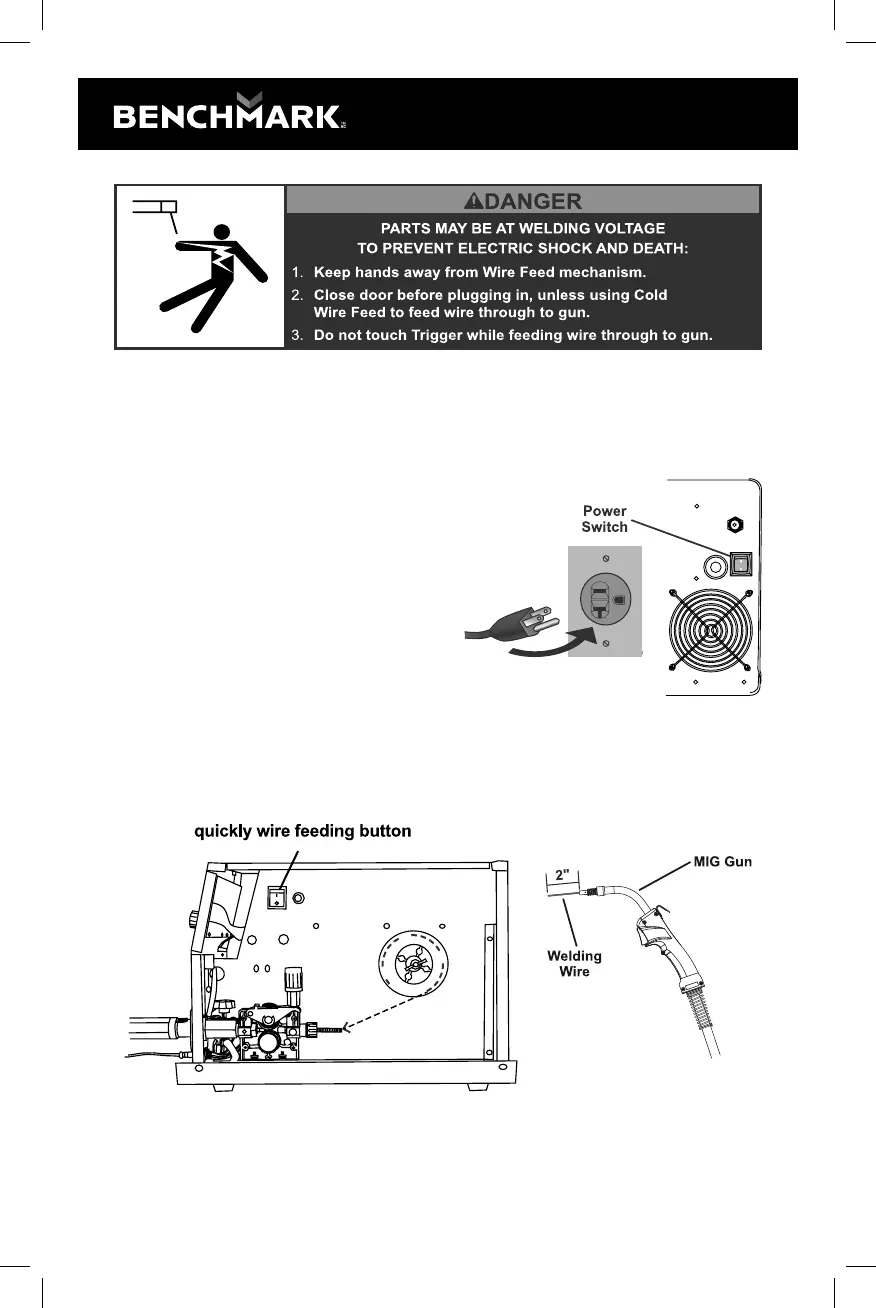

24. Do not touch the Gun’s Trigger. Plug the Power Cord into a properly grounded,
GFCI protected 120 VAC (20 amp rated) or 240 VAC receptacle that matches
the plug and turn the Power Switch ON. The circuit must be equipped with
delayed action-type circuit breaker or fuses.
25. Point the Gun away from all objects. Press
and hold the quickly wire feeding button
until the wire feeds through two inches.
The wire liner may come out with the
welding wire. This is normal, just push
the wire liner back into the gun.
If the wire does not feed properly and the
Spool is stationary, turn OFF and unplug
the Welder and slightly tighten the Feed
Tensioner clockwise before retrying.
