1347-001
20V MAX 7-1/4” SLIDING COMPOUND MITRE SAW
18

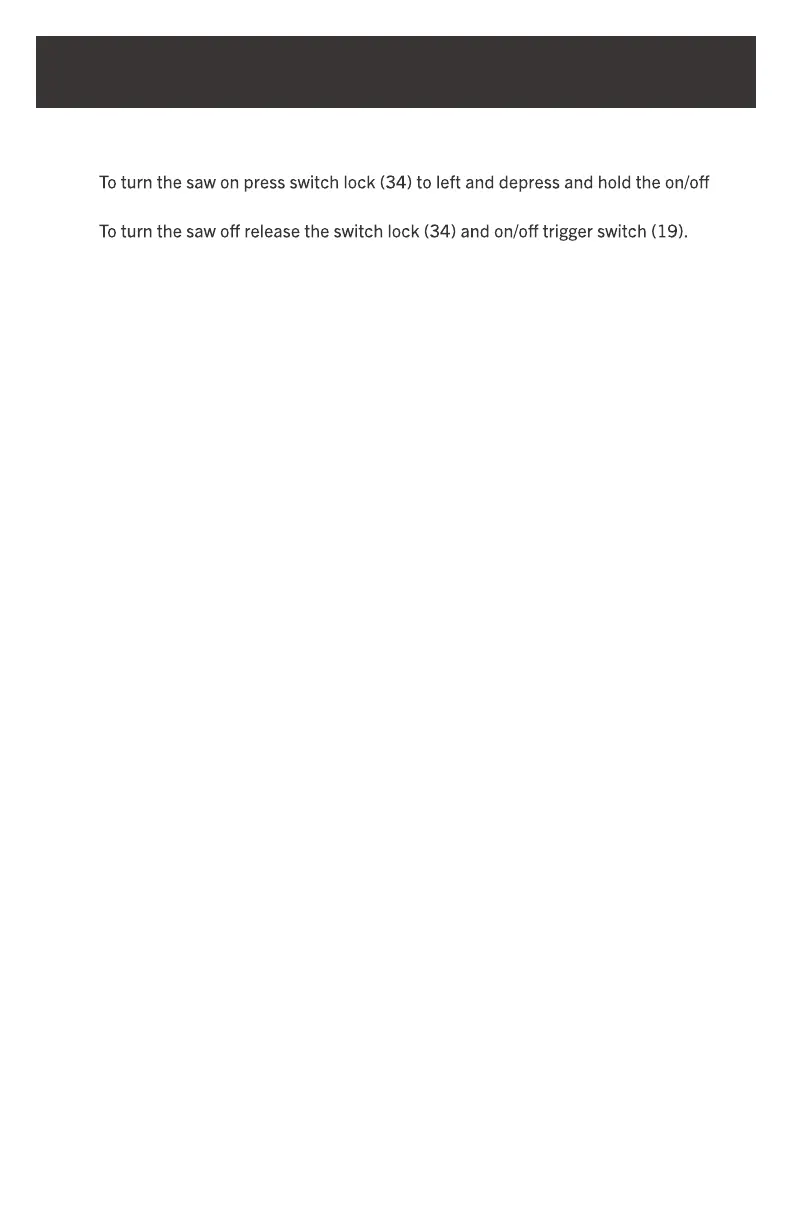

TURNING ON AND OFF
1.
trigger switch (19).
2.
DUST EXTRACTION
1. Fit the dust bag (11) to the dust extraction port.
2. A vacuum dust extraction device can be connected to the dust extraction port.
Use a suitable vacuum adaptor if necessary. The dust extraction port has an
internal diameter of 1-1/2”.
SETTING THE TABLE SQUARE WITH THE BLADE
1. Make sure that the battery is removed from the power point.
2. Push the saw arm (3) down to its lowest position and engage the release
knob (4) to hold the saw arm in the transport position.
3. Loosen the mitre locks (20) and lift the mitre latch (21).
4. Rotate the table (16) until the pointer is positioned at 0°.
5. Release mitre latch (21) and tighten the mitre locks (20).
6. Loosen the bevel lock (12) and set the saw arm (3) at 0°bevel (the blade at 90°
to the mitre table). Tighten the bevel lock (12).
7. Place a set square against the table (16) and the flat part of the blade.
8. Rotate the blade by hand and check the blade-to-table alignment at
several points.
9. The edge of the set square and the saw blade should be parallel.
10. If the saw blade angles away from the set square, adjust as follows.
11. Use a 10 mm wrench or adjustable wrench to loosen the lock nut securing
the 0° bevel adjustment screw (29). Also, loosen the bevel lock (12).
12. Adjust the 0° bevel adjustment screw (29) using a 4 mm hex key to bring
the saw blade into alignment with the square.
13. Loosen the Phillips head screw holding the pointer of the bevel scale (13)
and adjust the position of the pointer so that it accurately indicates zero on
the scale. Retighten the screw.
14. Retighten the bevel lock (12) and the lock nut securing the 0° bevel
adjustment screw (29).
