15
5140-011
212CC/4-CYCLE GAS REAR TINE TILLER

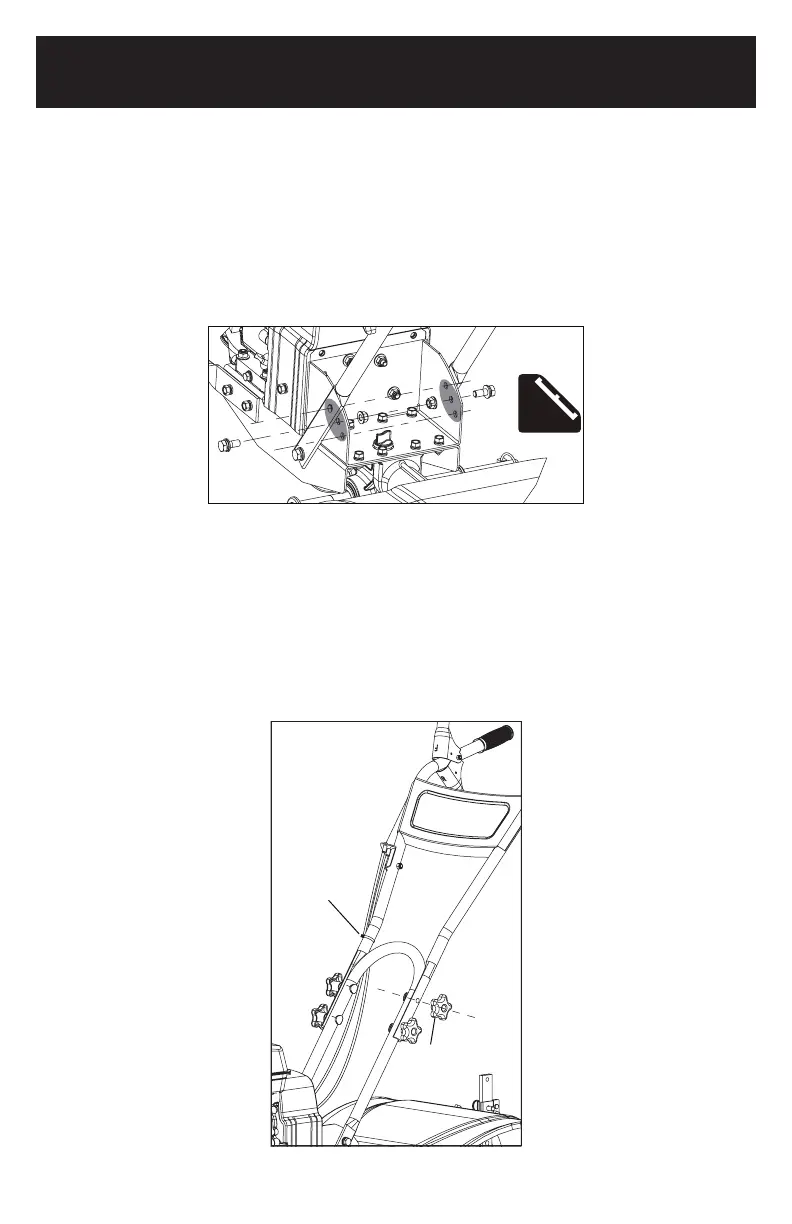

ATTACHING LOWER HANDLE
1. Loosen the lower handle bolts, if required.
2. Align the lower handle holes to the middle height adjustment holes in the
transmission cover and install the M10 X 25 mm bolts, lock washers, lash
washers and nuts. Tighten all four bolts at this time.
NOTE: There are three holes for handle height adjustment to help get the desire
handle height for operation.
Handle
height
adjustment
ATTACHING UPPER HANDLE
1. Slide the upper handle down over the lower handle and align the holes.
2. Insert the saddle bolts into the holes as shown and secure with the handle
knobs.
3. Tighten the handle knobs securely.
4. Secure control cables to handle using cable tie.
Handle knob
Cable tie
To Next Page
