23
MACHINE ASSEMBLY

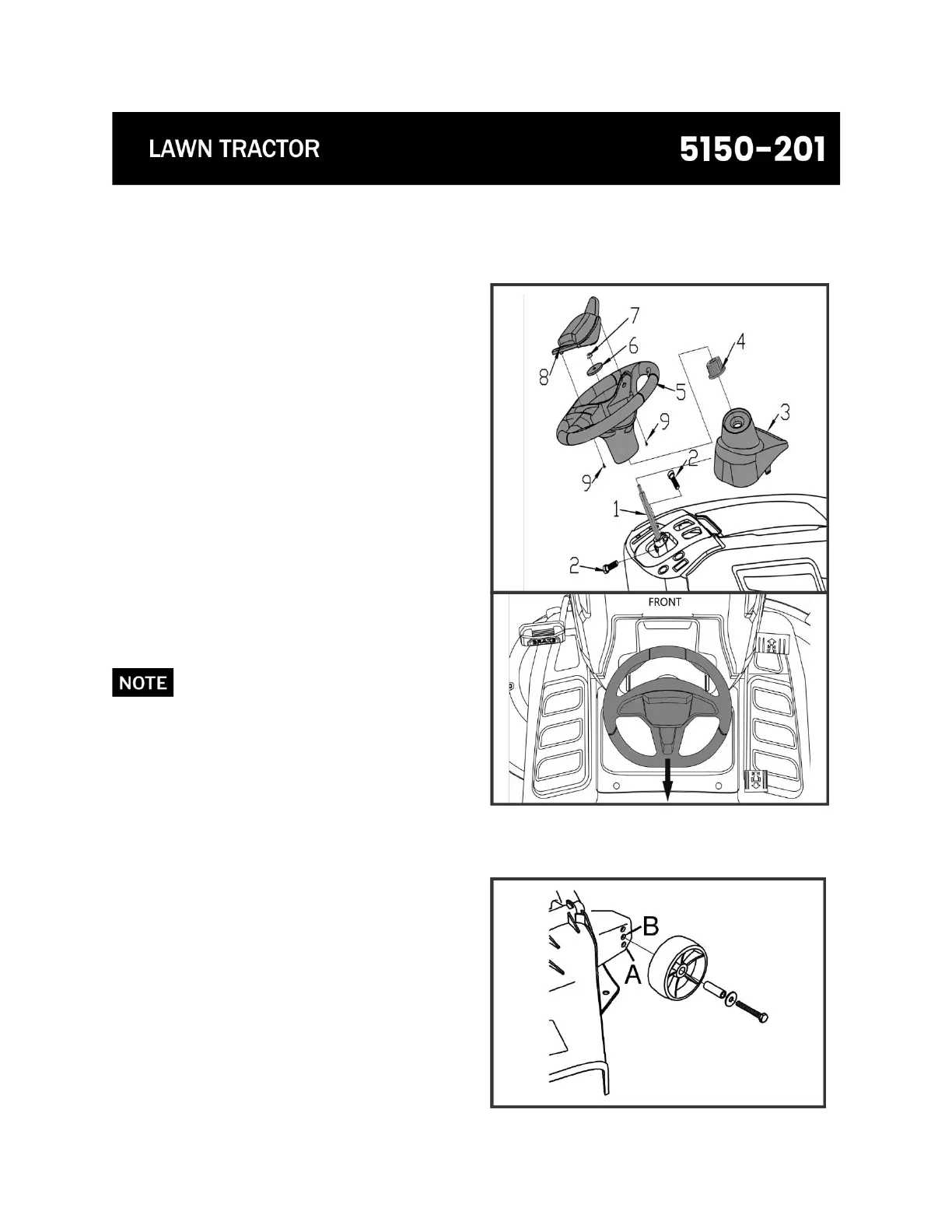

FITTING THE STEERING WHEEL
Put the machine on a flat surface and straighten up the front wheels.
1. Fit the shaft (1) onto the couplings
and tightening the screw M8x25 (2)
(Use the open end wrench 8-10 in
accessories tools).
2. Fit the steering shaft cover (3).
3. Inset the splined hub (4) to shaft (1),
mounting steering wheel (5), spacer
(6) and tightening nut M8 (7)(Use the
open end wrench 13-15 in accessories
tools).
4. Inset the steering wheel cover (8) into
steering wheel and tighten two
screws ST4.8x16 (9)(Use the Philips
screwdriver in accessories tools).
Pay attention to the orientation of
the parts when mounting the steering
wheel.
FITTING THE DECK WHEELS
1. Assemble the two Deck Wheels with
the designated Pin, Lock Nuts, and
Bolts as illustrated.
