Benchmark BG4650E - BG6250 E Control Panel

8
BG SERIES

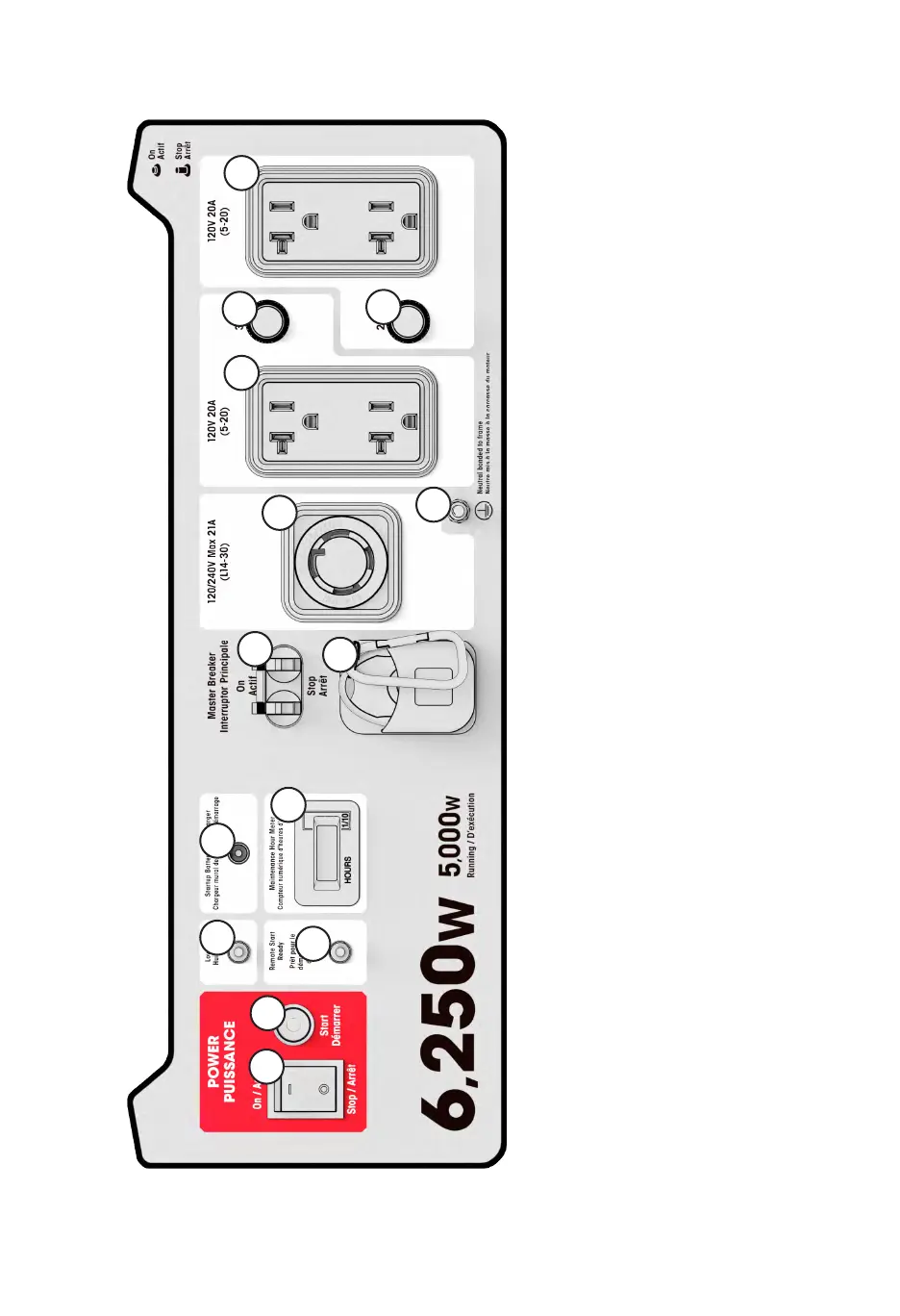

BG6250E Control Panel
1. Power Switch 2. Electric Start 3. Low Oil Light 4. Remote Start Ready Light 5. Startup Battery Wall Charger Port 6. Maintenance Hour Meter 7. Master AC Breaker
8. Remote 9. 120/240V 21A (L14-30) 10. Ground Connection 11. 120V 20A (5-20) 12. 30A Breaker 13. 20A Breaker
1
6
2
3
4
5
7
8
9
10
13
12
11 11
