Benchmark BG4650E - Spark Plug Service

44
BG SERIES
6.5 SPARK PLUG SERVICE
Note
Do not rinse spark plug in water. Follow guidelines and be careful not to
overtighten the spark plug.
Recommended spark plug: F7TC
Check the spark plug gap and clean the carbon deposits at the bottom of the spark
plug.
Tighten 1/2 turn when installing a new spark plug.
Tighten 1/8 TO 1/4 turn when re-installing an old spark plug.
1. Remove the spark plug cap.
2. Remove the spark plug with the spark plug wrench.
3. Visually inspect the spark plug. Replace with a new plug if the insulation is
cracked or chipped. Clean with a wire brush if the spark plug is reused.
4. Measure the spark plug gap with a feeler gauge. The normal value is:
0.7-0.8mm (0.028- 0.031in). Adjust the gap by carefully bending the electrode.
5. Carefully reinstall the spark plug by hand, to avoid cross-threading. A new
spark plug should be tightened 1/2 turn with a wrench. A used spark plug
should be tightened 1/8 to 1/4 turn with a wrench.
6. Reinstall the spark plug cap.
Note
 The spark plug must be securely tightened or it could cause the spark
plug to heat up, enough to damage the engine.
 Never use a spark plug with an improper heat range.

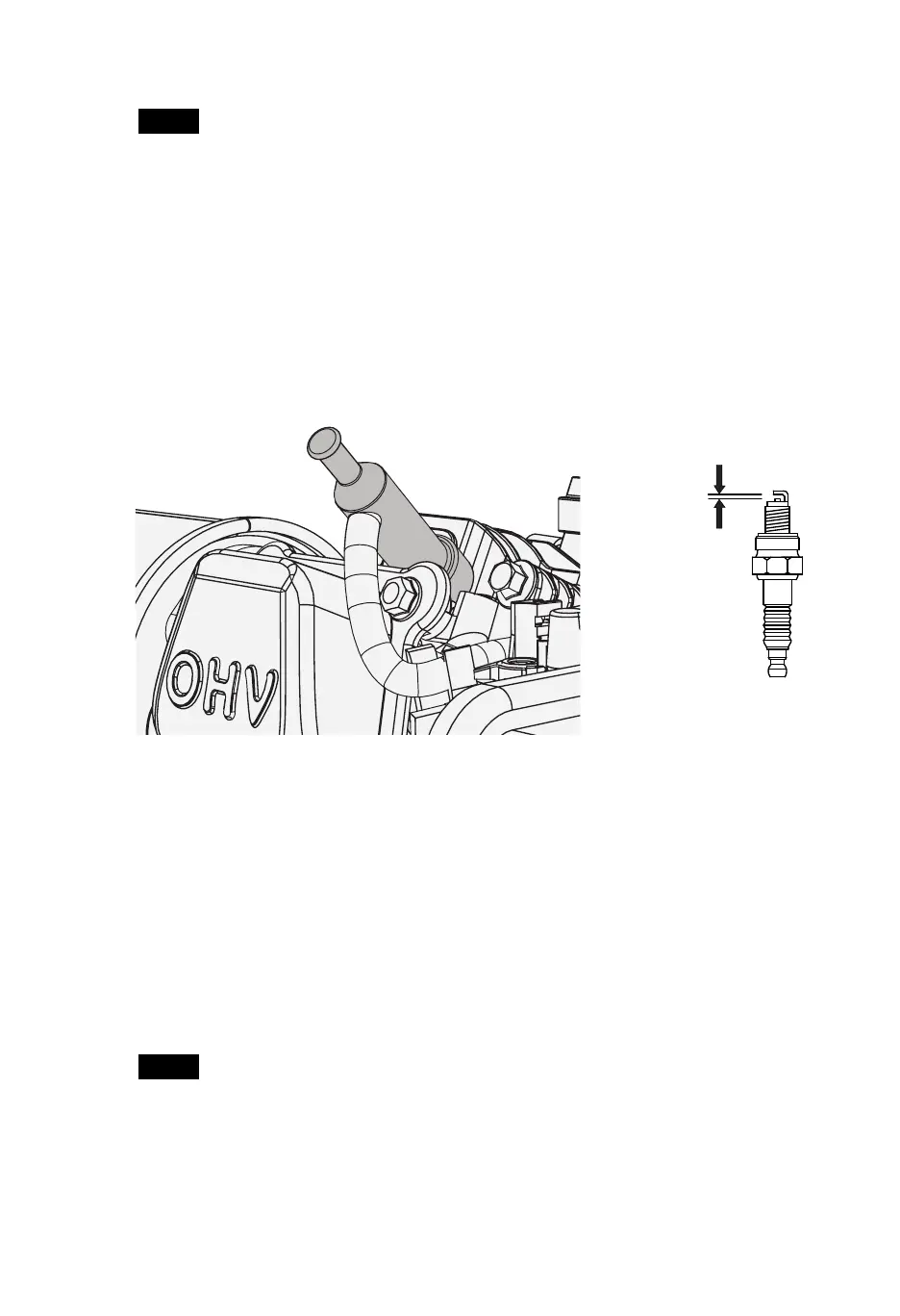

0.70-0.80mm
(0.028-0.031in)
