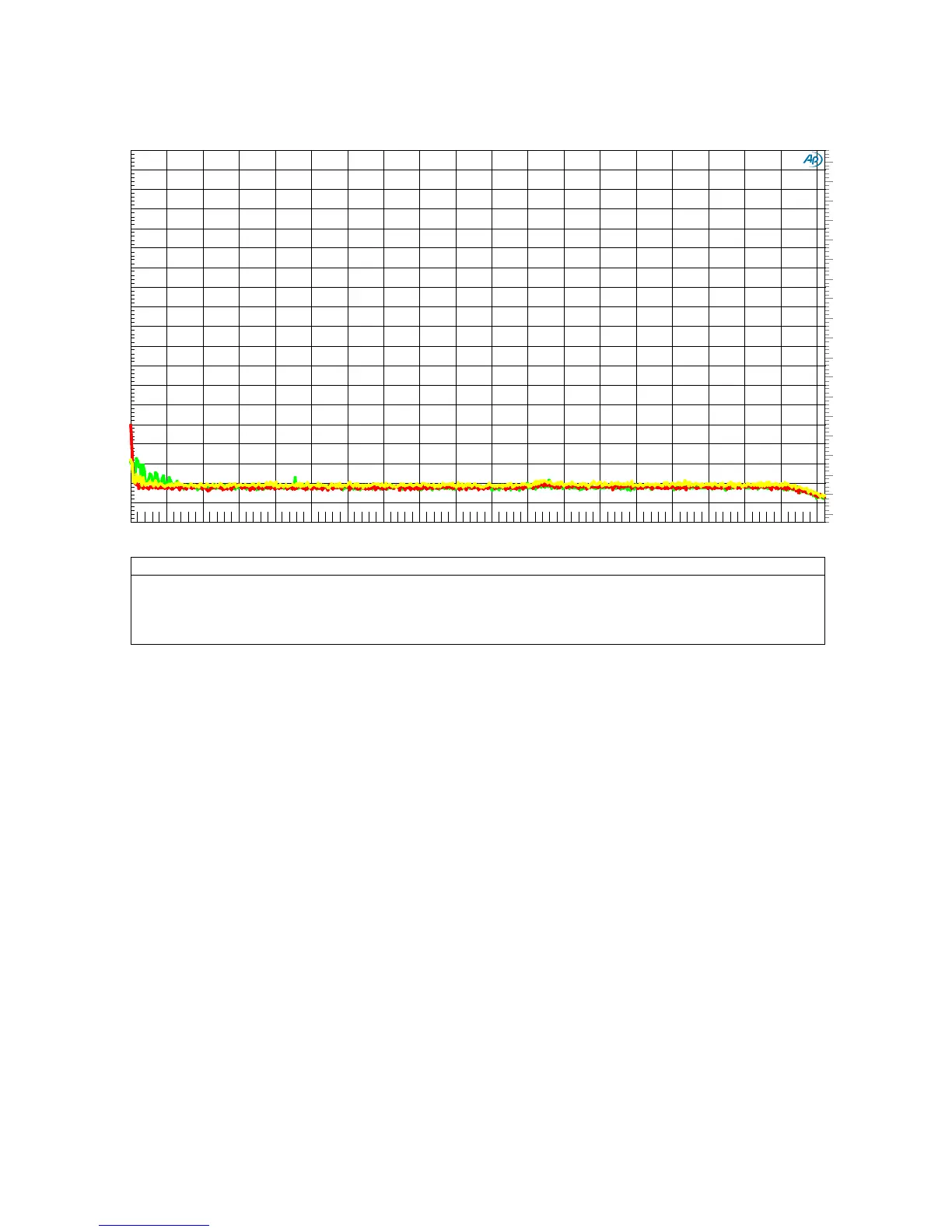

Graph 10 - FFT Idle Channel Noise - Balanced In to Balanced Out
The HPA4 is an exceptionally quiet line amplifier. This allows it to be inserted between a
Benchmark DAC3 and an AHB2 power amplifier without degrading the noise performance of the
system. This same line stage is used in front of the THX-888 headphone amplifier. The line stage
provides volume control without degrading the performance of the headphone amplifier.
Notes:
• The scale on the left (dBr A) is dB relative to +28 dBu. This is the maximum input and
output level supported by the HPA4 line stage.
• The scale on the right (dBr B) is dB relative to +22 dBu. This is the input level required to
drive an external AHB2 power amplifier to full output power. It is also the level required to
drive the internal THX-888 to full output power.
• Balanced inputs to balanced line outputs, volume control set at 0 dB.
