Assembling the Machine

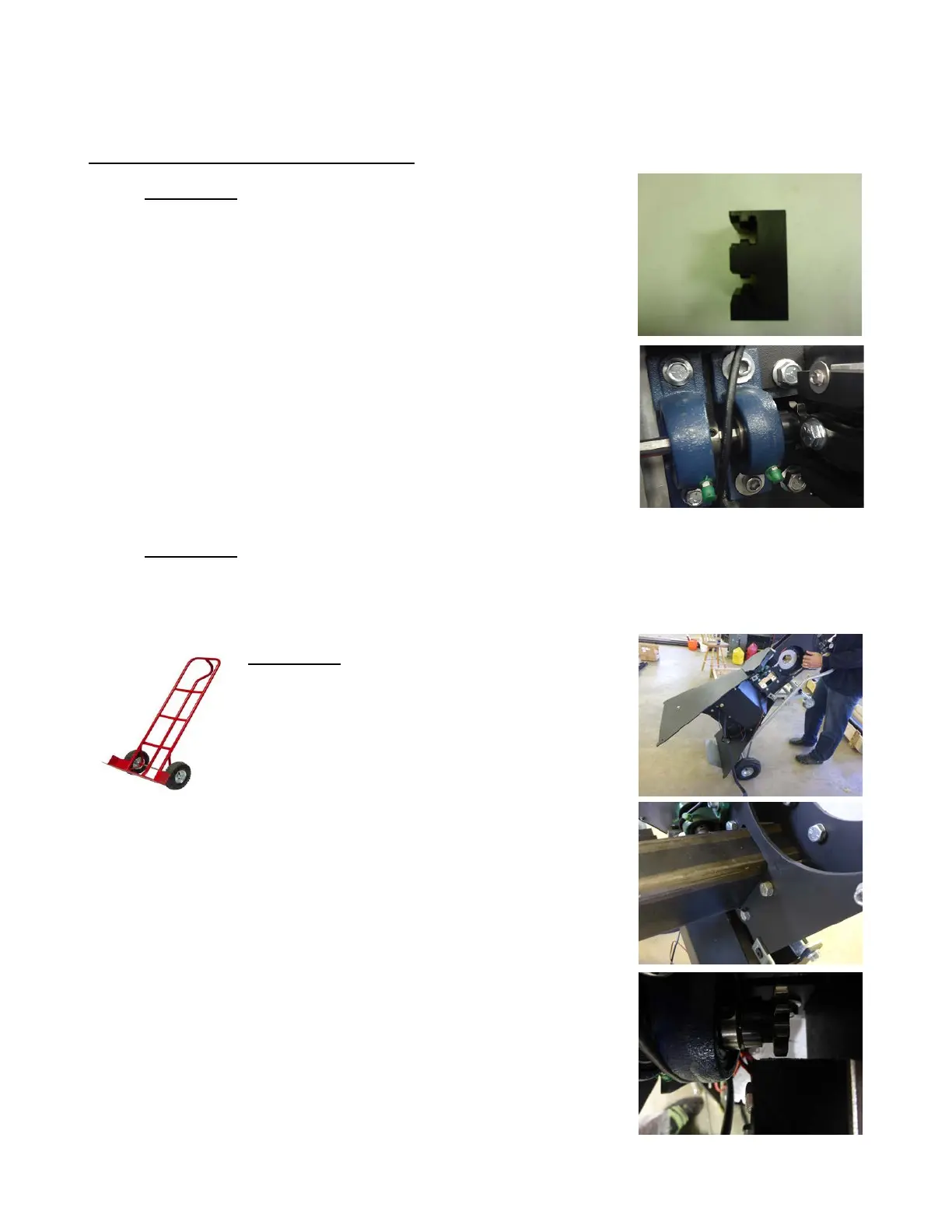

Step 1: With the machine in multiple
sections, remove the stock rail (set
aside) and install the new plastic chain
guide block. Loosely affix the guide
block to the rail end nearest the front
of the machine using the nuts and bolts
provided. NOTE: You will have to
reach a wrench inside the rail to
achieve this.
Step 2: Align the center of the guide block with the inner
chain gear then tighten the 2 bolts of the block.
Step 3: Now, use the hand
truck (or the help of another
person) to move the head of
the machine toward the new
rail. Then, insert the bare end
into the rail slot on the head.
There should be a small gap between
the chain guide block (from the
previous step) and the sprocket in front
of it (attached to the machine head).
