p.12
bolts aside until step 5.)

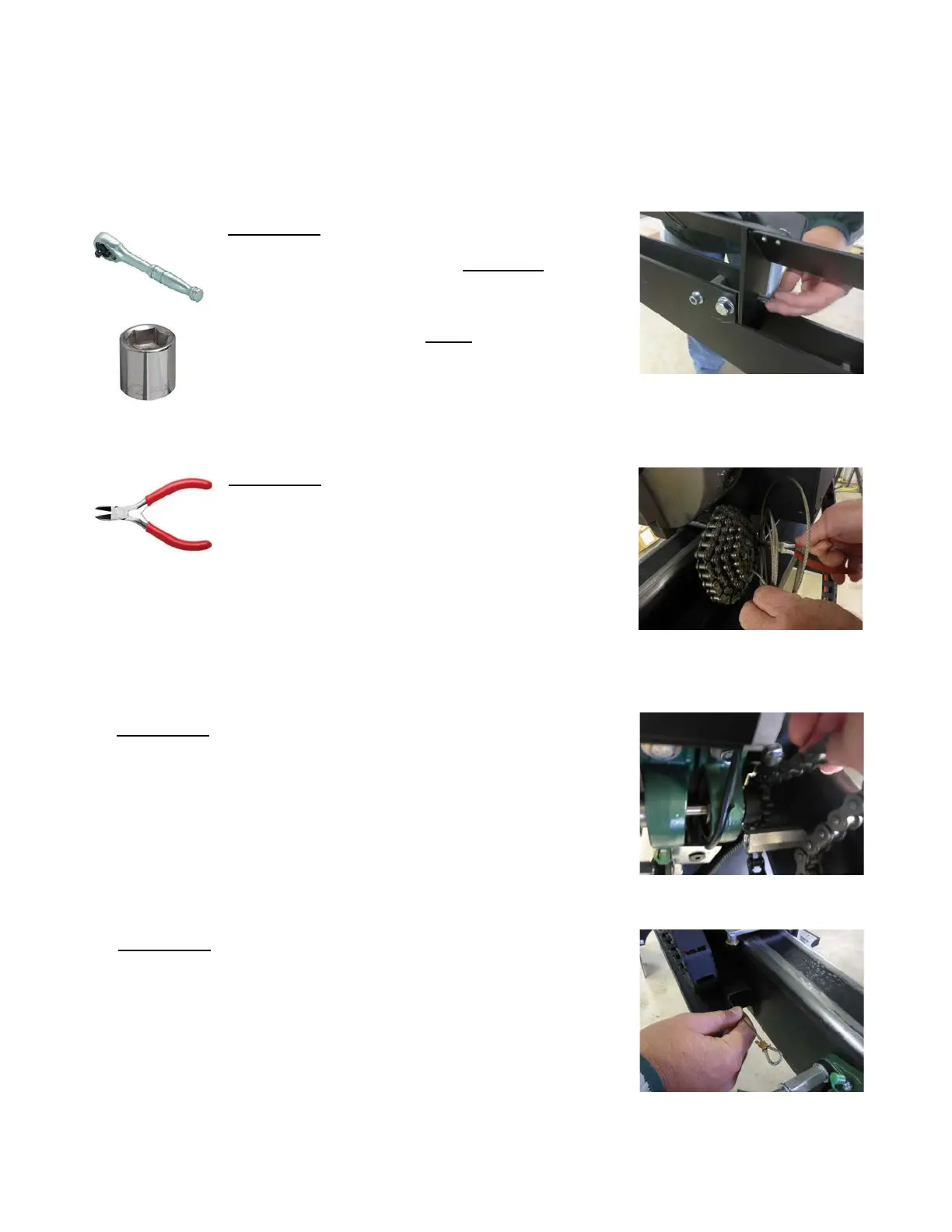

Step 5: Use the ratchet and the
1/2 inch socket to lightly secure
the part catcher to the beak. This
will require the two 1/2 inch
bolts that were removed from
the part catcher in step 4.
Step 6: Using the wire cutters,
cut the zip tie holding the chuck
chain together and unwind it in
preparation to extend it out and
connect it to the base of the
machine's gear system.
Step 7: Guide the end of the chain and
steel cord through the chain guide block
and around the machine's sprocket. Pull it
tight to allow the teeth of the sprocket to
settle within the links of the chain.
Step 8: Lead the cord (on the end of the
chain) through the one inch square tube
located along the side of the rail. Then,
guide the end of the cord under the first
bolt and around the pulley so that it rests
in the groove on the top edge of the pulley.
