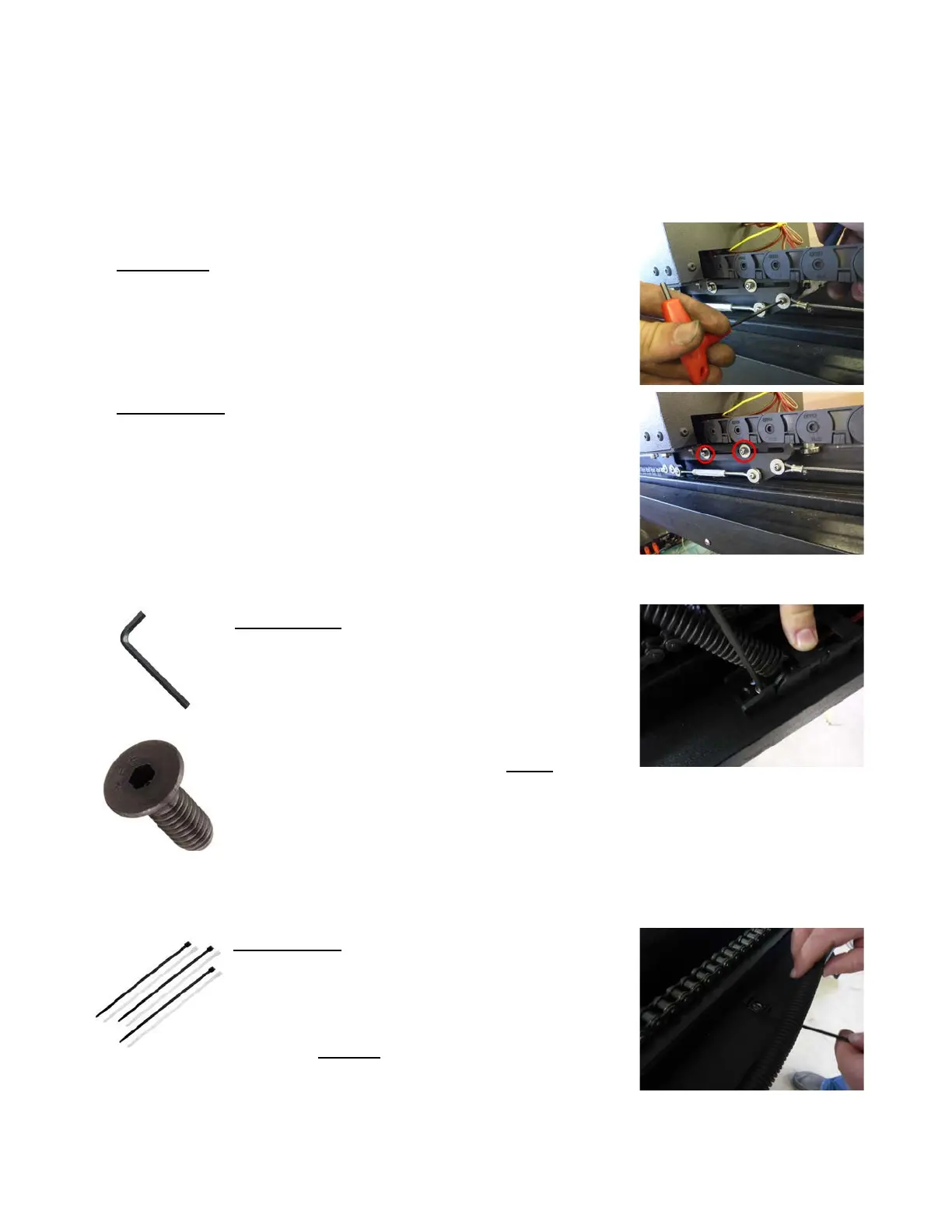

p.13
Next, attach the loop on the end of the cord to the bolt on
the very rear end of the chuck trolley.
Step 9: Adjust and tighten the nut and
bolt with a pliers and a 1/8 inch hex
wrench.
Step 10: The turnbuckle and the two
hex bolts above it on the support plate
will adjust so that it doesn't rest on the
square tube below it by tightening up the
slack on the chain and cable.
Step 11: The track with the
connector wires inside of it
should rest on top of the square
tube. Using the 1/8 inch hex
wrench, screw in the two
fastener screws into the pilot holes where the
track meets the cable wrap. This is located on the
rail nearest the back leg.
Step 12: Using the zip ties
provided in the shipping box,
affix the cable wrap to the rail
on the three separate, plastic
connector locations.
