p.14

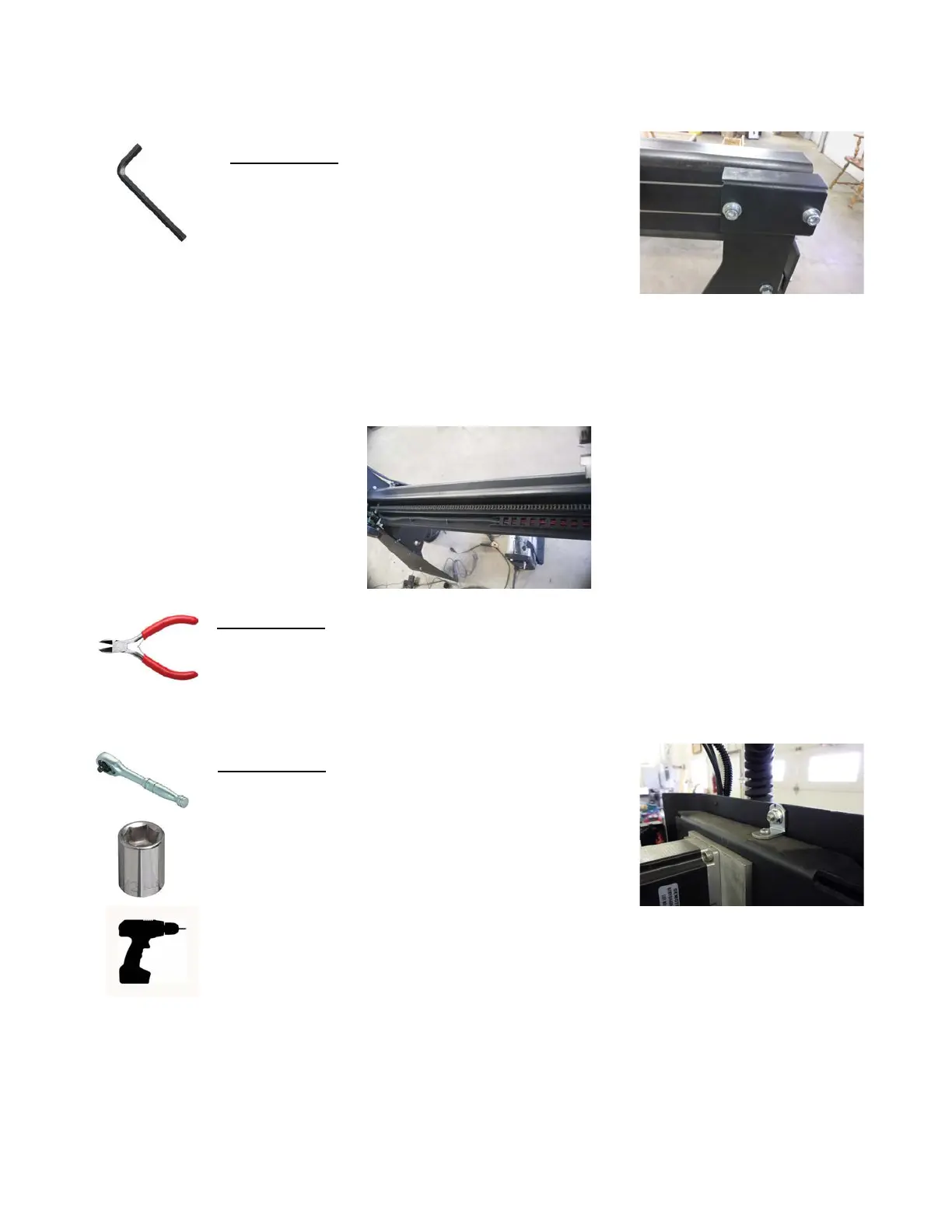

Step 13: Attach the pulley guard
to the pulley on the tail of the
rail using the 5/16 hex wrench
and corresponding 5/16 inch
bolts.
The chain, cord wrap and pulley guard should now be
securely attached to the rail.
Step 14: Be sure to walk around the machine and
cut off all zip ties that will inhibit the machine's
movement.
Step 15: Use the 3/8 inch socket
and phillips head screwdriver to
remove the L-bracket located on
the top of the tool changer head.
