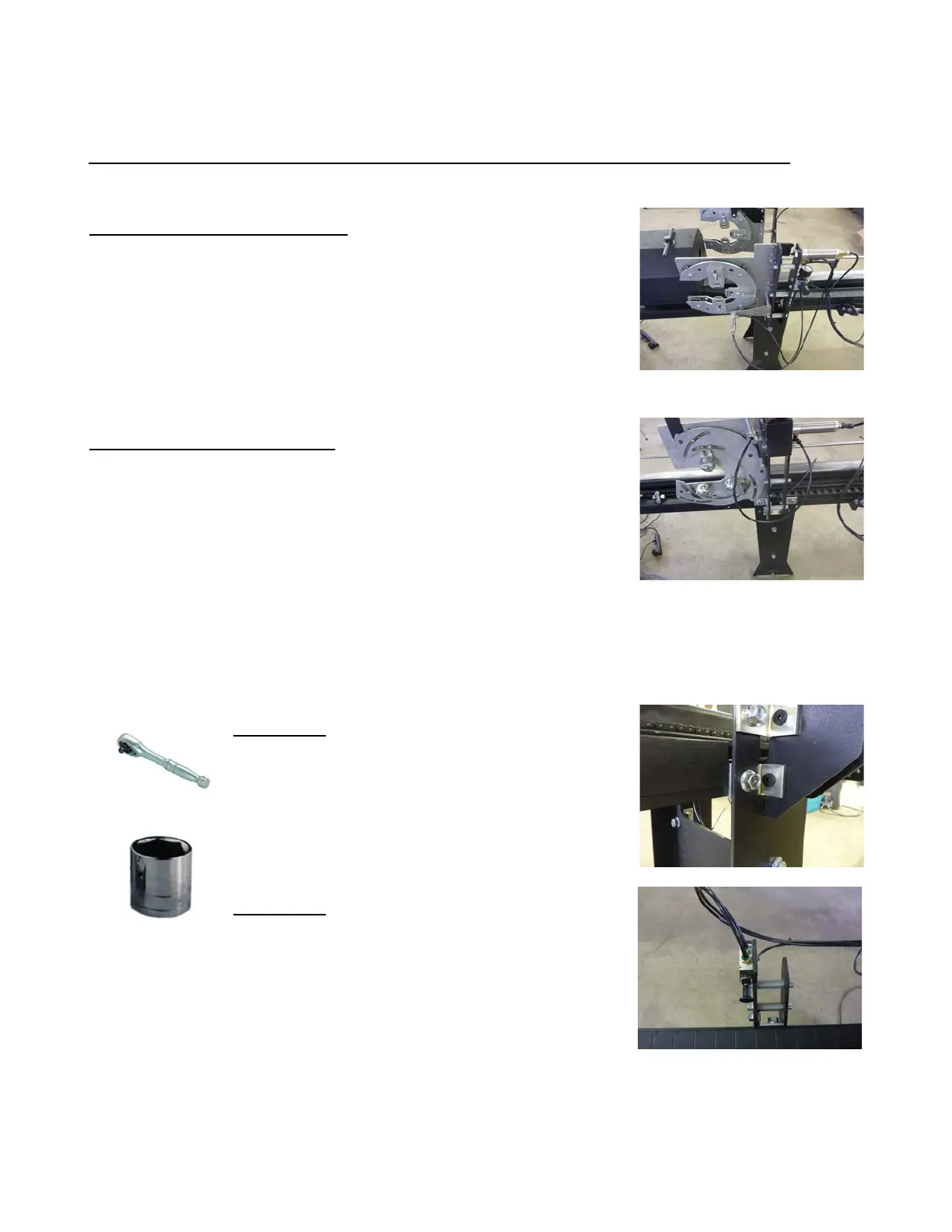

Attaching the Center Support Gate – For 21' Dragon
Step 1: For Square - Position the center
gate horizontally underneath the center
location of the rail and lift up on the gate
structure to stand it upright and align it with
the bolt holes.
Step 1: For Round – Position the center
gate in line with the bolt holes in the center
location of the rail. Tip: The lip underneath
the rail may prevent you from butting the
gate up to the rail entirely, so you may have
to lift up on the rear of the machine to be able to slide the gate
into position.
Step 2: Using the ratchet and
3/4 inch socket, connect the
gate to the rail with 2 of the 3/4
inch nuts and bolts.
Step 3: Also using the ratchet
and 3/4 inch socket, connect
the pressure switch to the rail
with the last 3/4 inch nut and
bolt.
