KING
KY 196/196E/KY 197/197E
VHF COMMUNICATIONS TRANSCEIVER
COAX:
CUT,STRIP AND SOLDER
AS SHOWN.
AVOID EXCESS SOLDER
ON CENTER CONDUCTOR.
V
~'
~,
'C
Lm~~TALUNG CA,
TACK SOLDER-2 PLACES.
NOTES:
I. AVOID APPLYING EXCESSIVE HEAT TO CONNECTOR BODY.
HEAT SINK SPRING CONTACTS DURING SOLDERING.

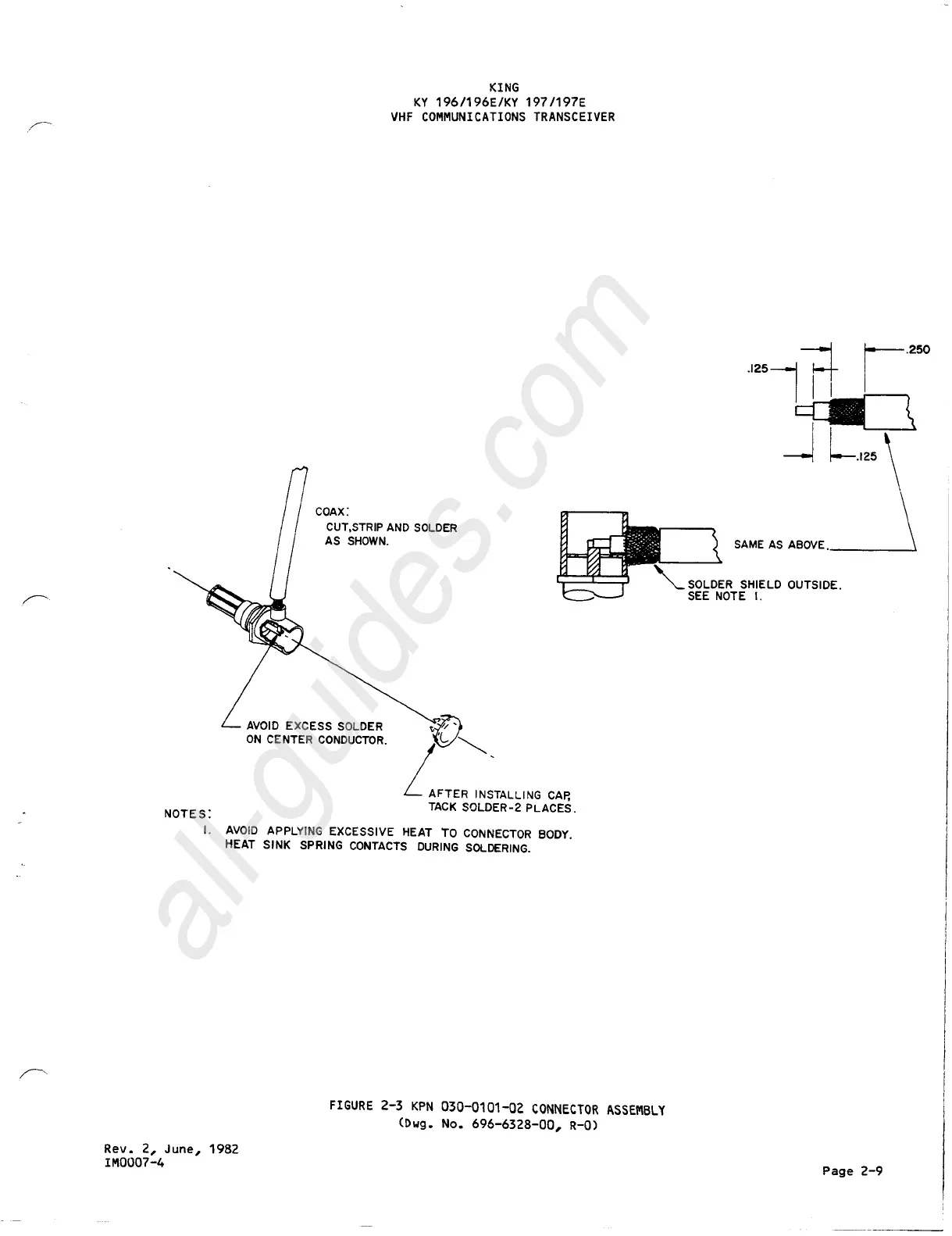

FIGURE 2-3 KPN 030-0101-02 CONNECTOR ASSEMBLY
(Dwg. No. 696-6328-00, R-O)
Rev. 2, June, 1982
IM0007-4
12S'ir~
j
LI2S\
SAMEASABOVE.~
"-SOLDER SHIELD OUTSIDE.
SEE NOTE I.
Page 2-9
