KY 196/196E/KY 197/197E
VHF COMMUNICATIONS TRANSCEIVER
COM
MIC AUDIO
INTERCOM
MIC AUDIO
COMo
INTERCOMot?
I
HEADPHONE I
I
I
I
I
I
I
I
OUT
o
HEADPHONE .JACK
SQ. TEST
-
NIC
(SEE NOTE
8)
XMIT-REC INTER~OCK (SEE NOTE 51
(SEE NOTE
8)
---.
27.5V AIC POWER--
_
27.5vA/C POWER
(SEE NOTE
6)
7AMP
SWITCHEDAIC PO
:=J
ER
(SEE NOTE 71
27.5 V POWER
POWER GND
(SEE NOTE
6)
6. AIRCRAFT POWER WIRING SHOU~ BE-
TWO'"
18 AWG TO THE CIRCUIT BREAKER
AND POWER GROUND SHOU~D BE TWO... 18 AWG TO GROUND.
7. SWITCHED A/C POWER,PINS J AND 8 AND 27.5V POWER PINS HAND 7 MUST BE
JUMPERED TOGETHER
WITH'"
20 AWG MINIMUM.
8. FOR REMOTE FREQUENCY TRANSFER I REMOTE FREQUENCY RECA~~ 1064-1021-1)./11/'2)
DR FIE~D MOD 15 A MOMENTARY GROUND AT PIN E WI~~ CAUSE THE RADIO TO INCREMENT
TO TH:; NEXT FREQUENCY IN MEMORY AND DISPLAY IT IN THE STB't WINDOW. A MOMENTARY
GROUND AT PIN 6 WI~~ TRANSFER THE USE AND STBY. FREQUENCIES. A TWO POSITION
SPRING ~OADED ROCKER SWITCH CR TWO SEPARATE MOMENTARY PUSHBUTTON SWITCHES
MAY BE USED AT THE INSTALL.ERS OPTION.
KPN 030-0101-02
PI962
IT1=
'
E AGC TEST/REMOTE INC---o
6 REMOTE XFER ~
OR
ANT
RG58
NOTES:
I. INTERCOM OPERATION REQUIRES A MIKE WHICH PROVIDES AUDIO OUT WITH THE MIKE
KEY DE-ENERGIZED.
2. A~~ WIRES <II 24 AWG UN~ESS NOTED.
3. TERMINATE SHIE~S AT ONE END ONLY AS SHOWN.
4. A~L GROUNDS ARE AIRFRAME GROUlo[) UNLESS NOTED.
Xlf.IT
_
REC INTERLOCK WIRING NECESSAo<Y
WHE"-'
BOTH COMM ANT. ARE TOP MOUNTcC. BOTH
COMa-. A~ T. ",,~E oOTTO.'" ;~UNTE" OR IN uUAL. COMotiI1'\I"'T04LL TIO~S IN FAftl:dC
A,R':RAFT CONNECT THIS LINE TO THE MIC KEY UNE OF THE OTHER TRANSCEIVER.
REFER TO ANTENNA INSTALLATION RECOMMENDATIONS.

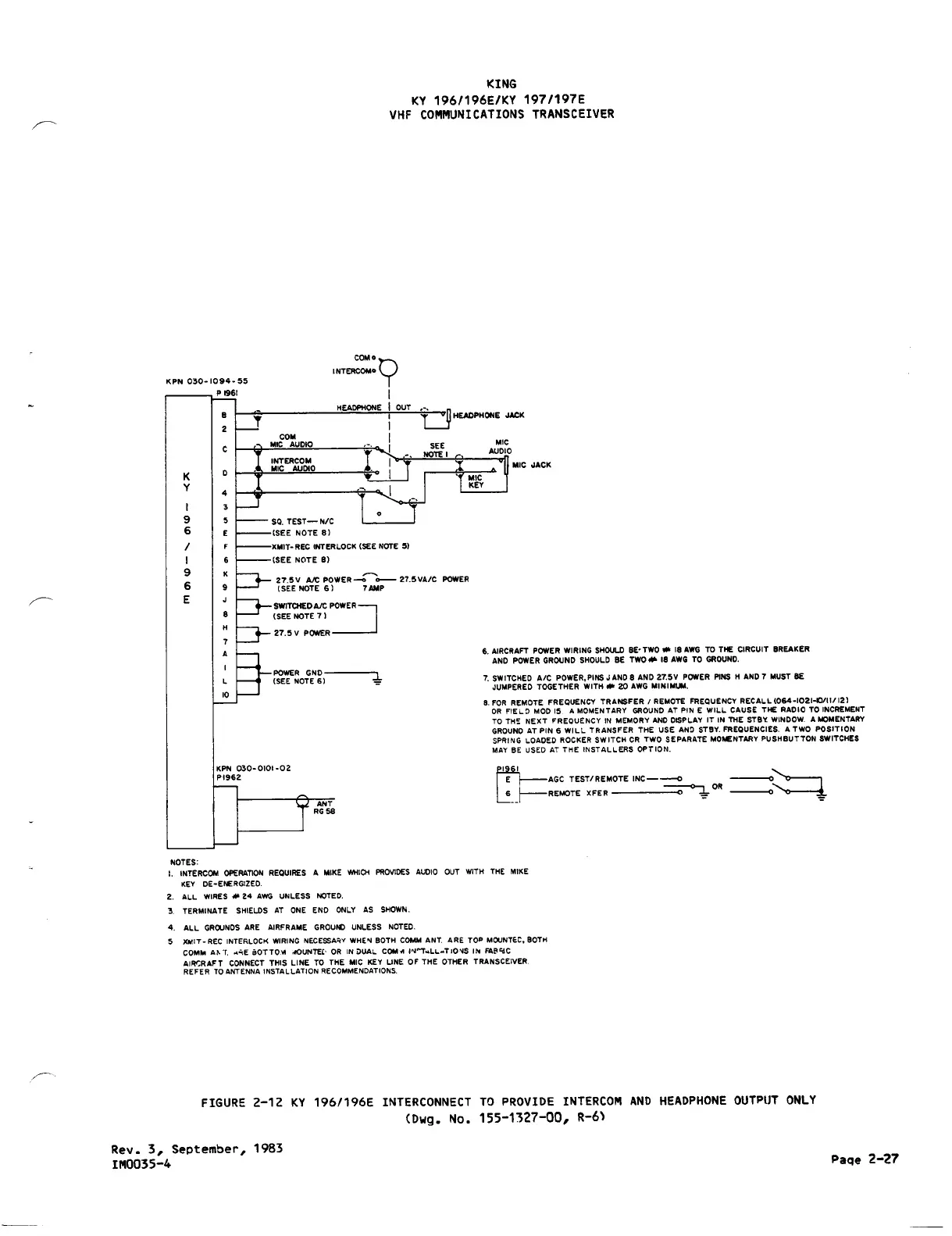

FIGURE 2-12 KY 196/196E INTERCONNECT TO PROVIDE INTERCOM AND HEADPHONE OUTPUT ONLY
(Dwg. No. 155-1327-00, R-6~
Rev. 3, September, 1983
11110035-4
Paqe 2-27
