Bendix/King KY 196 - KY 197;197 E Interconnect to Provide Intercom and Headphone Output

KPN 030-1094-
~~PI961
B
2
C
K
D
Y
4
I
3
9
~7
E
I
H
I
7
9
K
7
9
E
J
B
F
6
A
L
10
KPN 030-0101-02
PI962
KING
KY 196/196E/KY 197/197E
VHF COMMUNICATIONS TRANSCEIVER
COM
MIC AUDIO
INTERCOM
IRC AUDIO
COMo
INTERCOMO
t:?
I
HEADPHONE I OUT
I
I
I
I
I
I
I
MIC
AUDIO
MIC JACK
b
HEADPHONE JACK
SQ. TEST-NlC
(SEE NOTE
8)
X,,",T
-
REC. INTERLOCK (SEE NOTE~)
(SEE NOTE
8)
13.7SV Ale POWER~o--I3."'VA/C POWER
(SEE NOTE
6)
9AMP
SWITCHEDAIC
POWERl
(SEE NOTE 7
)
13.~ V POWER
POWER GND
(SEE NOTE
6)
6. AIRCRAFT POWER WIRING SHOULD BE TWO_18 AWG TO THE CIRCUIT BREAKER AND
POWER GROUND SHOULD BE TWO 18 AWG TO GROUND.
7. SWITCHED AIC POWER. PINS J AND 8 AND 13.7SV POWER PINS F AND 6 MUST BE
JUMPERED TOGETHER
WITH'"
20 AWG MINIMUM.
8. FOR REMOTE FREOUENCY TRANSFER I REMOTE FREOUENCY RECALL (064-1021-1011I) OR FIELD
110O.16. A MOMENTARY GROUND AT PIN E WILL CAUSE THE RADIO TO INCREMENT TO THE
NEXT FREOUENCY IN MEMORY AND DISPLAY IT IN THE STBY WINOOW. A MOMENTARY
GROUND AT PIN 7 WILL TRANSFER THE USE AND STBY FREQUENCIES. A TWO POSITION
SPRING LOADED ROCKER SWITCH OR TWO SEPARATE MOMENTARY PUSHBUTTON SWITCHES
MAY BE USED AT THE INSTALLERS OPTION.
ANT
RG~
Pl961
~t--AGC TEST/REMOTE INC---<>
7 REMOTE XFER ~
OR
NOTES:
I. INTERCOM OPERATION REQUIRES A MIKE WHICH PROVIDES AUDIO OUT WITH THE MIKE
KEY DE-ENERGIZED.
2. ALL
WIRES'"
24 AWG UNLESS NOTED.
3. TERMINATE SHIELDS AT ONE END ONLY AS SHOWN.
4. ALL GROUNDS ARE AIRFRAME GROUND UNLESS NOTED.
5. XMIT- REC INTERLOCK WIRING NECESSARY WIHEN BOTH COMM ANT. ARE TOP MOUNTED,
BOTH COMM ANT. ARE BOTTOM MOUNTED OR IN DUAL COMM INSTALLATIONS IN
FABRIC AIRCRAFT. CONNECT THIS LINE TO THE MIC KEY LINE OF THE OTHER
TRANSCEIVER. REFER TO ANTENNA INSTALLATION RECOMMENDATIONS.

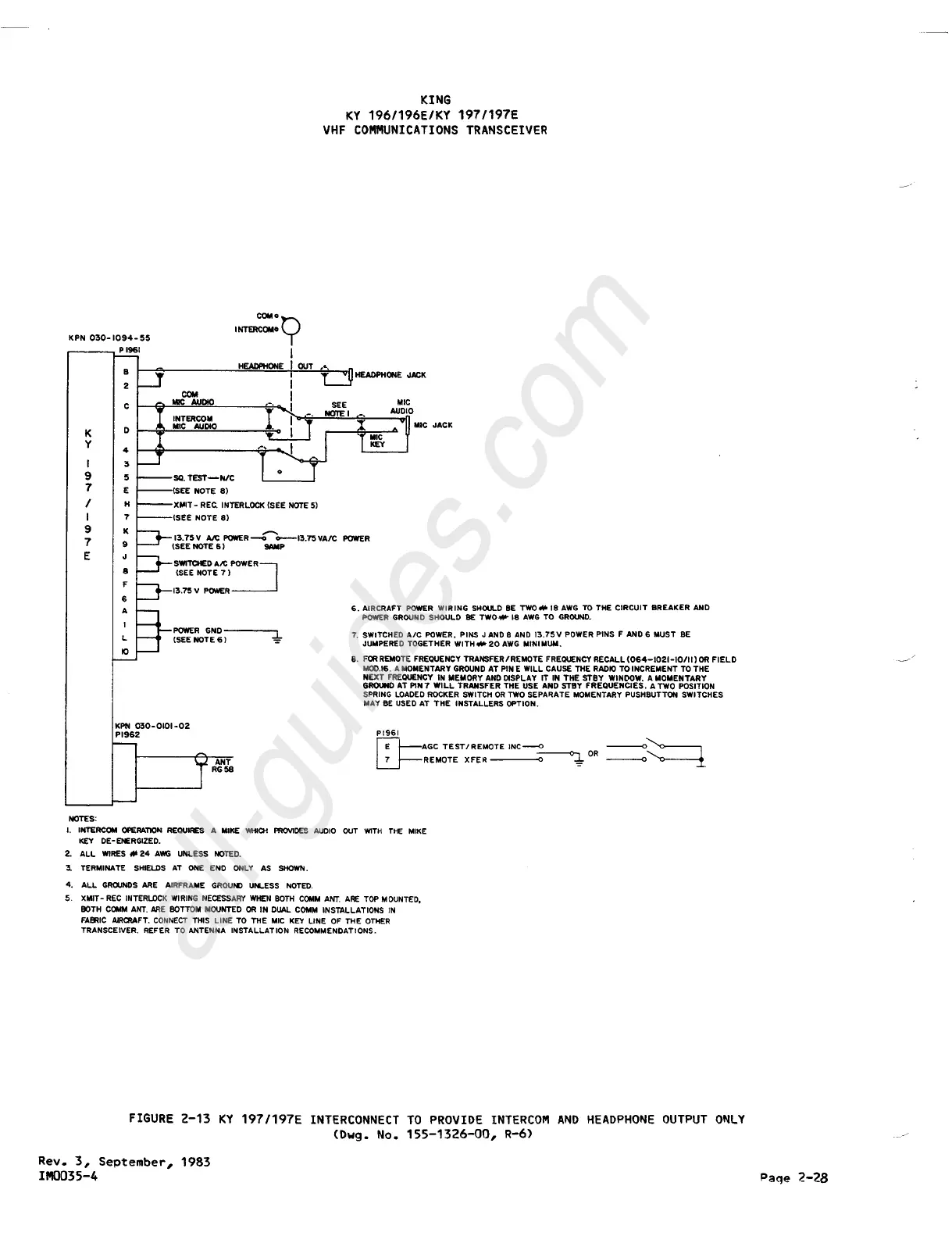

FIGURE 2-13 KY 197/197E INTERCONNECT TO PROVIDE INTERCOM AND HEADPHONE OUTPUT ONLY
(Dwg. No. 155-1326-00, R-6)
Rev. 3, September, 1983
1..0035-4
Paqe 2-28
