BENDIX EC-60 ABS-ATC STD-PREM CONTROLLERS User Manual

16

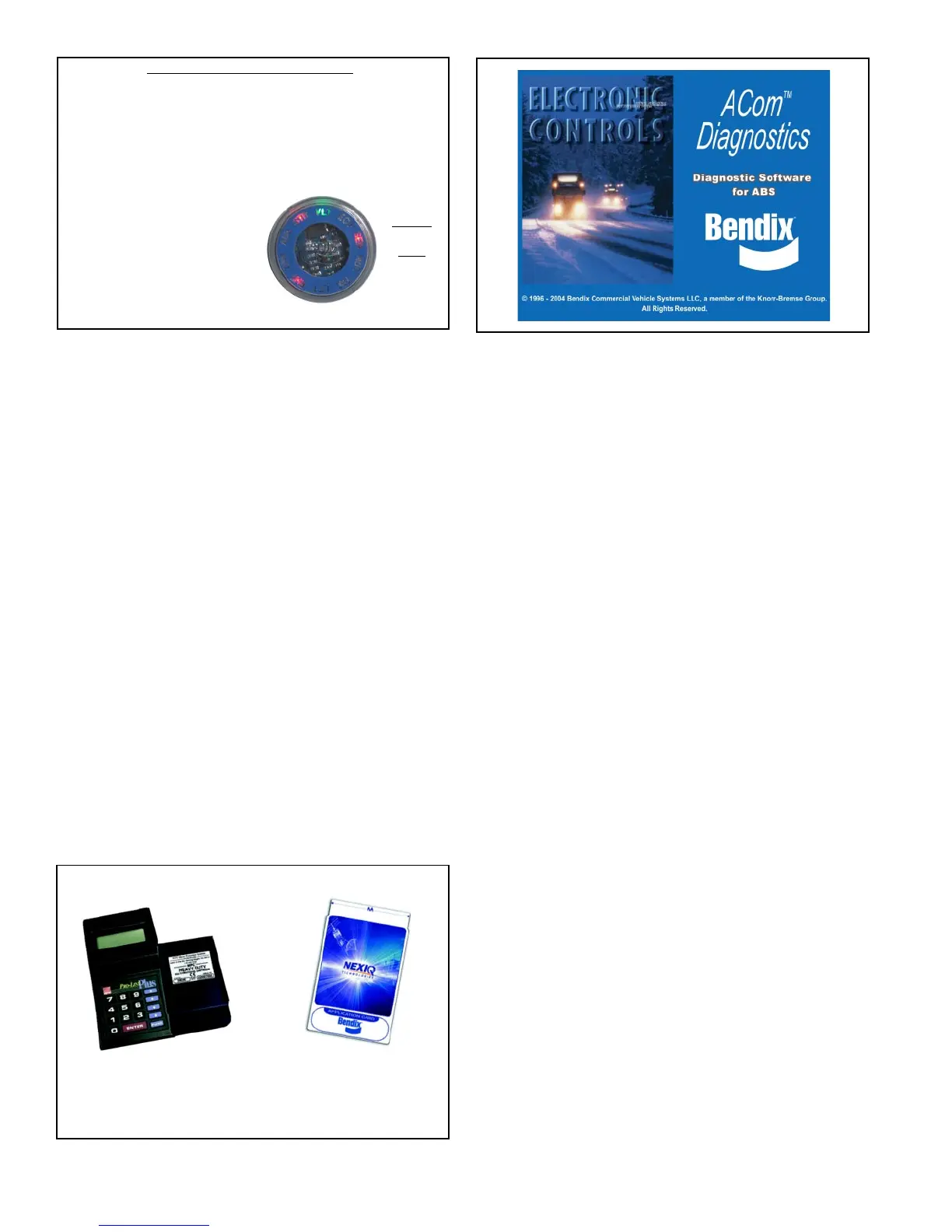

LED Diagnostic Trouble Codes
FIGURE 12 - DIAGNOSTIC TROUBLE CODES
LFT - Left
RHT - Right
DRV - Drive Axle
ADD - Additional
STR - Steer Axle
VLT - Power
ECU - ABS Controller
SEN - Wheel Speed
Sensor
MOD - Pressure Modulator
Valve
TRC - Traction Control
FIGURE 13 - NEXIQ (MPSI) PRO-LINK TOOL
PC Card MPSI
Part Number
805013
Pro-Link
Heavy Duty
Multi Protocol
Cartridge
Bendix
®
RDU
™
Communication Problems
If the ABS ECU does not respond to the RDU
™
tool’s request
for diagnostic trouble codes, the RDU
™
tool will illuminate
each red LED in a clockwise pattern. This pattern indicates
the loss of communication and will continue until the ABS
ECU responds and communication has been established.
Possible sources of communication problems are:
1. A problem with the J1587 link at the in-cab off-board
diagnostic connector (9 or 6 Pin).
2. The ECU does not support PID194.
3. No power is being supplied to the ECU and/or the
diagnostic connector.
4. The J1587 bus is overloaded with information and the
RDU can not arbitrate access.
5. A malfunctioning RDU
™
tool.
Nexiq Bendix Application Card
Nexiq provides a Bendix application card for use with the
ProLink tool. It can also be used to diagnose the EC-30
™
,
EC-17
™
, Gen 4
™
and Gen 5
™
, and MC-30
™
ABS Controllers.
For more information on the Bendix application card visit
www.bendix.com, Nexiq at www.nexiq.com, or your local
authorized Bendix parts outlet.
Bendix
®
ACom
™
Diagnostics 3.0 Software
Bendix
®
ACom™ Diagnostics is a PC-based software
program and is designed to meet RP-1210 industry
standards. This software provides the technician with
access to all the available ECU diagnostic information and
configuration capability, including:
• ECU information
• Diagnostic trouble codes and repair information
• Configuration (ABS, ATC, and more)
• Wheel speed information
• Perform component tests
• Save and print information
When using ACom
™
Diagnostics software to diagnose the
EC-60 ABS ECU, the computer’s serial or parallel port needs
to be connected to the vehicle’s diagnostic connector.
For more information on ACom
™
Diagnostics software or
RP1210 compliant tools, go to www.bendix.com or visit your
local authorized Bendix parts outlet.
See Page 42 for Appendix A: J1587 SID and FMI codes
and their Bendix blink code equivalents
www.bendix.com
Visit Bendix online for the latest information, and ways to
find the Bendix contacts you need. Contact technical
support, service engineers, Bendix account managers, and
more — www.bendix.com is your complete Bendix
resource.
Bendix Technical Assistance Team
For direct telephone technical support, call the Bendix
technical assistance team at:
1-800-AIR-BRAKE (1-800-247-2725),
Monday through Friday, 8:00 A.M. to 6:00 P.M. EST, and
follow the instructions in the recorded message.
Or, you may e-mail the Bendix technical assistance team
at: tbs.techteam@bendix.com.
Example: If the Diagnostic
Trouble Code is "Right
Steer Axle Sensor", the
RDU
™
unit will display one
green and three red LEDs
LEDs
Green
VLT
Red
SEN
STR
RHT
FIGURE 14 - BENDIX
®
ACOM
™
DIAGNOSTICS

BENDIX EC-60 ABS-ATC STD-PREM CONTROLLERS Specifications

General

Function	Anti-lock Braking System (ABS) and Automatic Traction Control (ATC)
Operating Temperature	-40°C to +85°C
Type	ABS-ATC Controller
Variants	Standard, Premium
Inputs	Wheel speed sensors
Supply Voltage	12V / 24V DC
