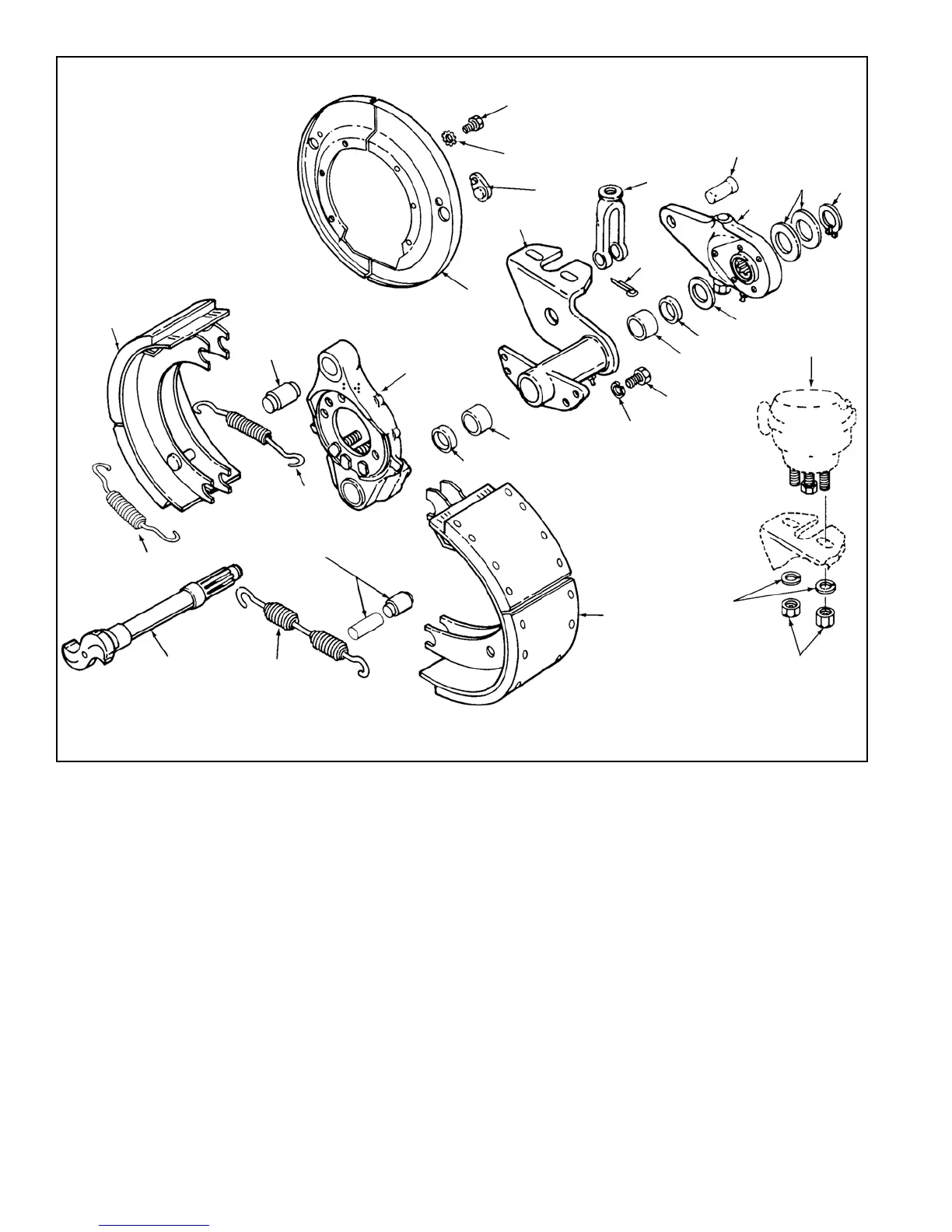

BENDIX SINGLE ANCHOR PIN CAM BRAKE - Exploded View

2
FIGURE 2 - 15” SINGLE ANCHOR PIN S-CAM BRAKE
16
Key No. Description Qty.
1 Snap ring 1
2 Spacer washers # +reqd.
3 Yoke pin 1
4 Slack adjuster 1
5 Yoke 1
6 Cotter pin 1
7 Washer 1
8 Grease seal 2
9 Bushing 2
10 Cap screw 4
11 Lock washer 4
12 Chamber bracket and cam tube 1
13 Brake shoe assembly 2
14 Cam roller assembly 2
Key No. Description Qty.
15 Anchor pin 1
16 S-Cam shaft 1
17 Shoe return spring 1
18 Anchor spring 2
19 Spider 1
20 Dust shield 2
21 Rubber inspection plug 2
22 Cap Nut 6
23 Star Washer 6
24 Actuator 1
25 Mounting Nuts 2
26 Washers 2
17
14
18
18
15
13
19
8
9
13
26
25
24
11
10
9
8
7
1
2
4
3
6
5
12
20
21
23
22
