Appendix
Bendix
®
FLR20
™
Radar Alignment
A1 LATERAL ALIGNMENT USING THE BENDIX
®
ALIGNMENT TOOL
This is the method to use for lateral alignment when a radar and/or bracket is replaced.
Tools needed: Bendix alignment kit, steel clip or plate, Torx T-20 screwdriver and a tape measure.
• One of the Bendix Alignment Tools part no: K065284 and K096579 — available from Bendix parts outlets — are used.
The alignment procedure also requires a steel clip, part number K073087, [or steel plate, (K105222) along with stretch-
release adhesive tape].

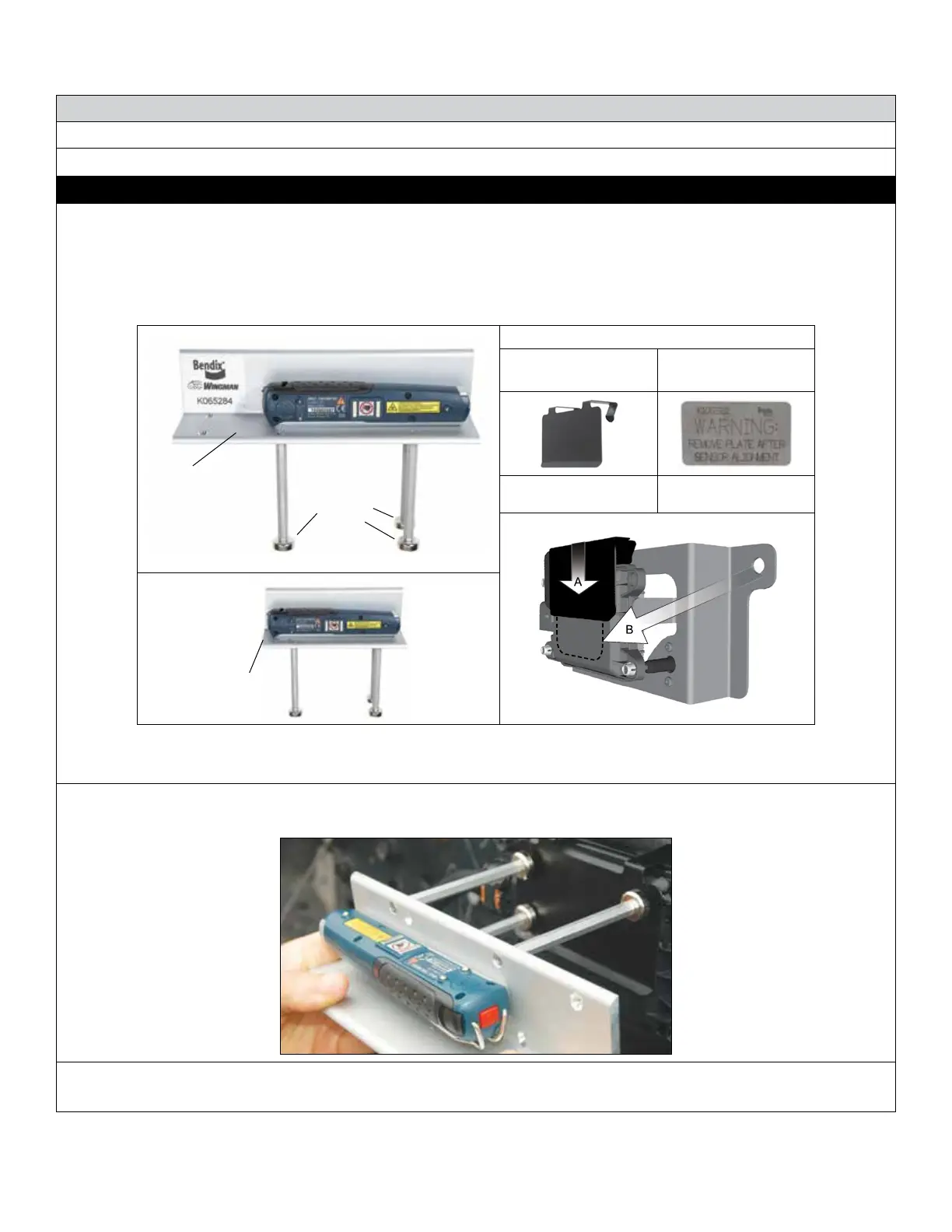

ALIGNMENT TOOLS AVAILABLE
Alignment Tool
with Laser
Guide
K065284
Magnetic
Feet
(3)
Alignment Tool Mounting Surface
A. Steel Clip
(design may vary)
B. Steel Plate
Mounts by sliding over the
sensor
Mounts using stretch-release
adhesive tape
K096579
Shorter
Bar
A1 Parkthevehicleonaleveloor.Airsuspensionsmustbechargedandstable.Installthesteelclipbyslidingit
over the sensor, or install the steel plate to the front of the sensor using stretch-release adhesive tape.
A2 Attach the alignment tool onto the clip or plate using its magnetic feet. Inspect to make sure that the alignment
tool is approximately horizontal, width-wise.
A3 Activatethelateralalignmentlaserlight“on”switch.Placethetoolintopositionfortherstmeasurement.(The
tool will be reversed when the second measurement is made.)
APPENDIX - RADAR ALIGNMENT USING BENDIX
®
ALIGNMENT CLIP AND TOOL
