System Components
The main components used in the Bendix
®
Wingman
®
Fusion
™
system are the
Bendix
®
ESP
®
EC‑80
™
Controller; the Bendix
®
Wingman
®
FLR‑20
™
radar; the
Bendix
™
AutoVue
®
FLC‑20
™
Camera (powered by the Mobileye
®
System‑on‑
Chip EyeQ
®
processor with state‑of‑the‑art‑vision algorithms); the Bendix
®
Driver Interface Unit (DIU
™
), or OEM dash display; the SafetyDirect
®
by Bendix
CVS Processor; and the vehicle’s telematics system.

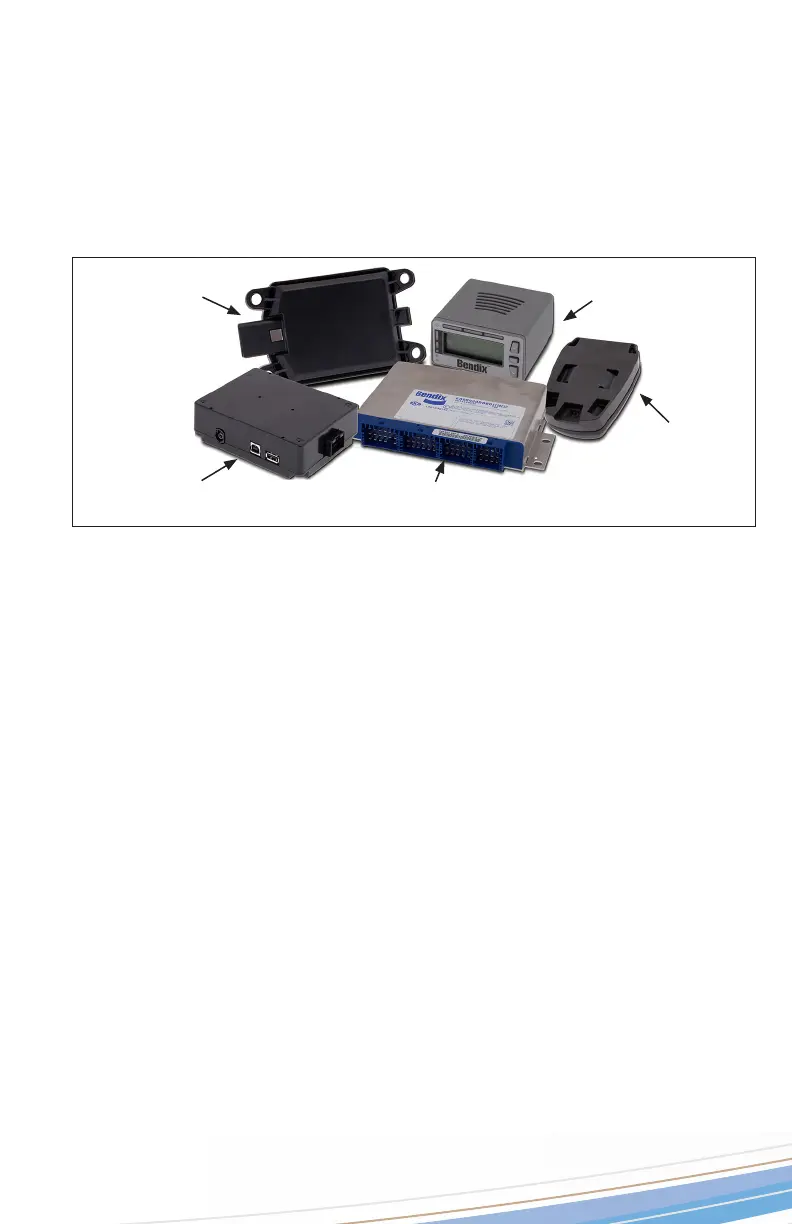

Bendix
®
FLR-20
™
Radar Sensor
Bendix
®
ESP
®
EC-80
™
Controller
Bendix
™
AutoVue
®
FLC-20
™
Camera
SafetyDirect
®
By Bendix CVS
Processor
Bendix
®
Driver
Interface Unit (DIU
™
)
The Bendix Wingman Fusion radar locates and tracks moving vehicles. The
radar is located at the front of your vehicle – either on the bumper or just
behind it on a cross‑member. When located behind the bumper, in some
cases the unit may also be behind a protective covering that allows the radar
signal to pass through. The camera is located on the windshield inside the
wiper pattern.
The Bendix Wingman Fusion radar is pre‑aligned at the factory and no
adjustment should be needed. If the radar becomes misaligned – or any other
system problem is detected – a message (or light) on the dash lets you know
that service is needed.
The Wingman Fusion camera works with the radar to better identify
forward vehicles (moving and stationary).
System Display
Driver information about the Wingman Fusion system is either fully integrated
into the vehicle dashboard, or uses the Bendix Driver Interface Unit (DIU
™
).
Although the system functions the same, how the alerts are displayed to
you can be different. See the Alerts and Warnings section of this manual on
pages 24-29 for more detailed information about the alerts.
NOTE: For some integrated systems, the volume level of the alerts may not
be adjustable, nor can they be switched off.
