6
Rev 8 Mar/2007
KMD 550/850 Pilot's Guide
NOTE:
IF THE FAULT INDICATOR IS LIT, ALL DISPLAYED DATA SHOULD
BE TREATED AS SUSPECT AND CROSS-CHECKED FOR ACCU-
RACY BEFORE USE.

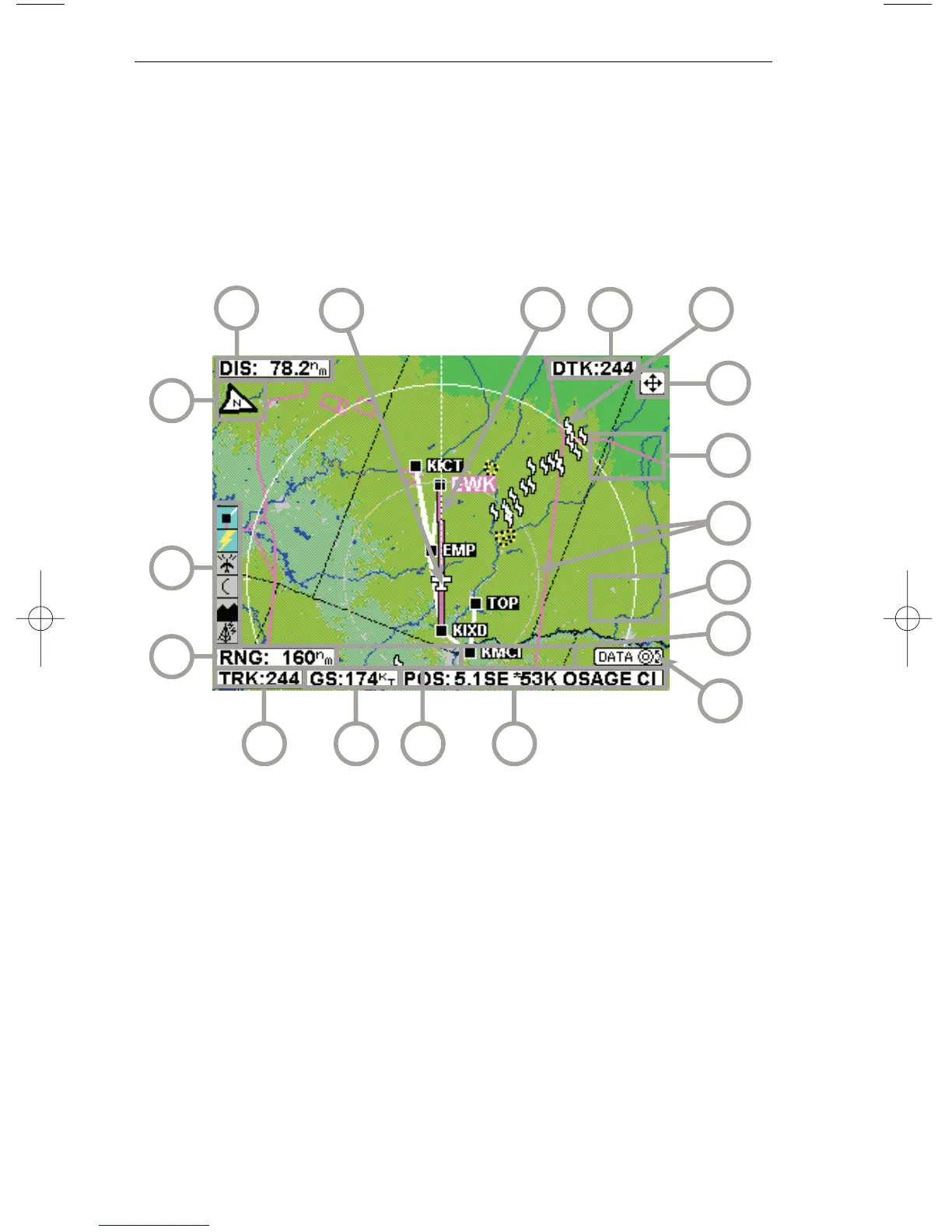

The following illustration describes the data that appears on the Map
Display Page.
General Information
1 Display Range - RNG:####nm
2 Current Track - TRK:###
3 Current Ground Speed - GS:###kt
4 Distance to Pointer - PDIS: ###.#nm
5 Position Readout - Current aircraft position
6 Control Knob Label - Indicates Control Knob is active for data entry
7 Bearing to Pointer - PBRG: ###
8 MORE INFO Soft Label
9 Range Rings - Outer ring radius is selected range, inner ring radius is
one half the selected range
10 RESET STICK Soft Label
11 Joystick Label
12 Lightning Overlay
13 Desired Track - Active leg oriented to magnetic desired track (magenta)
14 GPS Flight Plan Overlay - Current GPS flight plan
15 Aircraft Symbol - Indicates present position. Stylized airplane when
heading input is present, a plus symbol with no heading.
16 Distance to Waypoint - DIS:###.#nm
17 North Pointer
18 Available Functions - Displays icons representing data available (black)
and displayed (color)
2 5
18
17
9
3
1
4
7
8
10
11
14
13 12
16
6
15
KMD 550-850 PG R8 3/6/07 11:22 AM Page 6
