16
Columns B, C, D
Column A
1 2 5 6 7
8
9 10 11
12 13 14
15
16 17 18 19
3
4

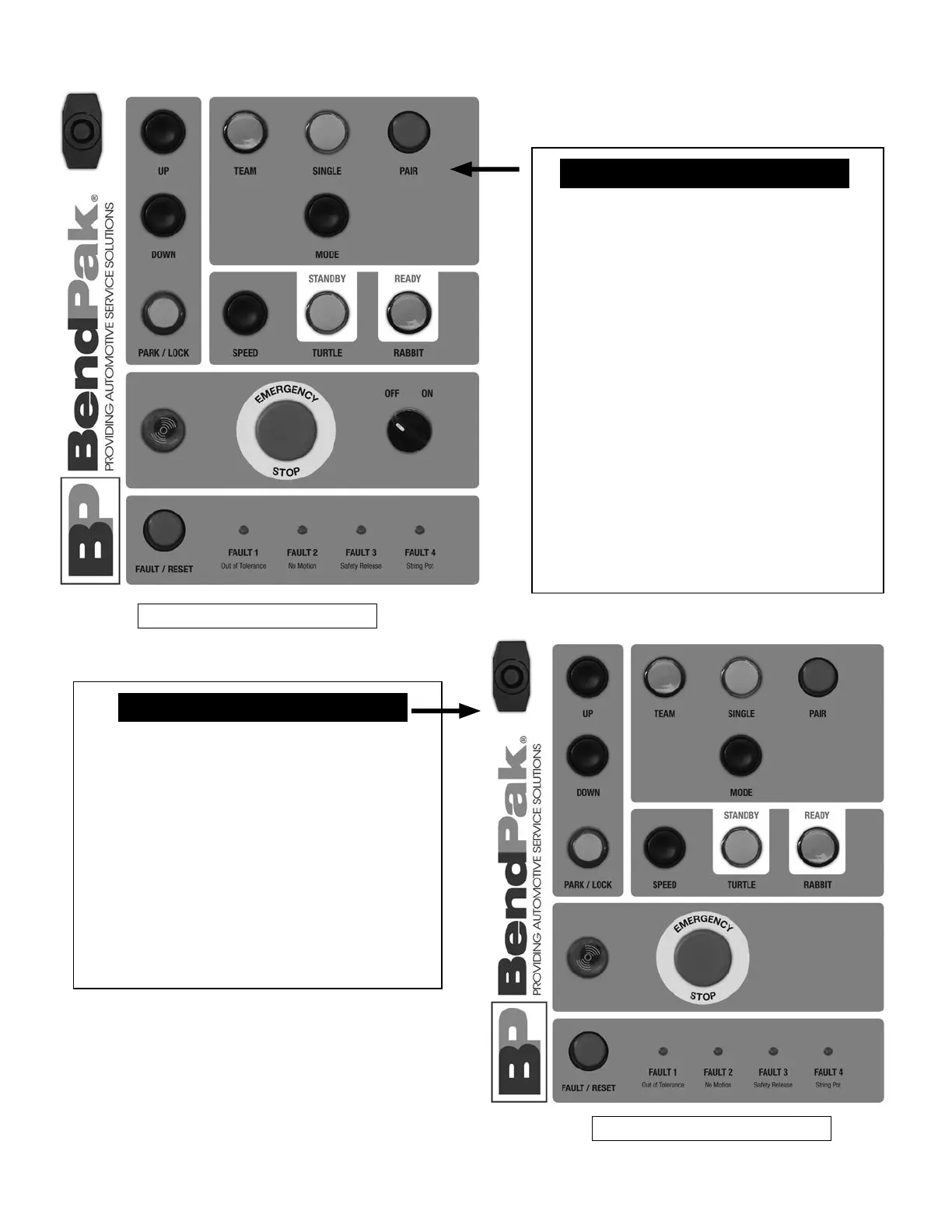

MASTER COLUMN CONTROL PANEL
SLAVE COLUMN CONTROL PANELS
The Columns B, C and D have many of
the same features as that of the Column A
Control Panel with the following exceptions:
-There is no Power Switch
-There is no Calibration Button
-There is no Main Power Supply Cord to
connect to the wall.
1. Door Lock
2. UP Control
3. DOWN Control
4. PARK Control
5. TEAM Light
6. SINGLE Light
7. PAIR Light
8. MODE Control
9. SPEED Control
10. STANDBY/TURTLE Light
11. READY/RABBIT Light
12. VISUAL/AUDIBLE Alarm
13. EMERGENCY STOP Button
14. MAIN POWER Switch
15. FAULT/RESET button
16. FAULT 1 - Out of Tolerance Light
17. FAULT 2 - No Motion Light
18. FAULT 3 - Safety Release Light
19. FAULT 4 - String Pot Light
20. CALIBRATION Button
