BendPak PCL-18B - Page 45

45

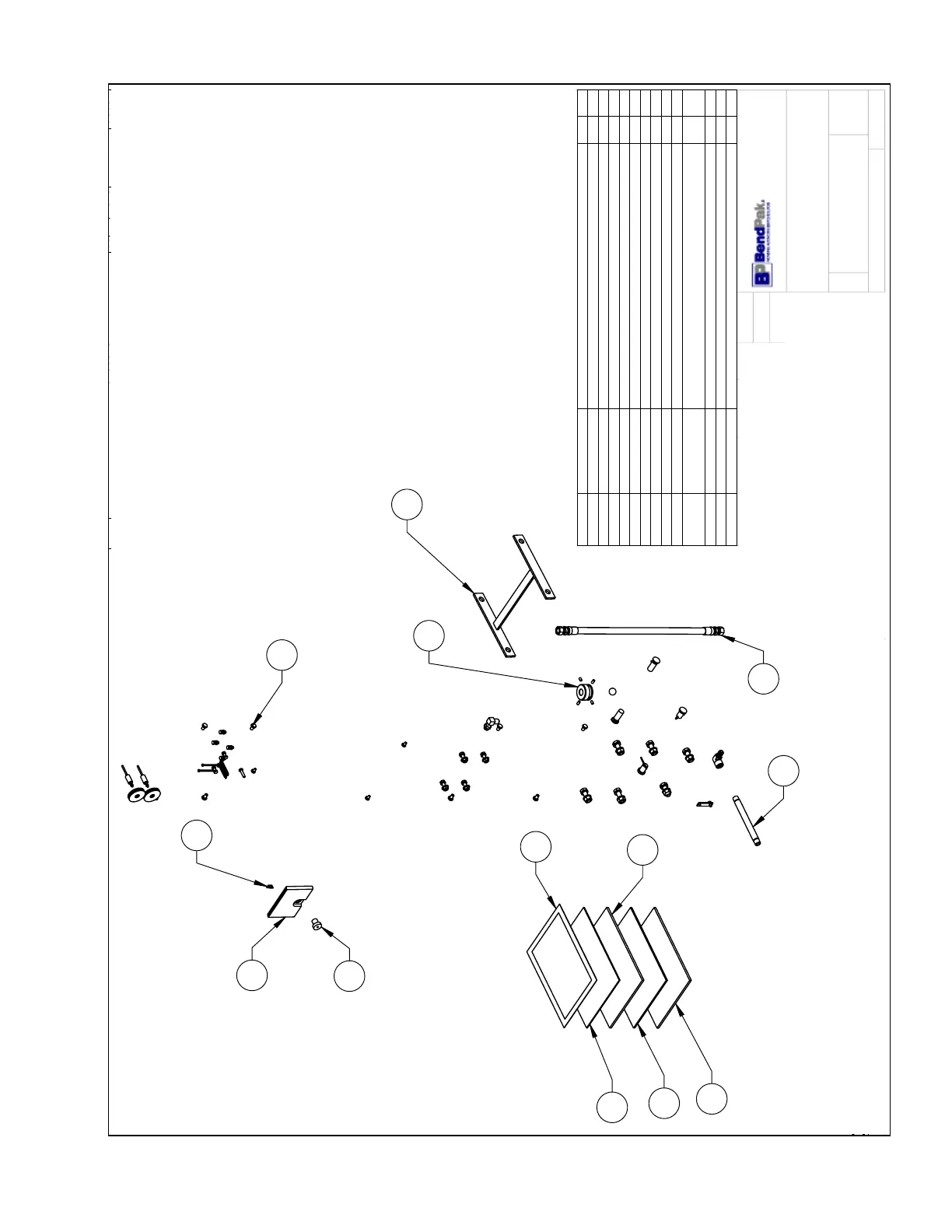

DIMENSIONS ARE IN MM
☺
3
5
1
6
4
2
7
13
11
9
10
12
8
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
H
ADDED 5905675
03/12/2015
VB
00651
J
UPDATED TITLE TO REFLECT WHERE USED ,
UPDATED BOM REVISIONS
08/24/2015
JM
00720
K
REMOVED 5900151, 5905580, 5905615,
5905620, 5905105, AND 5905675
11/02/2015
TM
00737
ITEM NO
PART NUMBER
DESCRIPTION
QTY
REV
1 5174499
PCL-18B PARTS BAG
1
G
2 5600704
PCL-18B SAFETY BLOCK WELDMENT
1
C
3 5600278
PCL-18B TOW CART TIE PLATE WELDMENT
1
D
4 5756113
PCL-18B HYDRAULIC TUBE
1
C
5 5570872
PCL-18B HYD. HOSE ASSY Ø10 x 850mm DS
1
C
6 5746615
PCL-18B SAFETY PIVOT PIN
1
D
7 5721099
PCL-18B SOLENOID TRIP BRACKET
1
D
8 5746257
PCL-18B WHEELED JACK RETAINER RING
1
C
9 5900147
SAFETY MANUAL ALI / SM 93-1
1
-
10 5900152
ALIGN OIM OPERATION INSPECTION &
MAINTENANCE
1
-
11 5900280
ALI/LP FRAME ENGAGING LIFTS GUIDE
1
-
12 5905151
SAFETY TIPS CARD ALI-ST 90
1
-
13 5900176 PCL-18 INSTALLATION MANUAL 1
-
NEXT ASSEMBLY
5260130
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
K
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
TM
5250221
PCL-18B PARTS BOX,
PRIMARY COLUMN
07/14/2009
DO NOT SCALE DRAWING
1:12
SCALE:
THIRD ANGLE PROJECTION
CA
11/20/2015
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
1.
