46

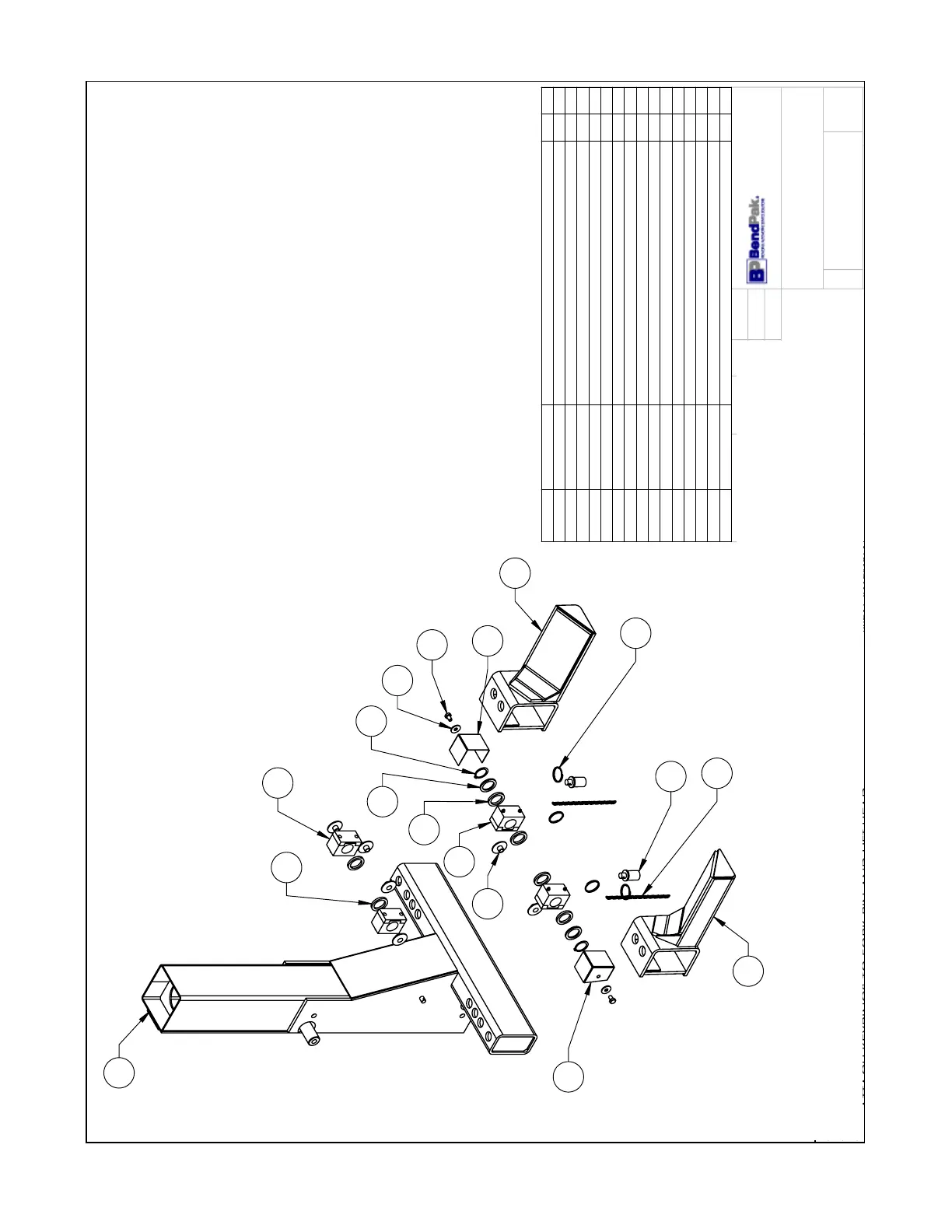

DIMENSIONS ARE IN MM
☺
1
11
3
2
5
12
4
15
6
13
7
9
10
6
15
8
14
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
H
REPLACED 5716169 WITH 5716159, REPLACED
5575092 WITH 521542, REPLACED 5600455 WITH
5600885, AND 5600447 WITH 5600884
02/17/2015
MR
00651
J
UPDATED BOM REVISION
03/19/2015
TM
00693
K
UPDATED TITLE TO REFLECT WHERE USED, UPDATED
BOM REVISIONS
08/21/2015
JM
00720
ITEM NO
PART NUMBER
DESCRIPTION
QTY
REV
1 5600448
PCL-18B CARRIAGE WELDMENT
1
H
2 5600884
PCL-18B RIGHT FORK ARM WELDMENT
1
B
3 5600885
PCL-18B LEFT FORK ARM WELDMENT
1
B
4 5716156
PCL-18B CARRIAGE SLIDE
6
C
5 5580219
KEYRING 56mm x 3mm
4
--
6 5716159
PCL-18B CARRIAGE SLIDER SPACER
6
F
7 5701424
PCL-18B CARRIAGE ROLLER COVER, R.H.
1
B
8 5701459
PCL-18B CARRIAGE ROLLER COVER, L.H.
1
E
9 5545027
WASHER M12 x Ø37 x 3mm
2
--
10 5530164
HHB M12 x 1.75 x 20
2
--
11 5746619
PCL-18B FORK PIN
2
C
12 5510105
PCL-18B LIFT HEAD PIN CHAIN
2
--
13 5746073
PCL-18B ROLLER BEARING BACKUP PLATE
2
D
14 5540124
RETAINING RING, TRUARC 5100-177
2
--
15 5215421
PCL-18B CARRIAGE SLIDER ASSEMBLY, BRASS
4
C
NEXT ASSEMBLY
5245121
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
K
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
GJZ
5215034
PCL-18B CARRIAGE
ASSEMBLY
11/13/2007
DO NOT SCALE DRAWING
1:15
SCALE:
THIRD ANGLE PROJECTION
CA
09/23/2015
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
1.
ASSEMBLE ITEMS AS SHOWN
2.
ATTACH KEYRINGS TO THE ENDS OF EACH CHAIN
3.
ATTACH KEYRINGS TO FORK PIN AND LIFT HEAD
4.
NOTE: UNLESS OTHERWISE SPECIFIED
.
