11. Fault and troubleshooting
E
E
r
r
r
r
o
o
r
r
i
i
n
n
d
d
i
i
c
c
a
a
t
t
i
i
o
o
n
n

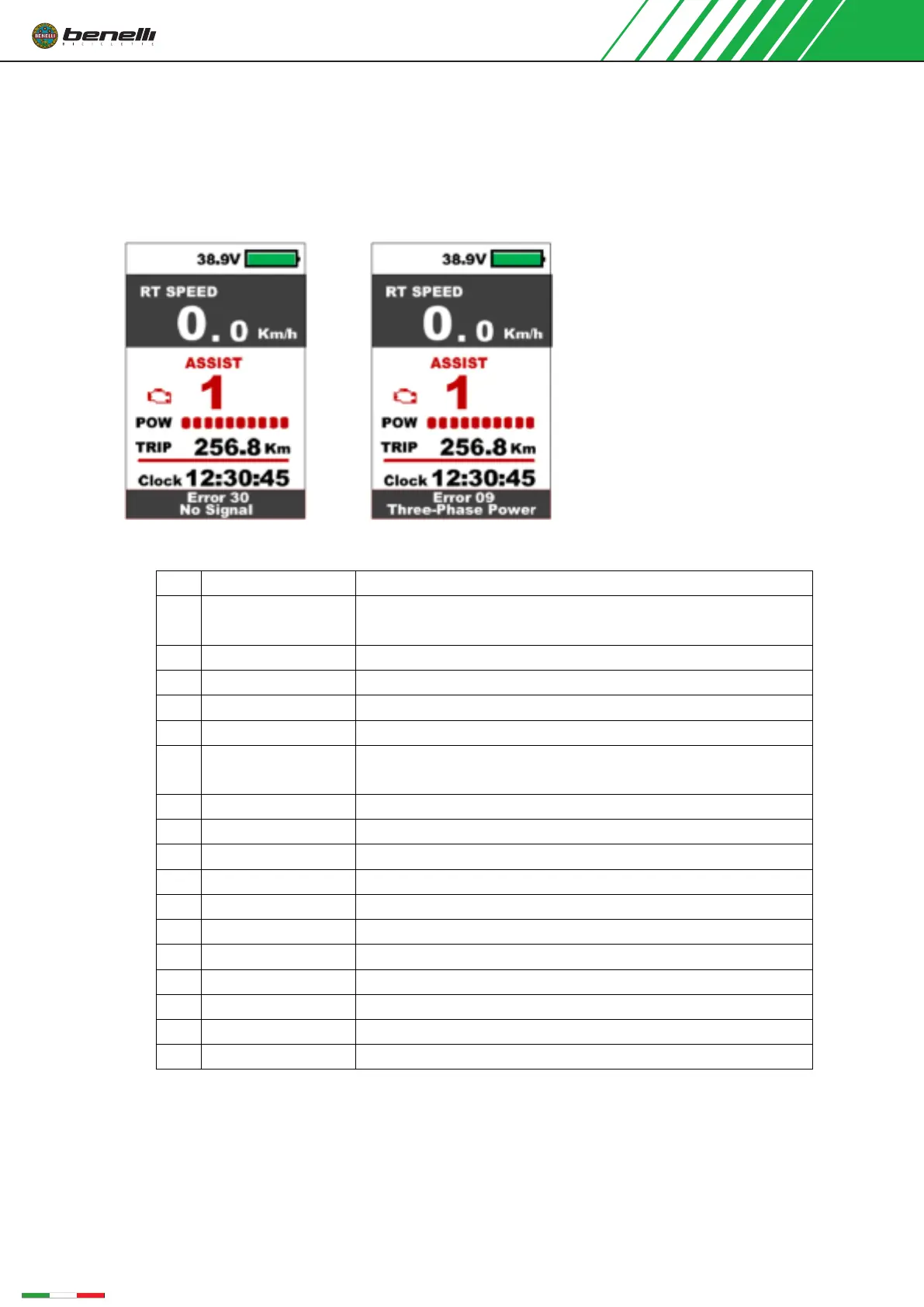

The display shows an error code for the failures. When a failure is detected, the LCD
screen displays an icon, and the error code at the bottom.
The error code table is as follows!
N O
Status data
Error code meaning
3 0x04
Shifter lever did not return (stopped at high
position)
4
0x05
Shift lever failure
6
0x07
Overvoltage protection
7 0x08 Motor Hall signal wire failure
8
0x09
Motor phase line failure
9 0x10
The controller temperature is high and reaches
the protection point
10
0x11
Controller temperature sensor failure
11 0x12 Current sensor failure
12
0x13
Temperature failure in the battery
13
0X14
The temperature sensor in the motor is faulty
13 0x21 Speed sensor failure
14 0x22 BMS
15 0x23 Headlight failure
16
0x24
Headlight sensor failure
17
0x25
Torque sensor torque signal failure
18
0x26
Torque sensor speed failure
19
0x30
Communication failure
