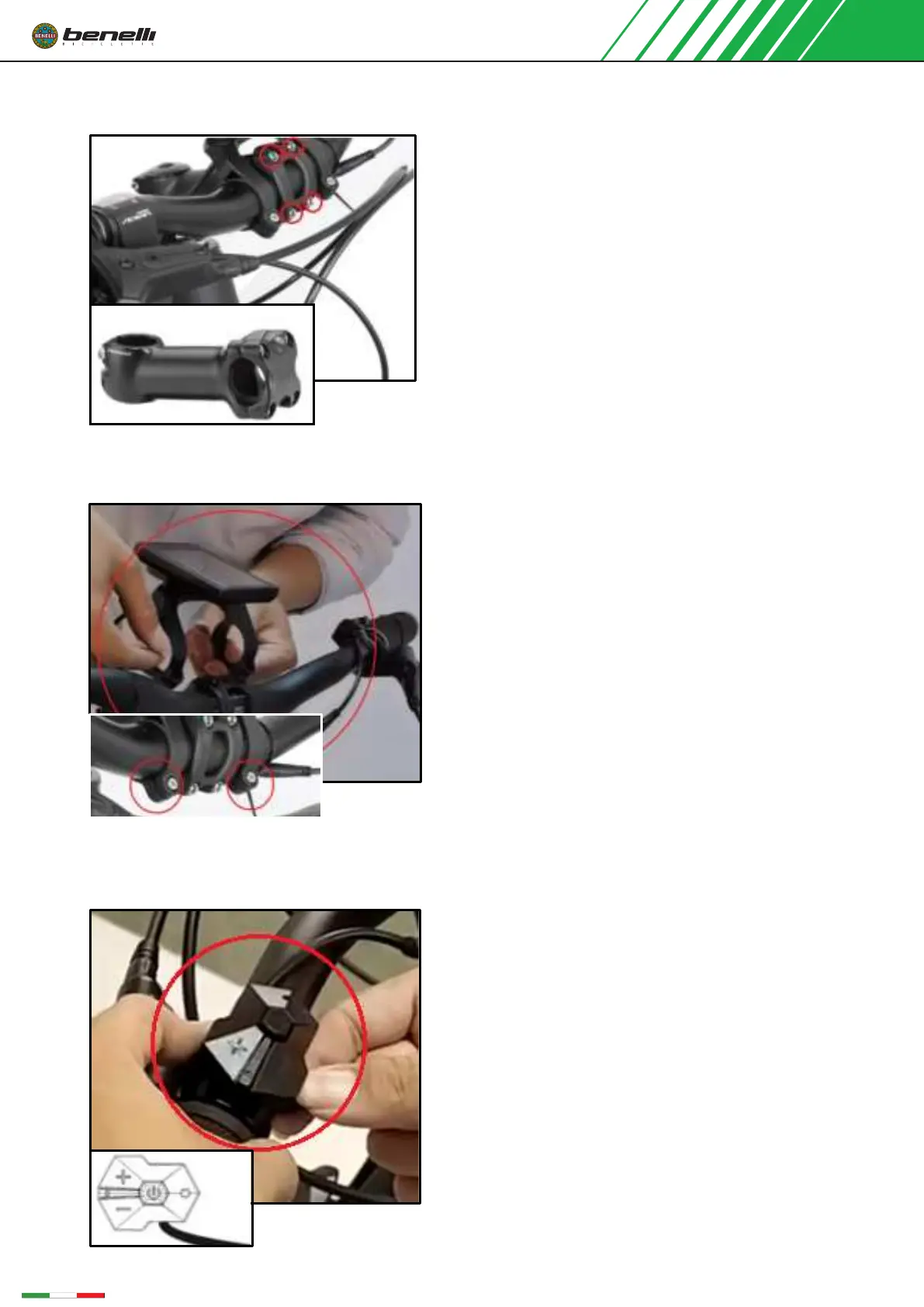

4.2 How to set up the handlebar and display
4. Unscrew the cap from the handlebar holding stem,
insert and adjust the position of handlebar. Then
tighten the screw back with the cap to secure the
handlebar in place.
5. Install the display on handlebar. Secure it in
place by tighten the screws
6. Then connect the blue wire on display to blue
wire on bike and green wire on display to green wire
on bike.
7. Install the control button on the left side of the
handlebar.
