Benelli Mantus MTB - 4 Quick Installation Instruction; How to Set up the Front Wheel

5
BENELLI BRAVO
4
1、Tyres

2、Rim

3、FrontHub

4、BrakeDisc

5、FrontFork 6、ForkHeadset 7、PowerSwitch
8、Frame
9、Saddle 10、SeatPost 11、SeatPostClamp
12、Battery
13、BrakeCaliper 14、CenterMotor 15、Chainwheel&Crank
16、Pedal
17、Chain 18、Reflector 19、Rearderailleur
20、Cassette
21、Speedsensor 22、HandleGrip 23、BrakeLever
24、Thumbshifter
25、Handlebar 26、Displayer 27、Stem
28、DisplayButton
BENELLI BRAVO
5
4
4
.
.
Quick Installation Instruction

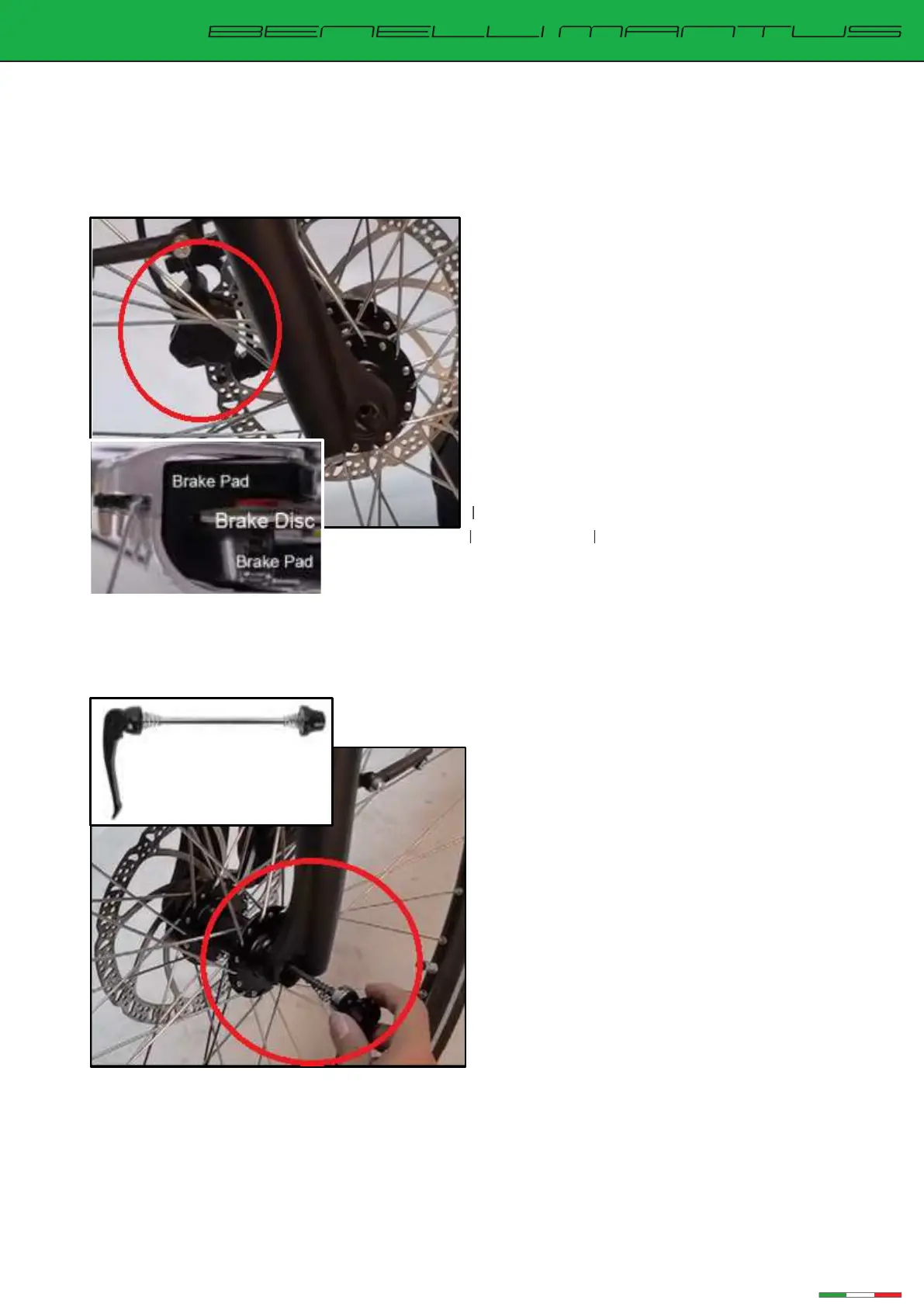

4.1 How to set up the front wheel
1. Insert the front wheel in-between the
front fork, make sure the brake disc sits
between the brake pads
2. Take the quick release lever, slide off the
ends, and insert the lever rod through the
hub from opposite side of the brake disc.
Then, slide the spring and nut onto the rod,
tighten the nut. Continue to tighten the
nut while opening and closing the lever until
a good resistance is achieved.
3. Make sure the lever is flipped up
towards the frame to avoid snapping
