NOTICE
Be careful not to damage the wheel
sensor or wheel sensor rotor; otherwi-
se, improper performance of the ABS
will result.
1
2

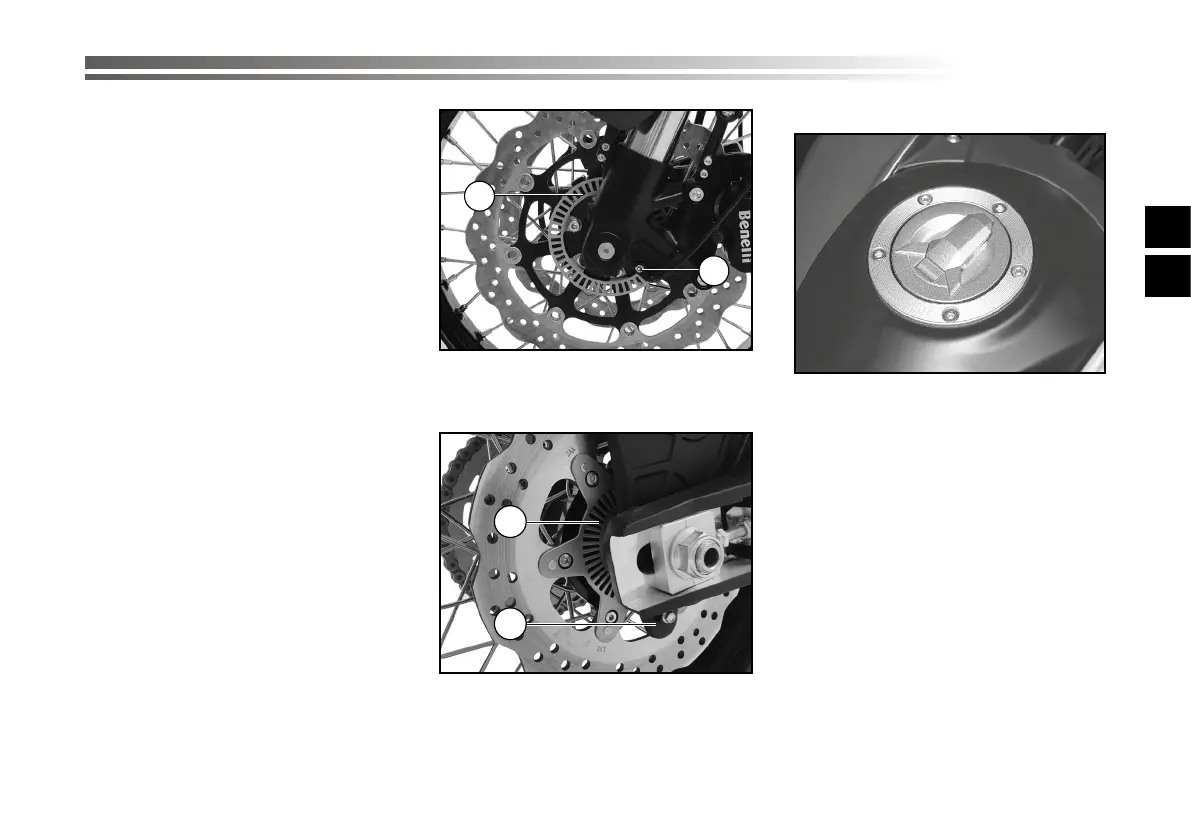

1. Front wheel speed sensor
2. Front sensor rotor
1. Rear wheel speed sensor
2. Rear sensor rotor
Fuel tank cap
To open the fuel tank cap
Lift the fuel tank cap lock cover, insert the
key into the lock, and then turn it 1/4 turn
clockwise. The lock opens and it is possi-
ble to raise the fuel cap.
To close the fuel tank cap
Close the fuel tank cap and turn the key
back to its original position by turning it
anticlockwise and then remove it.
