Introduction
This instrument is controlled by intelligent microcontroller
chip, with high accuracy and high reliability; it can be used
to measure grounding resistance of various power
facilities wiring, electrical equipment, lightning protection
equipment and other grounding devices, and it can also
measure ground voltage. (Note: This instrument is not
suitable for harsh outdoor environmental conditions, such
as raining, lightning, etc.)
Functions
backlight and battery detection function.
data holding.
It can be used for precise three-wire measurement or simple
two-wire measurement.
When measuring ground resistance, if C or E end of test lead is
not in good contact, "---- Ω" warning appears on LCD.
"OL" stands for over range.
Double insulation or reinforced insulation safety structure.

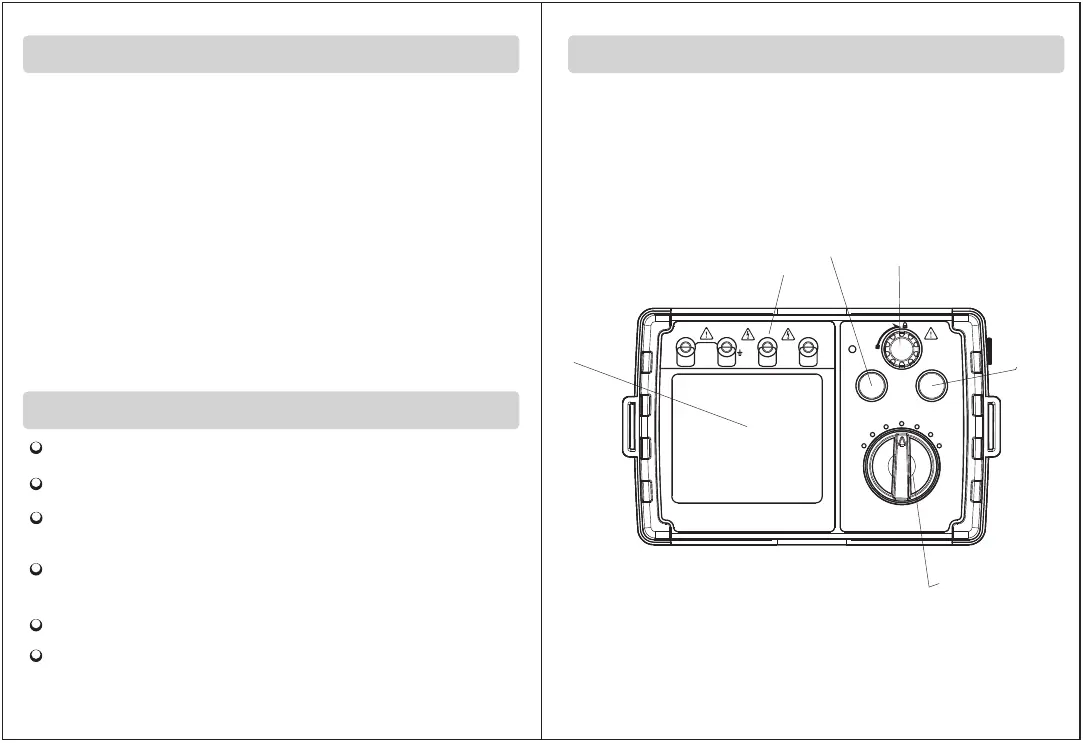

Name of parts(Figure 1)
TEST
HOLD
HV
PRESS
TO TE ST
CAT.III 600V
LOCK
OFFOFF
2000Ω
(2WIR ES)
2000Ω
200Ω
20Ω
EARTH
E
( )
P SACV
( )
C H
MAX
AC200V
VOLTAGE
①
②
④
⑤
③
⑥
-02- -03-
SAVE
To Next Page
