User's handbook
TOM
A B C
D E F
Safety rules • Do not stand in the movement area of the gate.
• Do not let children play with controls and near the gate.
• Should operating faults occur, do not attempt to repair the fault but call a qualified techni-
cian.
Manual and emergency
manoeuvre
In the event of a power cut or breakdown, proceed as follows to operate the wings manually

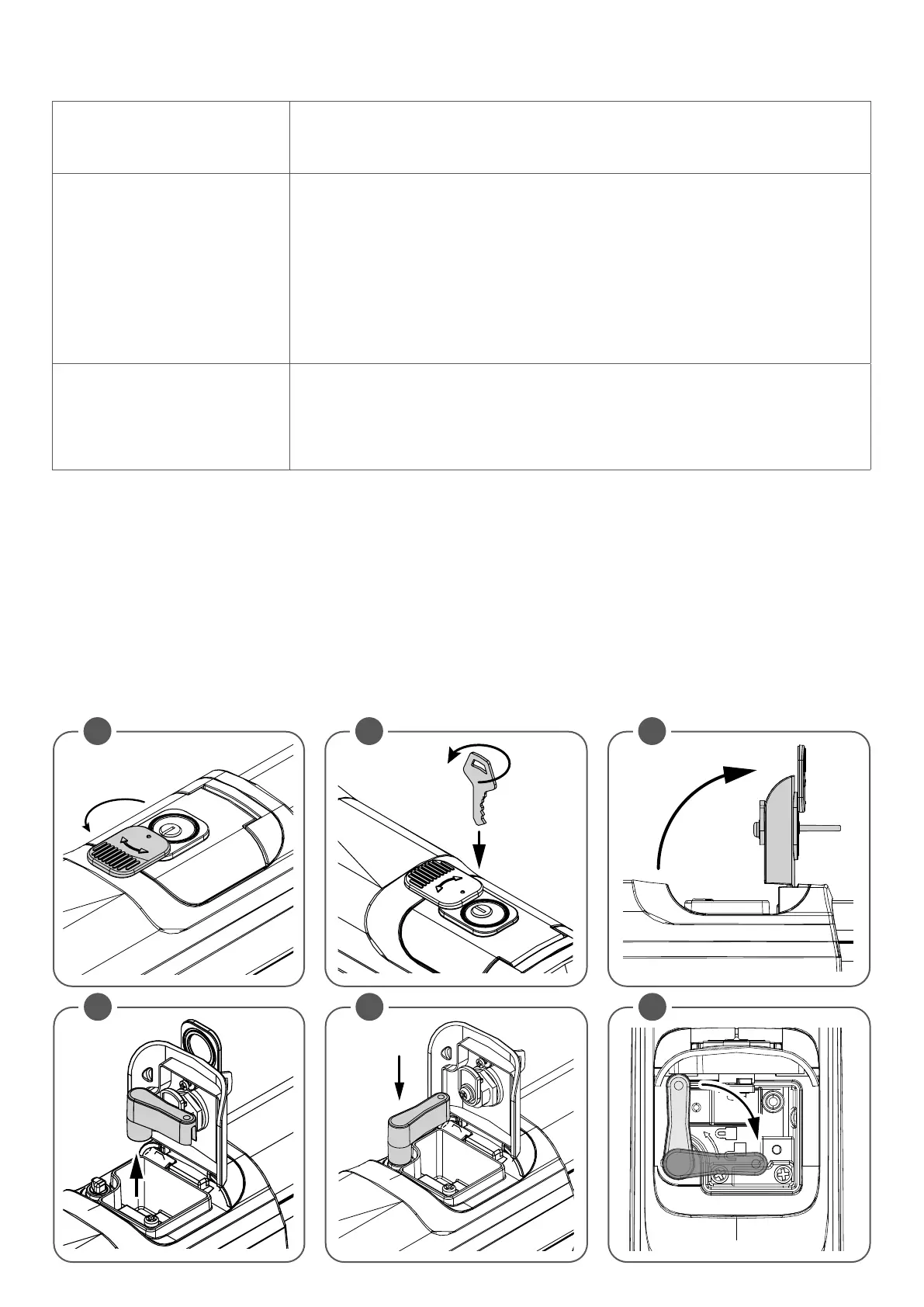

(refer to figures A*,B*,C,D,E):
• Rotate the protective door (fig. A*)
• After inserting the customized key C, turn it anti-clockwise (fig. B*)
• Open the protective flap of the release mechanism (Fig. C) and pull out the supplied release
key (Fig. D).
• Insert the special release key supplied (fig. E) and turn it 90°, as shown in fig. F.
• It is now possible to open/close the wing manually.
• To restore automatic operation, return the release key to its initial position.
• Remove the release lever and close the protective door.
Manteinance • Every month check the good operation of the emergency manual release.
• It is mandatory not to carry out extraordinary maintenance or repairs as accidents may be
caused.These operations must be carried out by qualified personnel only.
• The operator is maintenance free but it is necessary to check periodically if the safety de-
vices and the other components of the automation system work properly. Wear and tear of
some components could cause dangers.
