BenQ BL2423PT - Level 2 Service: Parts Replacement; Product Exploded View and Parts List

65
Level 2 Circuit Board and Standard Parts Replacement

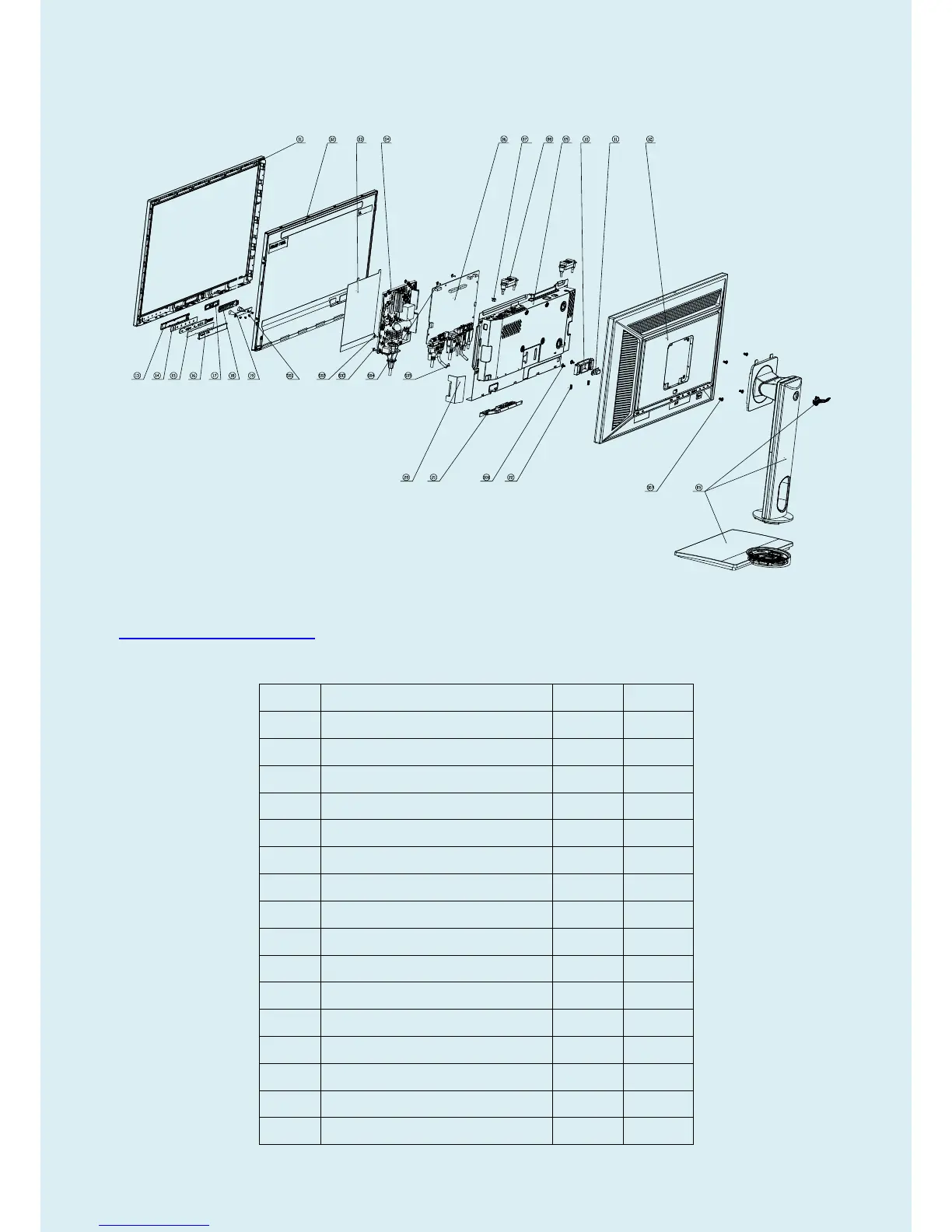

Product Exploded View
Note: The parts information listed below are for reference only, and are subject to change without notice. Please go
to http://cs.tpv.com.cn/hello1.asp for the latest information.
Item
Description
Qty
Unit
1
BEZEL
1
2
PANEL
1
3
INSULATING SHEET
1
4
ADAPTER BOARD NA
1
5
stand-base ass'y
1
6
MAIN BOARD
1
7
RUBBER PAD
1
8
SPEAKER
1
9
MAINFRAME
1
10
STAND_BUTTON
1
11
Cover_BTM
1
12
REAR_COVER
1
13
LENS
1
14
TAPE_DOUBLE
1
15
INSULATING SHEET
1
16
COVER_KEY
1
