Assembly

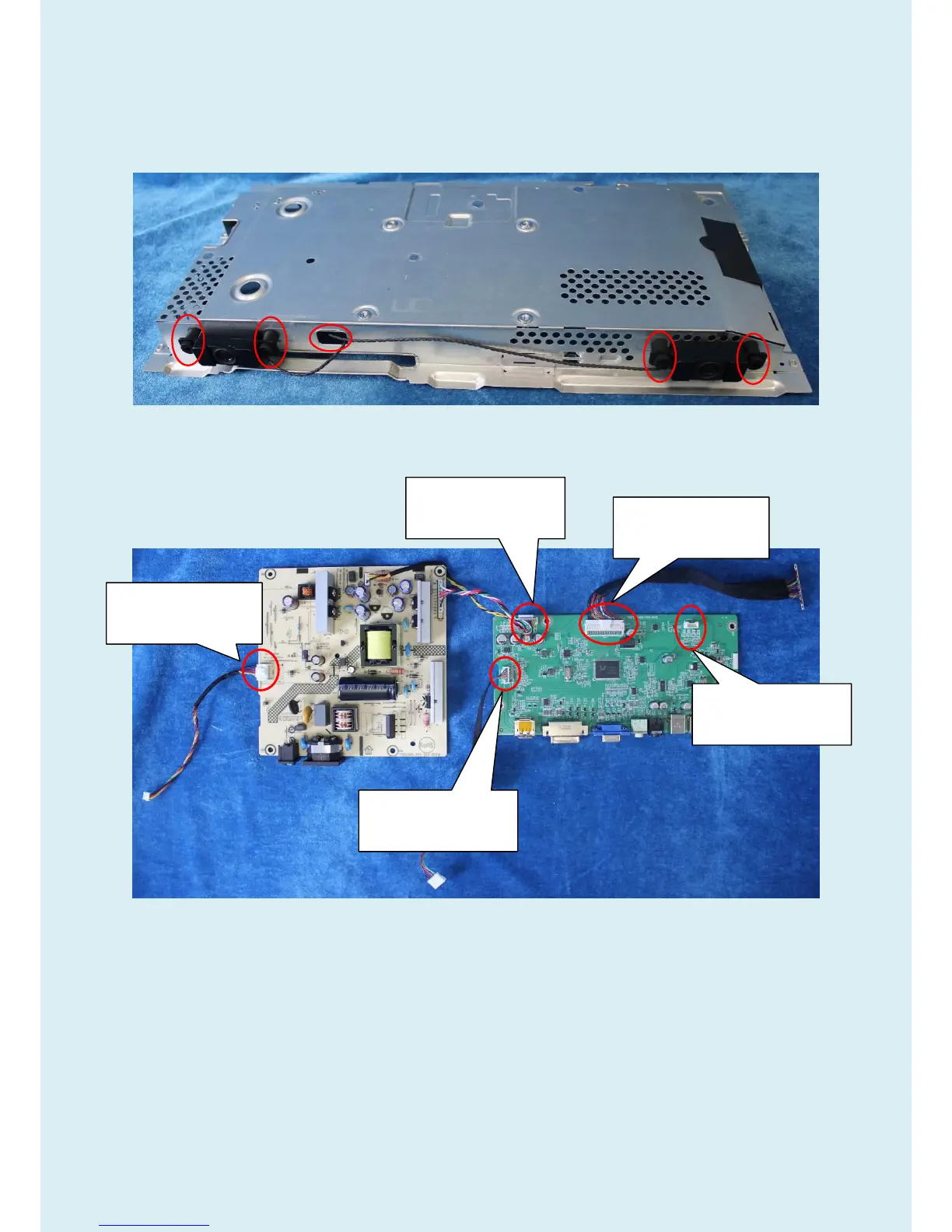

1) Assemble the speaker on the main frame
Put at the foot of the speaker strongly. The wire of the speaker will be traversed from the middle hole as follow
picture. The wire will connect main board and speaker.
2) Assemble the wires
Assemble the wire (the power board to main board), the wire (speaker to main board) and LVDS cables (the
Wire from main board will connect to panel).
