11 How to assemble your monitor hardware
You should position the monitor and angle the screen to
minimize unwanted reflections from other light sources.
2. Connect the video cable.

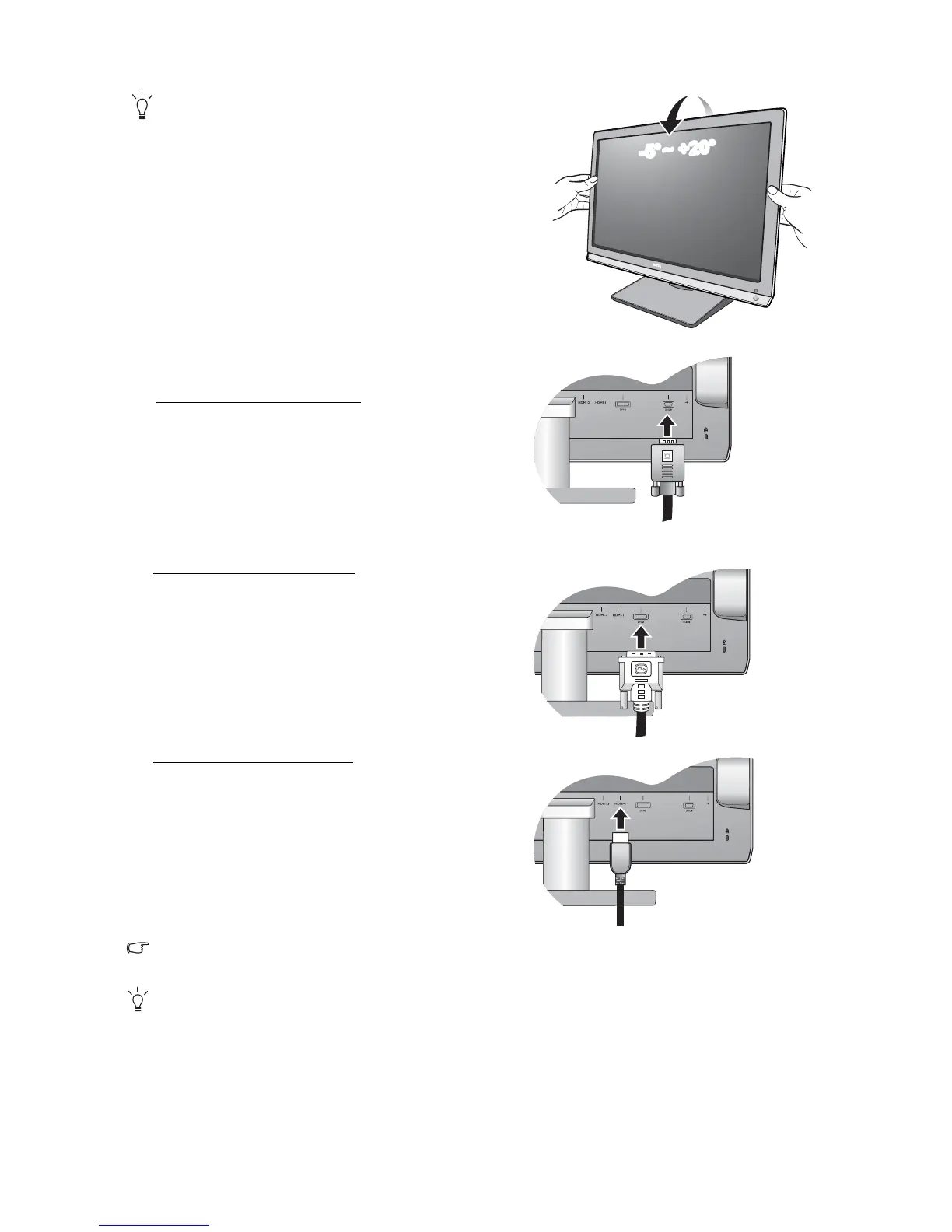

To Connect the D-Sub Cable
Connect the plug of the D-Sub cable (at the end without
the ferrite filter) to the monitor video socket. Connect the
other end of the cable (at the end with the ferrite filter) to
the computer video socket.
Tighten all finger screws to prevent the plugs from
accidently falling out during use.
To Connect the DVI-D Cable
Connect the plug of the DVI-D cable (at the end without
the ferrite filter) to the monitor video socket. Connect the
other end of the cable (at the end with the ferrite filter) to
the computer video socket.
Tighten all finger screws to prevent the plugs from
accidently falling out during use.
To Connect the HDMI Cable
Connect the plug of the HDMI cable to one of the two
HDMI ports on the monitor.
Connect the other end of the cable to the HDMI port of a
digital output device.
The video cable included in your package and the socket illustrations on the right may vary depending on
the LCD model.
If there is more than one video transmission method available to you, you might want to take the picture
quality of each video cable into consideration before making the connection.
- Better quality: HDMI / DVI-D
- Good quality: D-Sub
-5
O
~ +20
O
