6.3 Outside dimension specification:
Testing
Order
Inspection Item Specification
Note
Name Unit Tolerance
1 Outside dimension (vertical) mm ± 0.5 mm
(Please refer to the product
spec for detailed dimension
definition)
Note 1
2 Outside dimension (horizontal) mm ± 0.5 mm
3 Outside dimension (thickness) mm ± 0.5 mm
4 Weight g ± 50 g
5 Display tolerance ABS (a-b) mm 1.0 mm (Max.) Note 2
6 Display tolerance ABS (c-d) mm 1.0 mm (Max.) Note 2
7 Panel gap (Y) mm 0.8 mm (Max.) Note 3
Note 1: Thickness doesn’t include bending reason.

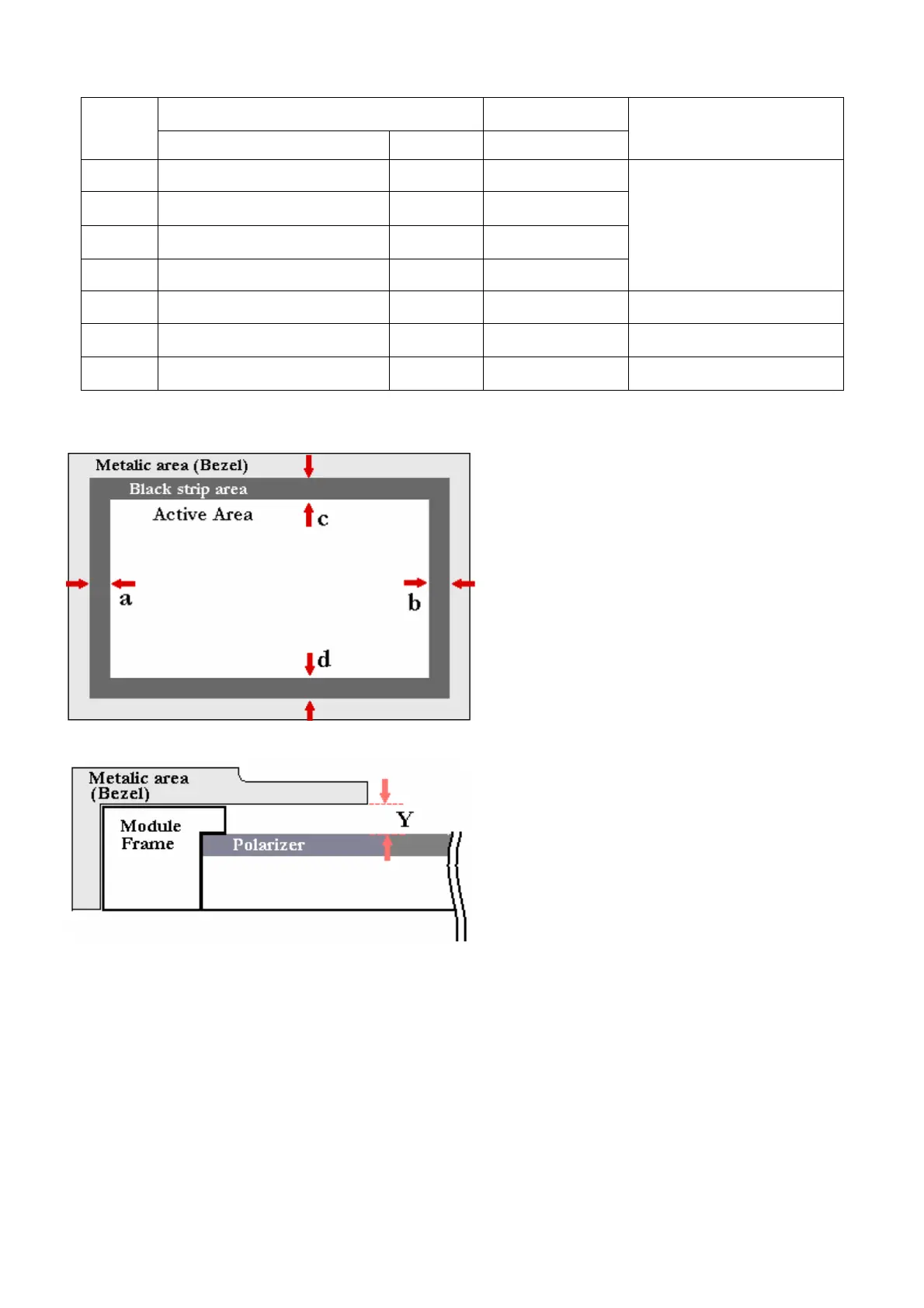

Note 2: Display tolerance definition
Note 3: Panel gap (Y) definition
7 Inspection judgments:
7.1 The judgments of the shipped lot (acceptance or rejection) should follow the sampling plan of MIL-STD-105E,
single sampling, normal inspection, level II.
7.2 If the number of defects is equal to or less than the applicable acceptance level, the lot shall be accepted.
7.3 If the number of defects is more than the applicable acceptance level, the lot shall be rejected and the buyer
should inform the seller of the result of incoming inspection in writing
8 Precautions:
Please pay attention to the following items when you use the LCD Module with back-light unit.
8.1 Do not twist or bend the module and prevent the unsuitable external force for display module during assembly.
8.2 Adopt measures for good heat radiation. Be sure to use the module within the specified temperature.

BenQ GL950A Specifications

General

3D	No
HD type	-
Pixel pitch	0.3 x 0.3 mm
Aspect ratio	16:9
Display diagonal	18.5 \
Display resolution	1366 x 768 pixels
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	12000000:1
Display number of colors	16.78 million colors
Viewing angle, horizontal	170 °
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1366 x 768
AC (power) in	Yes
DVI-D ports quantity	0
Tilt angle range	-5 - 15 °
Cable lock slot type	Kensington
Number of OSD languages	17
Panel mounting interface	100 x 100 mm
Power consumption (standby)	0.3 W
Power consumption (typical)	15 W
Product color	Black
Package depth	365 mm
Package width	116 mm
Package height	518 mm
Package weight	4300 g
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	163.9 mm
Height (with stand)	362.15 mm
Depth (without stand)	57 mm
Width (without stand)	459.49 mm
Height (without stand)	282.29 mm
Weight (without stand)	2900 g
