BenQ GL950A Service Manual

32
Adjustment / Alignment Procedure

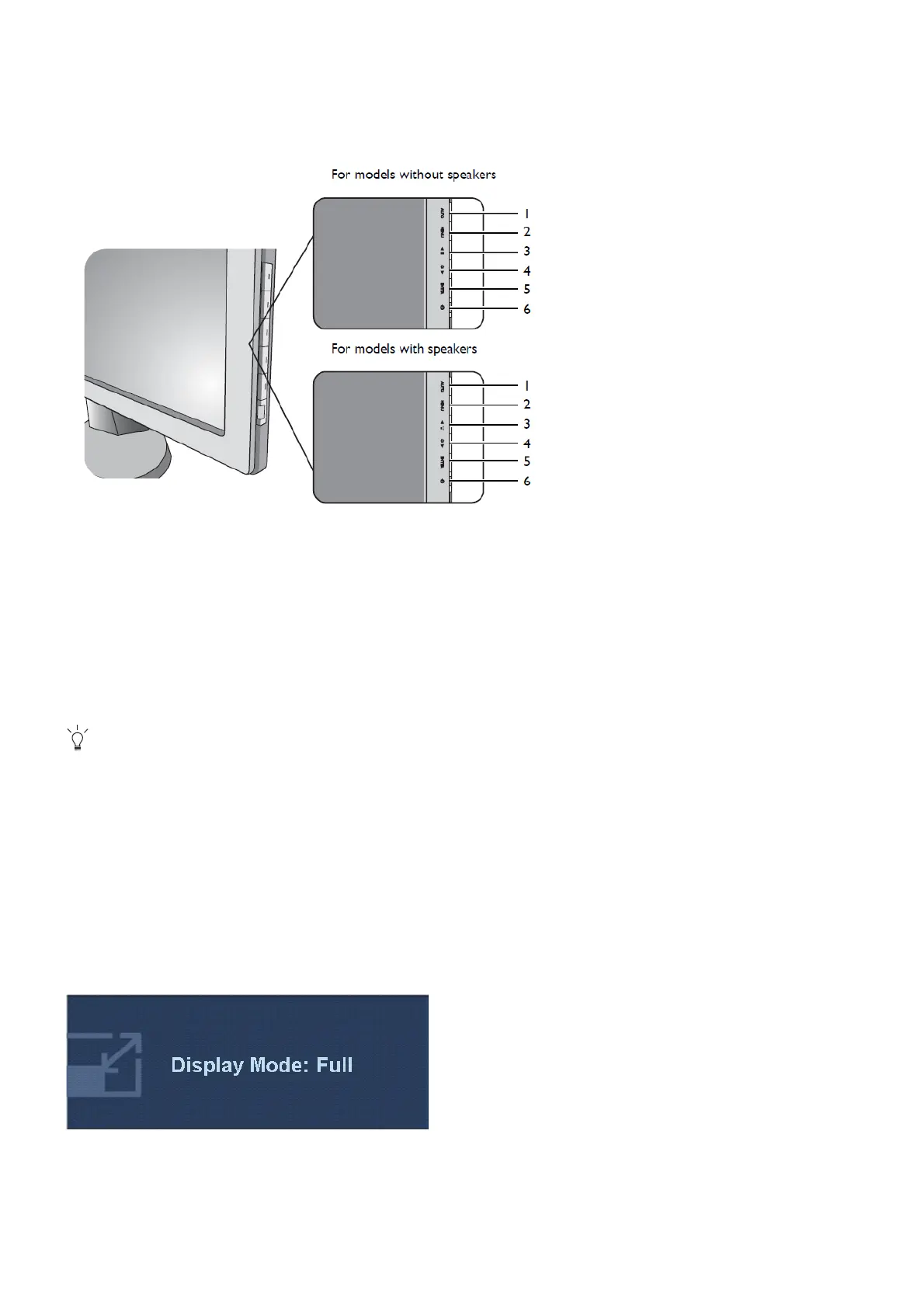

The Control Panel
Note: The audio just for G950AM/GL950AM.
1. AUTO: Adjusts vertical position, phase, horizontal position and pixel clock automatically.
2. MENU key: Activates OSD main menu and return to the previous menu or exit OSD.
3. ▲/Display Mode key (for G950A/GL950A): For Up/Increase adjustment. The key is the hot key for Display Mode.
▼/Volume key (for G950AM/GL950AM): For Up/Increase adjustment. The key is the hot key for Volume.
4.▼ /Mode key: For Down/Decrease adjustment. The key is the hot key for Mode.
5. ENTER key: Enters sub menus and select items.
6. Power: Turns the power on or off.
OSD = On Screen Display.
The hot keys will display a graduated scale for adjusting the value of that setting, and will only operate while the
OSD menu is not currently displaying. Hot key displays will disappear after a few seconds of no key activity.
Hot key mode
The monitor keys perform as hot keys to provide direct access to particular functions whenever the menu isn't
currently displaying on-screen.
Display Mode hot key (for G950A/GL950A)
Press the ▲ key continually to switch between Full and Aspect. The setting will take effect immediately.

BenQ GL950A Specifications

General

3D	No
HD type	-
Pixel pitch	0.3 x 0.3 mm
Aspect ratio	16:9
Display diagonal	18.5 \
Display resolution	1366 x 768 pixels
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	12000000:1
Display number of colors	16.78 million colors
Viewing angle, horizontal	170 °
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1366 x 768
AC (power) in	Yes
DVI-D ports quantity	0
Tilt angle range	-5 - 15 °
Cable lock slot type	Kensington
Number of OSD languages	17
Panel mounting interface	100 x 100 mm
Power consumption (standby)	0.3 W
Power consumption (typical)	15 W
Product color	Black
Package depth	365 mm
Package width	116 mm
Package height	518 mm
Package weight	4300 g
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	163.9 mm
Height (with stand)	362.15 mm
Depth (without stand)	57 mm
Width (without stand)	459.49 mm
Height (without stand)	282.29 mm
Weight (without stand)	2900 g
