BenQ GL950A Service Manual

35
Item Function Operation Range
Auto
Adjustment
Optimizes and adjusts the screen settings automatically for you.
The AUTO key is a ‘hot key’ for this function.
Press the ENTER
key to select this
option and make
adjustment.
H. Position Adjusts the horizontal position of the screen image.
Press ▲ or ▼
keys to adjust the
value.
0 to 100
V. Position Adjusts the vertical position of the screen image.
0 to 100
Pixel Clock
Adjusts the pixel clock frequency timing to synchronize with the
analog input video signal. Not applicable to a digital input signal.
0 to 100
Phase
Adjusts the pixel clock phase timing to synchronize with the
analog input video signal. Not applicable to a digital input signal.
0 to 63

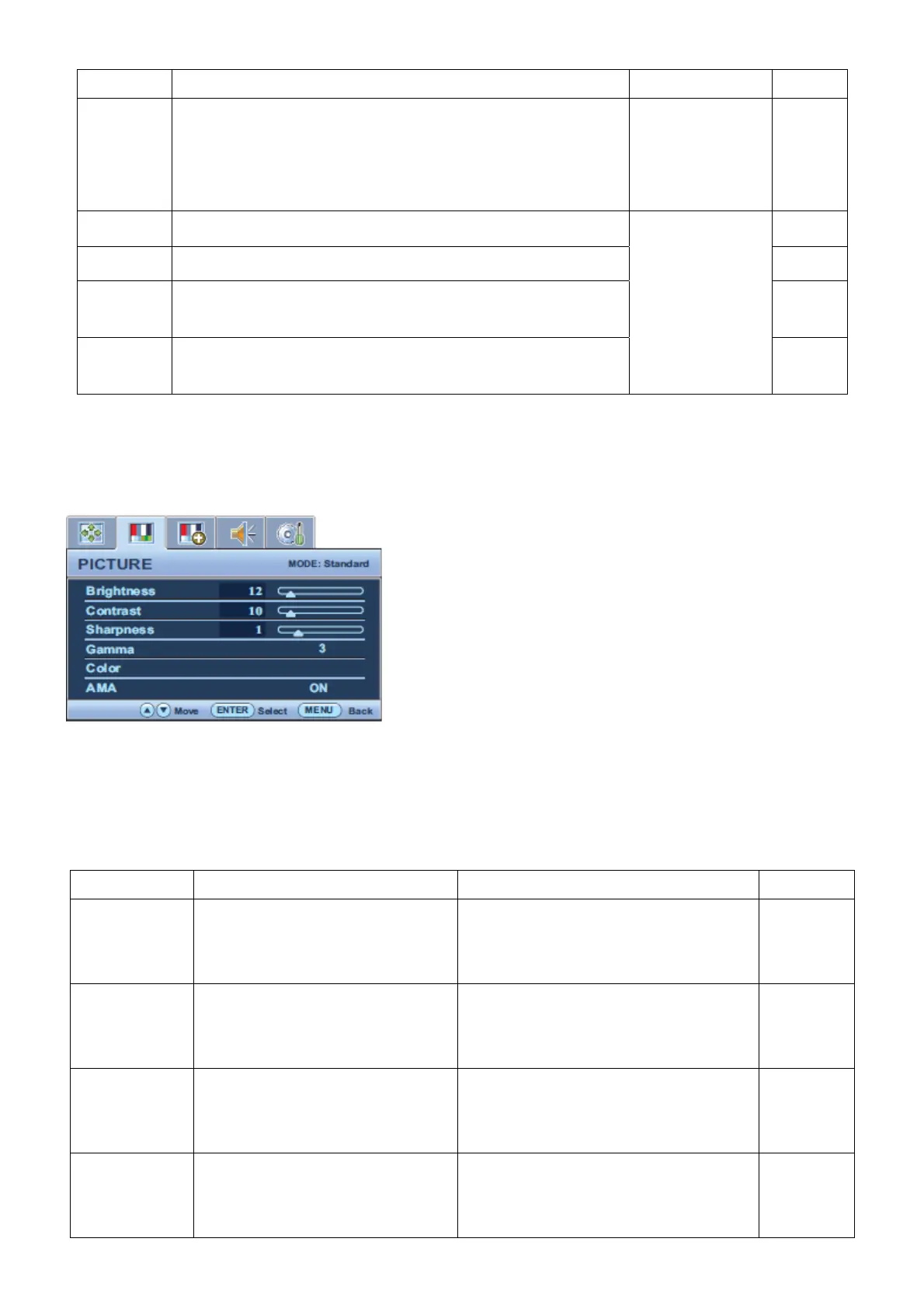

Picture Menu
Available menu options may vary depending on the input sources, functions and settings. Menu options that are not
available will become grayed out.
1. Press the MENU key to display the main menu.
2. Press the ▲ or ▼ keys to select PICTURE and then press the ENTER key to enter the menu.
3. Press the ▲ or ▼ keys to move the highlight to a menu item and then press the ENTER key to select that item.
4. Press the ▲ or ▼ keys to make adjustments or selections.
5. To return to the previous menu, press the MENU button.
Item Function Operation Range
Brightness
Adjusts the balance between light
and dark shades.
Press the ▲ key to increase the
brightness and press the ▼ key to
decrease the brightness.
0 to 100
Contrast
Adjusts the degree of difference
between darkness and lightness.
Press the ▲ key to increase the contrast
and press the ▼ key to decrease the
contrast.
0 to 100
Sharpness
Adjusts the clarity and visibility of
the edges of the subjects in the
image.
Press the ▲ key to improve the crispness
of the display and press the ▼ key to
have softness effect on the display.
1 to 5
Gamma
Adjusts the tone luminance. The
default value is 3 (the standard
value for Windows).
Press the ▲ key to increase the gamma
value (Tone becomes darker) and press
the▼ key to decrease the gamma value
1~ 5

BenQ GL950A Specifications

General

3D	No
HD type	-
Pixel pitch	0.3 x 0.3 mm
Aspect ratio	16:9
Display diagonal	18.5 \
Display resolution	1366 x 768 pixels
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	12000000:1
Display number of colors	16.78 million colors
Viewing angle, horizontal	170 °
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1366 x 768
AC (power) in	Yes
DVI-D ports quantity	0
Tilt angle range	-5 - 15 °
Cable lock slot type	Kensington
Number of OSD languages	17
Panel mounting interface	100 x 100 mm
Power consumption (standby)	0.3 W
Power consumption (typical)	15 W
Product color	Black
Package depth	365 mm
Package width	116 mm
Package height	518 mm
Package weight	4300 g
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	163.9 mm
Height (with stand)	362.15 mm
Depth (without stand)	57 mm
Width (without stand)	459.49 mm
Height (without stand)	282.29 mm
Weight (without stand)	2900 g
