BenQ GW2470H User Manual

61
Level 2 Circuit Board or Standard Parts Replace ment

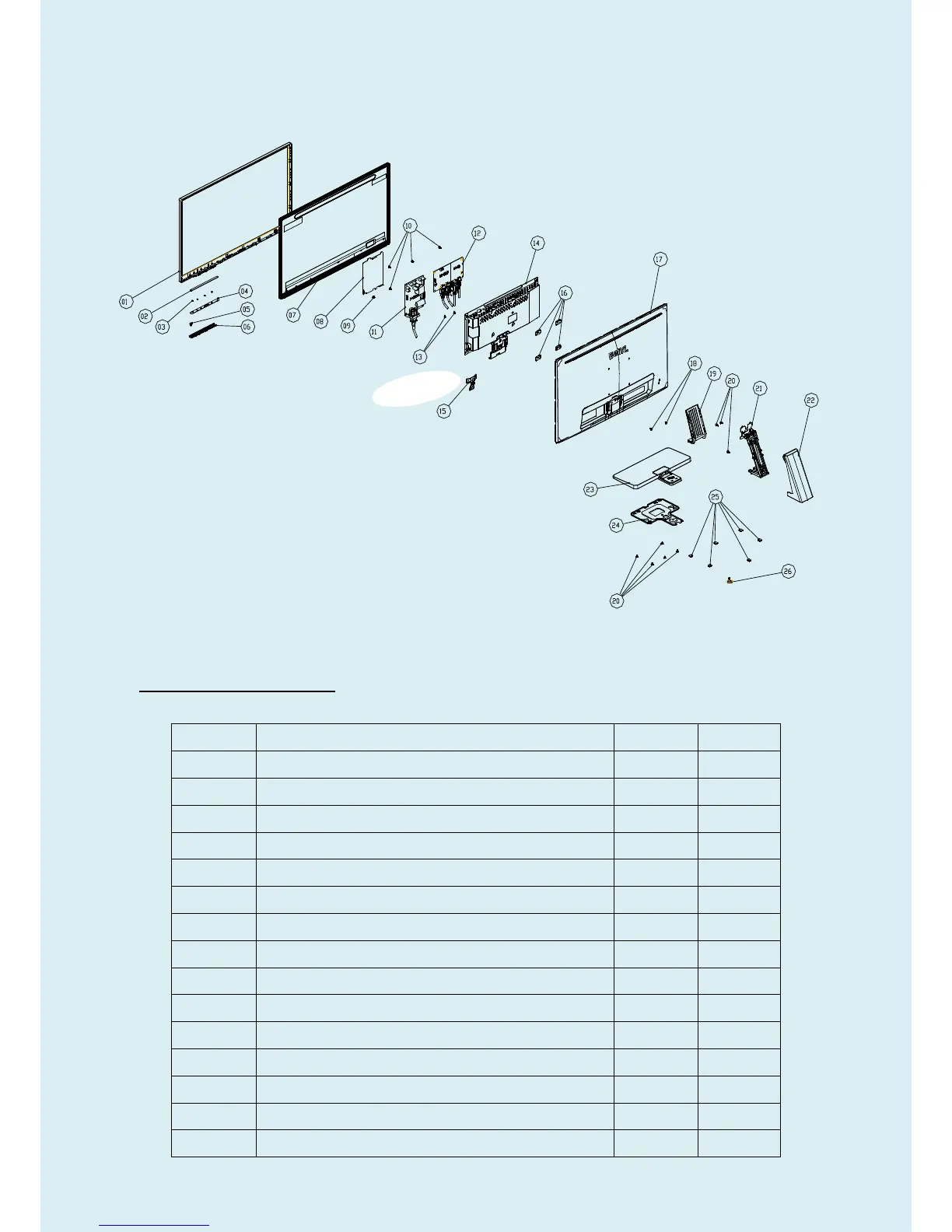

Product Exploded View
Note: The parts information listed below are for reference only, and are subject to change without notice. Please
go to http://cs.tpv.com.cn/hello1.asp for the latest information.
Item
Description
Qty
Unit
1
BEZEL
1
PCS
2
SPONGE
1
PCS
4
KEY BOARD
1
PCS
5
LENS
1
PCS
6
KEY
1
PCS
7
LCD PANEL
1
PCS
8
INSULATING SHEET
1
PCS
11
ADAPTER BOARD
1
PCS
12
MCU ASSY
1
PCS
14
MAINFRAME
1
PCS
15
Button
1
PCS
16
PLATE
4
PCS
17
REAR_COVER
1
PCS
19
STAND_FRONT
1
PCS
21
HINGE ASS'Y
1
PCS

BenQ GW2470H Specifications

General

3D	No
Panel type	AMVA+(SNB)
Color gamut	72 %
Pixel pitch	0.274 x 0.274 mm
Aspect ratio	16:9
Screen shape	Flat
Display surface	-
Display diagonal	23.8 \
Display technology	LED
Contrast ratio (dynamic)	20000000:1
Contrast ratio (typical)	3000:1
Display number of colors	16.78 million colors
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
On/off switch	Yes
Active display area (W x H)	527 x 296 mm
USB Type-A downstream ports quantity	0
Sustainability certificates	EPEAT Silver, ENERGY STAR
AC input voltage	90 - 264 V
Annual energy consumption	39 kWh
Power consumption (average)	27 W
Power consumption (standby)	- W
Power consumption (typical)	23 W
Power consumption (PowerSave)	0.5 W
Tilt angle range	-5 - 20 °
Number of OSD languages	17
Panel mounting interface	100 x 100 mm
Cables included	HDMI, VGA
Product color	Black
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 90 %

Weight and Dimensions

Depth (with stand)	189 mm
Height (with stand)	425 mm
Depth (without stand)	51 mm
Width (without stand)	553 mm
Height (without stand)	329 mm
Weight (without stand)	4000 g
