BenQ MX550 - Projector Exterior View

8 Introduction

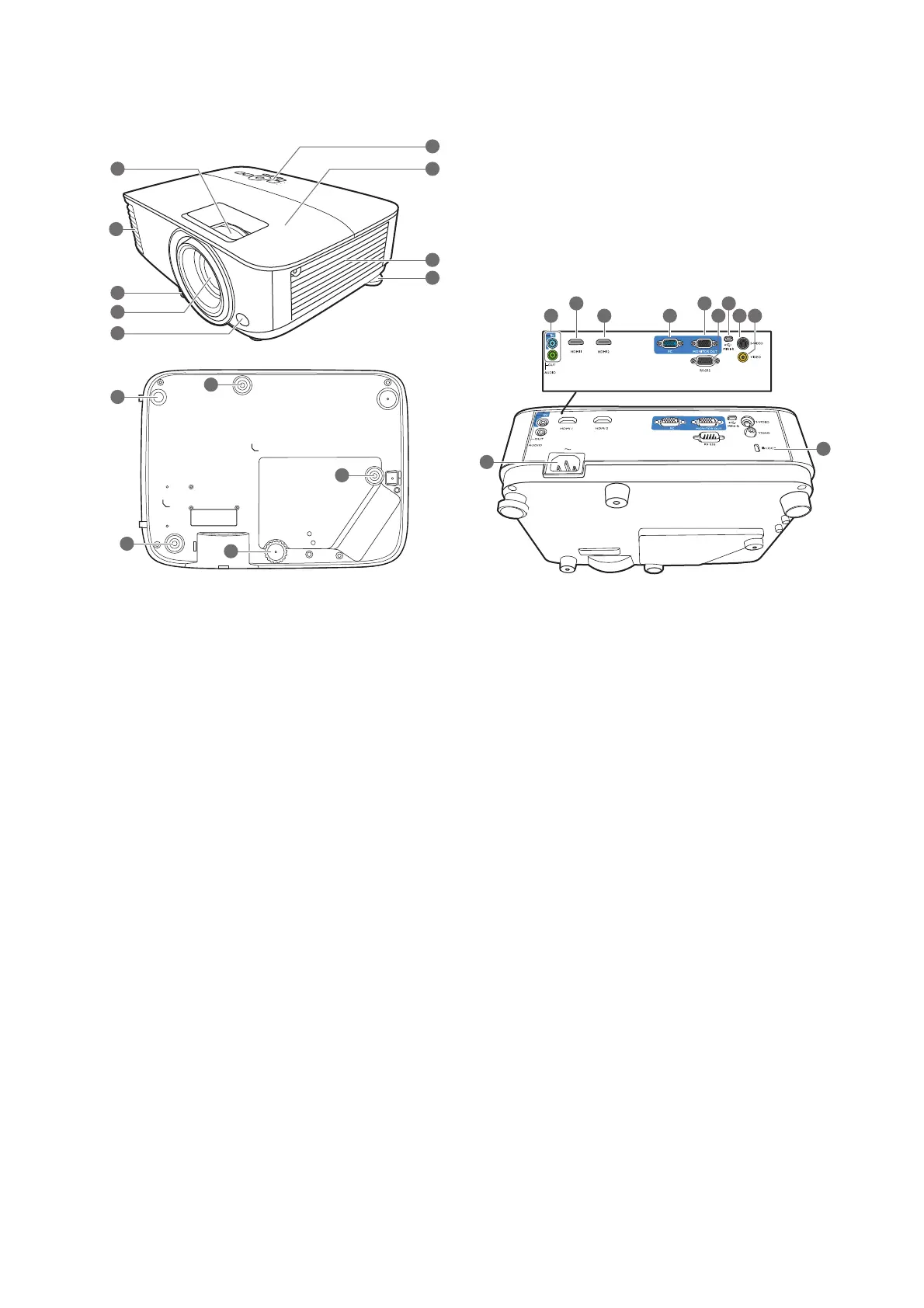

Projector exterior view
1. Focus ring and Zoom ring
2. Vent (air exhaust)
3. Adjuster feet
4. Projection lens
5. IR remote sensor
6. External control panel
(See Controls and functions on page 9.)
7. Lamp cover
8. Vent (air inlet)
9. Audio input jack
Audio output jack
10. HDMI 1 input port
11. HDMI 2 input port
12. RGB (PC) signal input jack
13. RGB (PC) signal output jack
14. RS-232 control port
15. USB Mini-B port
16. S-Video input jack
17. Video input jack
18. AC power jack
19. Kensington anti-theft lock slot
20. Wall mount holes
