14 Positioning your projector

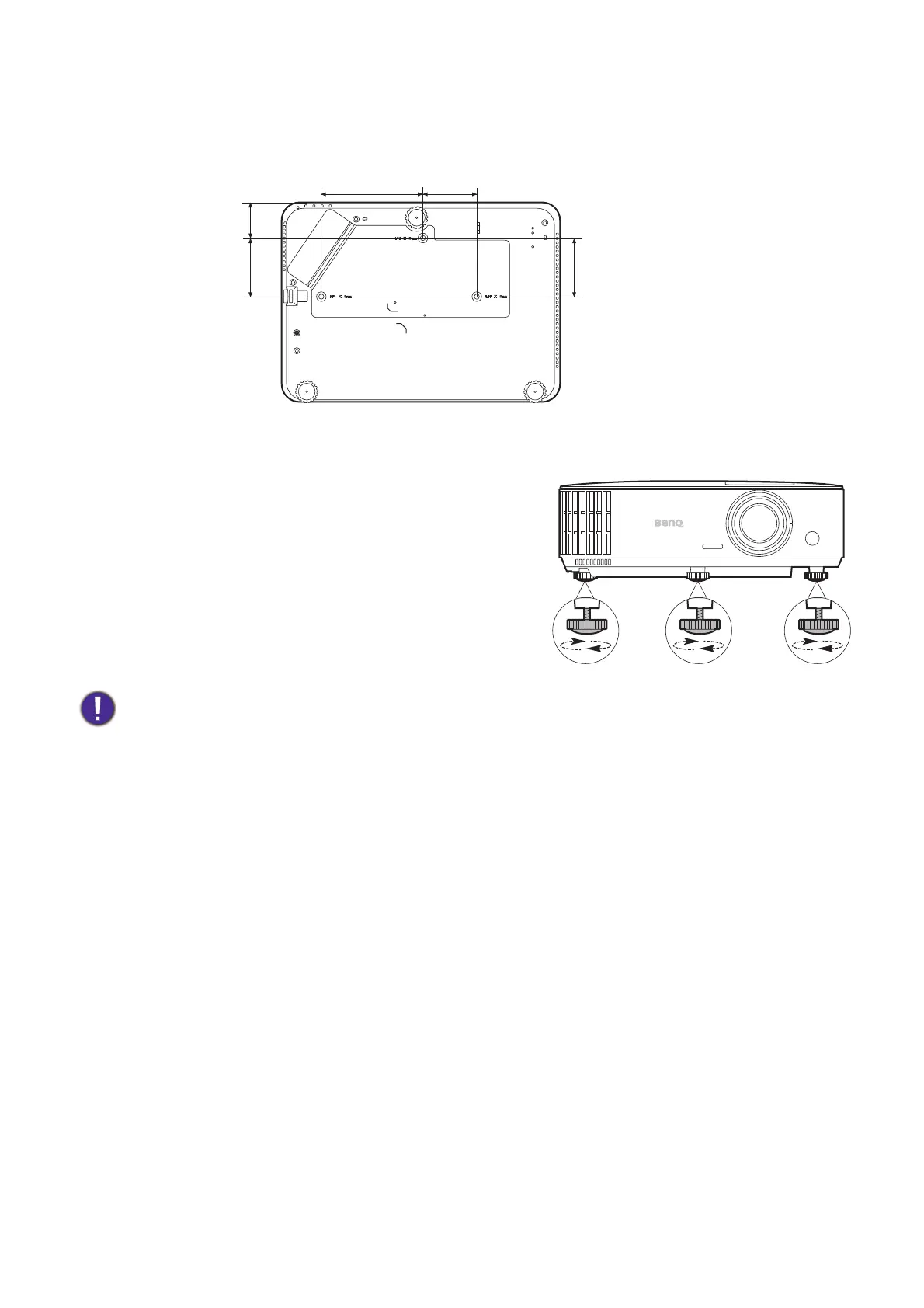

Ceiling/Wall mount installation diagram
Adjusting the projected image
Adjusting the projection angle
If the projector is not placed on a flat surface or the screen
and the projector are not perpendicular to each other, the
projected image becomes trapezoidal. You can adjust the
adjuster feet to fine-tune the horizontal angle.
To retract the feet, screw the adjuster feet in a reverse
direction.
Do not look into the lens while the lamp is on. The strong light from the lamp may cause damage to your eyes.
Ceiling/Wall mount screw: M4
(Max L = 25 mm; Min L = 20 mm)
Unit: mm
65.89
65.89
40.27
113.54 60
