Inputs &
Outputs
Signals Video Format
Connector types
OSD
TV Analog TV
NTSC
F-TYPE
TV
VIDEO Video + L/R Audio CVBS
RCAx1+ RCAx2
(Red, White)
VIDEO
S-VIDEO S-VIDEO+ L/R Audio Y/C Mini Din 4 Pin S-VIDEO
YPbPr
Component
(Y, Pb/Cb, Pr/Cr)
+ L/R Audio
480i, 576i, 480p,
576p, 720p, 1080i
RCAx3+RCAx2
(Red, White)
YPbPr
HDMI
Digit audio and video
480p, 576p, 720p,
1080
HDMI type A HDMI
VGA
VGA IN+ PC AUDIO IN
Analog RGB VGA 15 Pin VGA
note:

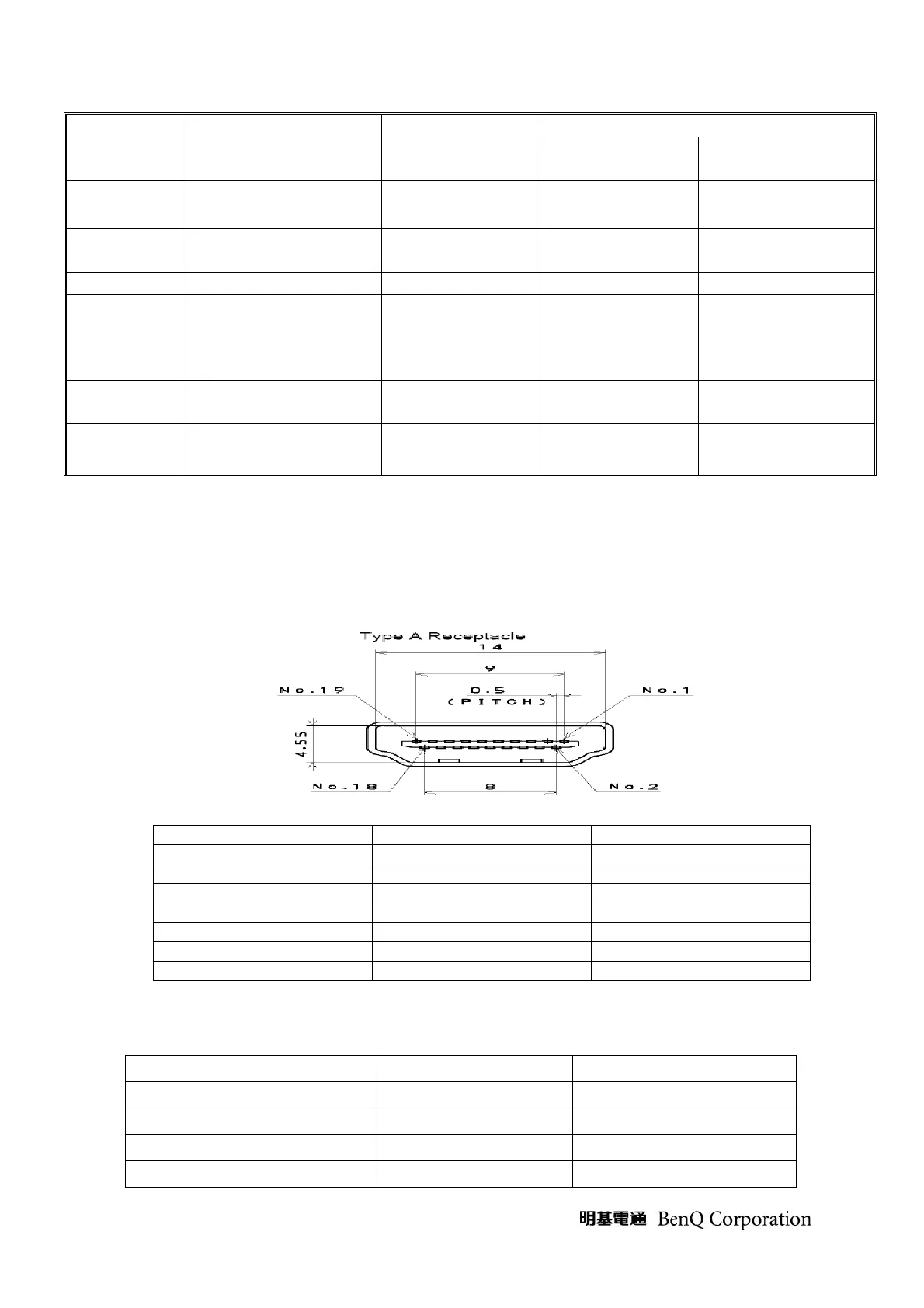

A. HMDI connector is a type A receptacle for video/audio mode。
1. TMDS Data 2+ 9. TMDS Data 0- 17. CEC/GND
2. TMDS Data 2 shield 10. Clock + 18. +5V Power
3. TMDS Data 2- 11. Clock shield 19. Hot Plug Detect
4. TMDS Data 1+ 12. Clock -
5. TMDS Data 1 shield 13. CEC
6. TMDS Data 1- 14. NC
7. TMDS Data 0+ 15. DDC CLK
8. TMDS Data 0 shield 16. DDC DATA
B. D-Sub input connector pin. (this function can also provide for HDTV。)
1.
Red Video 6. Red return 11. GND
2. Green Video 7. Green return 12. SDA For DDC1/2B
3. Blue Video 8. Blue return 13. H-sync
4. GND 9. +5V from PC 14. V-sync.
5. Vdd from PC for DDC 10. Sync. GND 15. SCL For DDC1/2B
