C. RCA jacks are all female type.

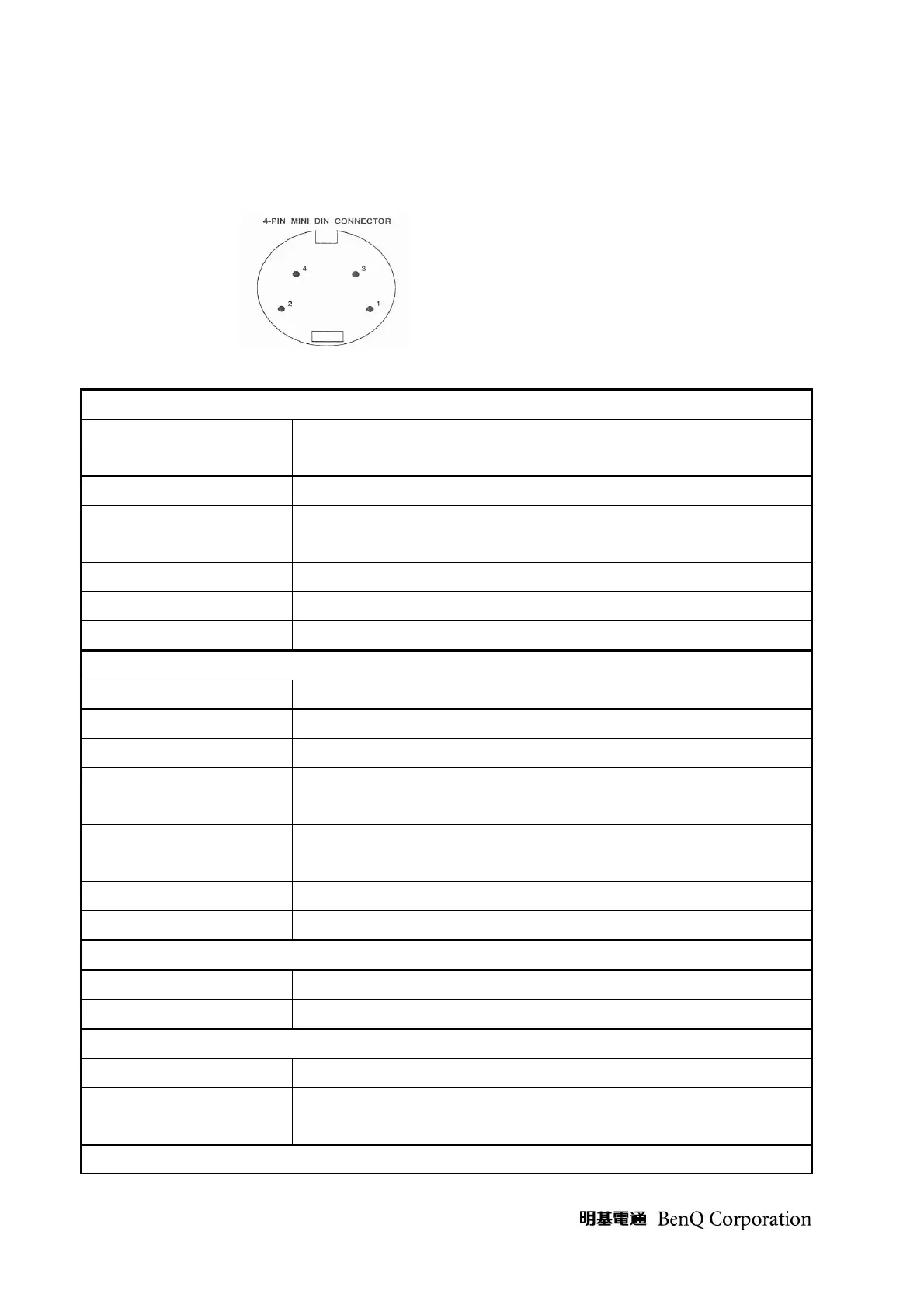

D. Mini DIN CNC 4 Pins for S-video (SCN570S3NS00000), the pin assignment is
described as below:
HDMI
Format
DVI 1.0
Level / Impedance
0.5~3.0Vp-p/100 Ohm (Differential),50 Ohm (Single ending)
TMDS Mode
Single Link
Frequency
Fh = 31~80 kHz
Fv =60~76 Hz
Maximum Pixel Clock
135 MHz
DDC 1/2B
Compliant with Revision 1.0
Connector
HDMI x 1
HD15 PC Signal (RGB)
Format
R, G, B Analog
Level / Impedance
0.7Vp-p / 75Ω
DDC 1/2B Compliant with Revision 1.0
Sync
H/V separate
3V TTL level / 1kΩ
Frequency
Fh = 31~80 kHz
Fv = 56~76 Hz
Maximum Pixel Clock
135 Mhz
Connector
Mini D-Sub 15 pin (female) x 1
Video (Composite) CVBS Signal
Format NTSC-M, PAL(B/G,D/K,I), SECAM (B/G,D/K,L)
Level / Impedance 1.0Vp-p / 75Ω
S-Video (Y/C) Signal
Format Y, C
Level / Impedance Y: 1.0Vp-p / 75Ω
C: ± 286 mV/ 75Ω
Analog HD15 Video Signal (YPbPr/YCbCr)
1: Ground
2: Ground
3: Y
4: C
